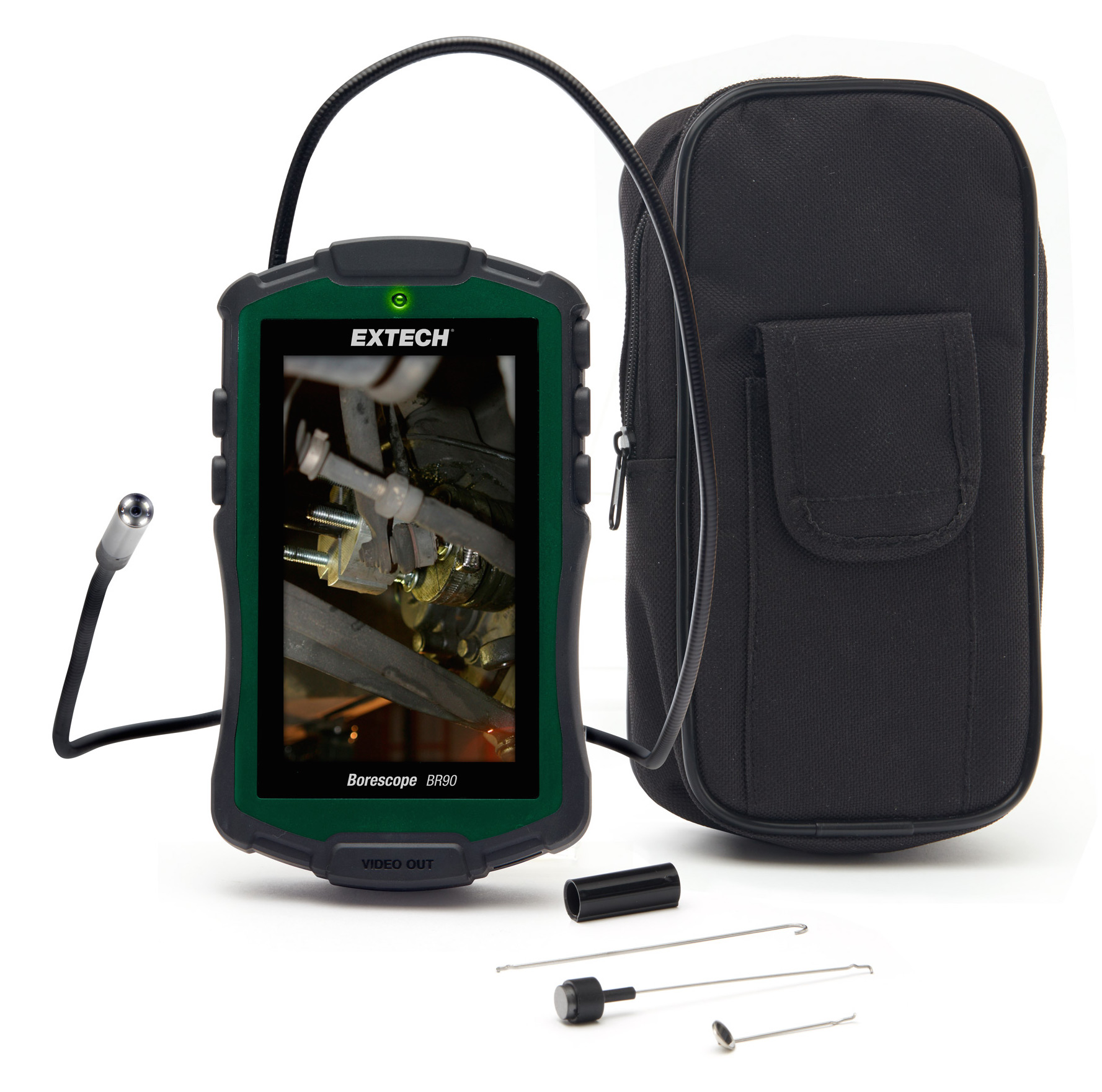

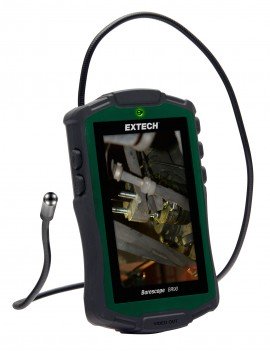

A palm-sized, waterproof (IP67) 8 mm camera probe with a 2.5' flexible goose-neck cable to retain its configured shape. Features a 640 x 480 pixel resolution, 2x digital zoom, and built-in bright LED lamps to help project viewed objects clearly on the large 4.3" color LCD display.
A palm-sized, waterproof (IP67) 8 mm camera probe with a 2.5' flexible goose-neck cable to retain its configured shape. Features a 640 x 480 pixel resolution, 2x digital zoom, and built-in bright LED lamps to help project viewed objects clearly on the large 4.3" color LCD display.
Features
Applications
Ideal for inspecting the interior of pipelines, conduits, and other narrow spaces.
| Camera | |
| Resolution | 640 x 480 pixels |
| Camera Viewing Direction | Viewing angle 50° |
| Focus Distance from Object | ~0.2 to 0.3" (~5 to 8 mm) |
| Minimum Bend Radius | 1" (25 mm) |
| Dimensions | Camera shaft: 0.32" (8 mm) diameter Cable: 0.2" (4.4 mm) diameter/2.5' (77 cm) long |
| Monitor | |
| LCD Screen Type | 4.3" (109 mm) color TFT display |
| Resolution | 640 x 480 pixels |
| Image Zoom Ratio | 1.5x and 2x |
| Video Format | NTSC |
| Dimensions | 7.1 x 3.5 x 1.4" (180 x 89 x 36 mm) |
| Weight | 11.5 oz (325 g) |
| Camera | |
| Resolution | 640 x 480 pixels |
| Camera Viewing Direction | Viewing angle 50° |
| Focus Distance from Object | ~0.2 to 0.3" (~5 to 8 mm) |
| Minimum Bend Radius | 1" (25 mm) |
| Dimensions | Camera shaft: 0.32" (8 mm) diameter Cable: 0.2" (4.4 mm) diameter/2.5' (77 cm) long |
| Monitor | |
| LCD Screen Type | 4.3" (109 mm) color TFT display |
| Resolution | 640 x 480 pixels |
| Image Zoom Ratio | 1.5x and 2x |
| Video Format | NTSC |
| Dimensions | 7.1 x 3.5 x 1.4" (180 x 89 x 36 mm) |
| Weight | 11.5 oz (325 g) |
