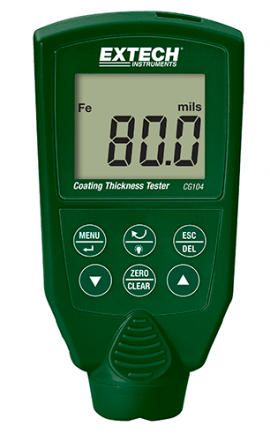

Extech CG104 Coating Thickness Tester

Model: CG104 | UPC: 793950151044

For non-destructive measurements of the thickness of coatings on ferrous and non-ferrous substrates.

For non-destructive measurements of the thickness of coatings on ferrous and non-ferrous substrates.

Your Price $259.00 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your CG104 Coating Thickness Tester

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your CG104 Coating Thickness Tester

EXTECH CG104 Offers

Features

  • Dual technology provides automatic recognition of ferrous (iron and steel) and non-ferrous (copper, aluminum, zinc, bronze, brass, etc) substrates
  • Magnetic induction for ferrous substrates
  • Eddy current measurement for non-ferrous substrates
  • 180° reversible LCD display with LED backlight
  • Substrate zeroing and two-point calibration function
  • Audible high/low limit alarms
  • Record/Recall Min/Max/Average readings
  • Store/recall up to 255 measurements
  • Auto Hold freezes the reading on the display
  • Auto power off and low battery indicator

EXTECH CG104 Specifications

Measuring Range Ferrous: 0 to 2000µm (0 to 80.0mils);
Non-ferrous: 0 to 1000µm (0 to 40.0mils)
Accuracy ±4 dgt. (0 to 7.8mils)/±10 dgt. (0 to 199µm);
±3% (7.9 to 39.0mils)/±3% (200 to 1000µm);
±5% (39.1 to 80.0mils); ±5% (1001 to 2000µm)
Dimensions 4.1 x 2.2 x 1.1" (105 x 55 x 27mm)
Weight 2.8oz (80g)
Click here for complete specifications on the Extech CG104

What's included with the EXTECH CG104

  • Coating Thickness Tester
  • Calibration Standards (one ferrous plate, one non-ferrous plate, and one standard coating plate film)
  • Wrist Strap
  • Soft Carrying Case
  • 2 x AAA Batteries
