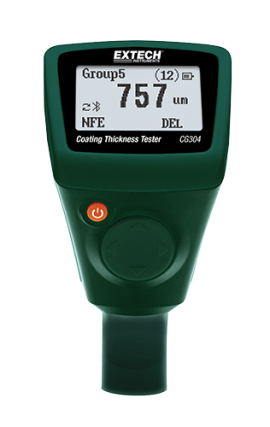

Extech CG304 Coating Thickness Tester with Bluetooth

Model: CG304 | UPC: 793950153048

Coating thickness gauge offers a non-destructive way of measuring the thickness of ferrous and non-ferrous substrates.

Coating thickness gauge offers a non-destructive way of measuring the thickness of ferrous and non-ferrous substrates.

Your Price $339.00 USD
Availability 7 to 8 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your CG304 Coating Thickness Tester with Bluetooth

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your CG304 Coating Thickness Tester with Bluetooth

Recommended Accessories

Extech CG304-REF Calibration References Kit for the CG304-

Extech CG304-REF Calibration References Kit for the CG304

CG304-REF

EXTECH CG304 Offers

Features

  • Dual technology provides automatic recognition of ferrous and non-ferrous substrates
  • Magnetic induction measurement for ferrous substrates
  • Eddy-current measurement for non-ferrous substrates
  • Easy-to use menu system
  • Dot matrix LCD display with backlight and contrast for easy viewing in various lighting conditions
  • Memory stores 2500 readings in 50 groups with 50 readings in each group
  • Zero-point calibration function
  • Bluetooth interface feature wirelessly transmits data to your PC for further analysis and enables you to generate a documented report

Applications

  • Automotive paint thickness to determine if car has been in an accident before
  • Quality inspection and monitoring of the process of anodizing or galvanizing
  • Suitable for paint manufacturers, painting inspectors, painters, and anti-corrosion painting contractors
  • Machine tools manufacturers, pipeline industry, and aeronautical industry

EXTECH CG304 Specifications

Substrate Ferrous Non-Ferrous
Working Principle Magnetic Induction Eddy Current
Measuring Range 0 to 2000µm; 0 to 78.7mils 0 to 2000µm; 0 to 78.7mils
Accuracy ±(2%+2µm); ±3.5% (1000 to 2000µm) ±(2%+2µm); ±3.5% (1000 to 2000µm)
Minimum Curvature Radius 1.5mm (59.06mils) 3mm (118.1mils)
Minimum Diameter 7mm (275.6mils) 5mm (196.9mils)
Minimum Thickness 0.5mm (19.69mils) 0.3mm (11.81mils)
Dimensions 4.7 x 2.4 x 1.25" (120 x 62 x 32mm)
Weight 6.17oz (175g)
Click here for complete specifications on the Extech CG304

What's included with the EXTECH CG304

  • Coating Thickness Tester
  • Steel and Aluminum Substrates
  • Standard Films for Calibration
  • Software
  • Hard Carrying Case
  • 2 1.5V AAA Batteries

Click on a category to view a selection of compatible accessories with the Extech CG304 Coating Thickness Tester with Bluetooth.

Extech CG304-REF Calibration References Kit for the CG304 CG304-REF
Compatible with the CG304 coating thickness tester, this calibration references kit comes with a ferrous plate, a non-ferrous plate, and a film.
