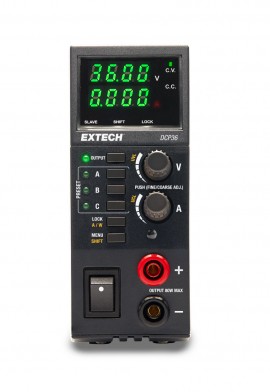

A compact and lightweight power supply that has 80 W constant power topology, auto ranging voltage and current output. It features 4-Digit LED displays, 3-programmable presets, front/rear output terminals, and remote sensing for accurate applied voltage at load point.
A compact and lightweight power supply that has 80 W constant power topology, auto ranging voltage and current output. It features 4-Digit LED displays, 3-programmable presets, front/rear output terminals, and remote sensing for accurate applied voltage at load point.
Features
| Voltage/Current | 0.5 to 36 V/0 to 5 A; Auto-ranging with 80 W maximum output power (E x I = ≤80 W) |
| Accuracy | ±(0.5% + 5 counts) |
| Ripple & Noise | ≤35 mVpp |
| Line Regulation | ≤4 mV/≤10 mA |
| Load Regulation | ≤30 mV/≤10 mA |
| Dimensions | 13 x 5 x 2" (330 x 127 x 53.5 mm) |
| Weight | 4.2 lbs (1.9 kg) |
| Voltage/Current | 0.5 to 36 V/0 to 5 A; Auto-ranging with 80 W maximum output power (E x I = ≤80 W) |
| Accuracy | ±(0.5% + 5 counts) |
| Ripple & Noise | ≤35 mVpp |
| Line Regulation | ≤4 mV/≤10 mA |
| Load Regulation | ≤30 mV/≤10 mA |
| Dimensions | 13 x 5 x 2" (330 x 127 x 53.5 mm) |
| Weight | 4.2 lbs (1.9 kg) |
