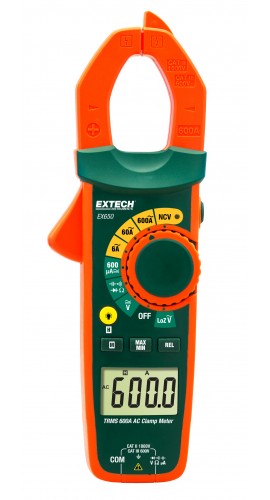

Extech EX650 True RMS AC Clamp Meter with NCV, 600A

Model: EX650 | UPC: 793950396506

Extech EX650 True RMS AC Clamp Meter with NCV, 600A-

Downloads:

More Extech Products

Ask an Expert

Extech EX650 True RMS AC Clamp Meter with NCV, 600A

Model: EX650 | UPC: 793950396506

AC clamp meter with non-contact voltage detector and low impedance. Featuring True RMS that provides accurate readings when measuring distorted or noisy waveforms, as well as a 6000 count backlit LCD display.

AC clamp meter with non-contact voltage detector and low impedance. Featuring True RMS that provides accurate readings when measuring distorted or noisy waveforms, as well as a 6000 count backlit LCD display.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Electrical category for similar products.

Or let's do a search and help you find what you need:

Extech EX650 Offers

Features

  • Functions include AC current, AC/DC voltage, AC/DC micro current, resistance, capacitance, diode test, continuity
  • Built-in non-contact AC voltage detector with LED alert
  • Built-in LED flashlight for working in dimly-lit areas
  • True RMS for accurate AC measurements when measuring distorted or noisy waveforms
  • Low Impedance (LoZ) prevents false reading caused by ghost voltages
  • DC μA multimeter function for HVAC/R flame rod current measurements
  • 6000 count backlit LCD display
  • Data Hold freezes the reading on the display
  • Min/Max captures highest and lowest readings
  • Relative function
  • 1.18" (30mm) jaw size accommodates conductors up to 350MCM
  • Auto Power Off conserves battery life
  • CAT III 600V safety rating

Extech EX650 Specifications

AC Current Range 6A, 60A, 600A
AC/DC µA Current Range 600µA
AC Voltage Range 750V
DC Voltage Range 1000V
Non-contact AC Voltage Range 100 to 1000V
Resistance Range 60MΩ
Capacitance Range 60mF
Dimensions 9 x 3 x 1.6" (229 x 77 x 41mm)
Weight 9.4 oz (265g)
Click here for complete specifications on the Extech EX650

What's included with the Extech EX650

  • AC Clamp Meter/Non-contact Voltage Detector
  • Test Leads
  • 3 x AAA Batteries

Ask a question about Extech EX650 True RMS AC Clamp Meter with NCV, 600A

Customer Reviews for the Extech EX650

Extech EX650 Offers

Features

  • Functions include AC current, AC/DC voltage, AC/DC micro current, resistance, capacitance, diode test, continuity
  • Built-in non-contact AC voltage detector with LED alert
  • Built-in LED flashlight for working in dimly-lit areas
  • True RMS for accurate AC measurements when measuring distorted or noisy waveforms
  • Low Impedance (LoZ) prevents false reading caused by ghost voltages
  • DC μA multimeter function for HVAC/R flame rod current measurements
  • 6000 count backlit LCD display
  • Data Hold freezes the reading on the display
  • Min/Max captures highest and lowest readings
  • Relative function
  • 1.18" (30mm) jaw size accommodates conductors up to 350MCM
  • Auto Power Off conserves battery life
  • CAT III 600V safety rating
Show More...

Extech EX650 Specifications

AC Current Range 6A, 60A, 600A
AC/DC µA Current Range 600µA
AC Voltage Range 750V
DC Voltage Range 1000V
Non-contact AC Voltage Range 100 to 1000V
Resistance Range 60MΩ
Capacitance Range 60mF
Dimensions 9 x 3 x 1.6" (229 x 77 x 41mm)
Weight 9.4 oz (265g)
Click here for complete specifications on the Extech EX650

What's included with the Extech EX650

  • AC Clamp Meter/Non-contact Voltage Detector
  • Test Leads
  • 3 x AAA Batteries

Ask a question about Extech EX650 True RMS AC Clamp Meter with NCV, 600A

Customer Reviews for the Extech EX650
