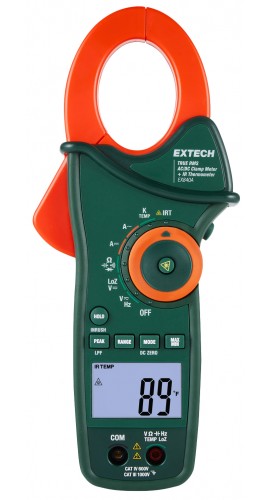

Ergonomically designed with a double-molded housing, this True RMS AC/DC clamp meter, with a CAT IV-600 V rating, provides a better grip for one-hand operation. Additionally, this meter includes a built-in infrared thermometer and laser pointer for non-contact temperature surface measurements.
Ergonomically designed with a double-molded housing, this True RMS AC/DC clamp meter, with a CAT IV-600 V rating, provides a better grip for one-hand operation. Additionally, this meter includes a built-in infrared thermometer and laser pointer for non-contact temperature surface measurements.
The EX8xxA Series is packed with advanced features, such as Low Impedance Mode (LoZ) to prevent false readings from ghost voltages and a Low Pass Filter for precise measurements in electrically noisy equipment. These meters also include an inrush current feature to capture start-up current.
Ideal for electricians, electrical contractors, and plant maintenance professionals.
Features
Applications
| Type | AC/DC |
| True Rms | Yes |
| Display Counts | 6000 |
| Current | AC: 0.1 to 1000 A DC: 0.1 to 1000 A Basic ACA Accuracy: ±(2.5% + 8d) |
| Voltage | AC: 0.1 mV to 1000 V DC: 0.1 mV to 1000 V |
| Resistance | 0.1 Ω to 60 MΩ |
| Capacitance | 0.001 nF to 40 mF |
| Frequency | 0.001 Hz to 100 kHz |
| Temperature | Type K: -4 to 1400°F (-20 to 760°C) Infrared: -58 to 518°F (-50 to 270°C) Operating: 32 to 122°F (0 to 50°C) |
| Distance to Spot Ratio | 8:1 |
| Peak Hold | Yes |
| Inrush | Yes |
| LoZ | Yes |
| Low Pass Filter | Yes |
| Safety Category | CAT IV-600 V |
| Dimensions | 10.5 × 4.3 × 2" (270 × 110 × 50 mm) Jaw size: 1.7" (43 mm) |
| Weight | 14 oz (396 g) |
