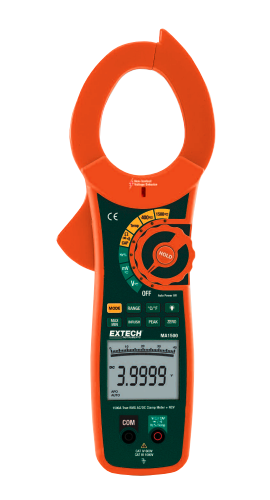

Extech MA1500 True RMS AC/DC Clamp Meter with NCV and type K temperature, 1500 A

Model: MA1500 | UPC: 793950315002

Extech MA1500 True RMS AC/DC Clamp Meter with NCV and type K temperature, 1500 A-

Downloads: datasheet manual

More Extech Products

Ask an Expert

Extech MA1500 True RMS AC/DC Clamp Meter with NCV and type K temperature, 1500 A

Model: MA1500 | UPC: 793950315002

Designed for accurate readings of non-sinusoidal waveforms, this 1500A TRMS AC/DC clamp meter features TRMS AC/DC clamp meter features 2" (52 mm) jaw size for conductors up to 500MCM. In addition, it has an Integrated Non-Contact Voltage Detector.

Designed for accurate readings of non-sinusoidal waveforms, this 1500A TRMS AC/DC clamp meter features TRMS AC/DC clamp meter features 2" (52 mm) jaw size for conductors up to 500MCM. In addition, it has an Integrated Non-Contact Voltage Detector.

Your Price $249.00 USD
Availability 4 to 5 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your MA1500 True RMS AC/DC Clamp Meter with NCV and type K temperature

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your MA1500 True RMS AC/DC Clamp Meter with NCV and type K temperature

Extech MA1500 Offers

The MA1500 is a 1500A True RMS AC/DC Clamp Meter. 2.0 in. (52mm) jaw size for conductors up to 500MCM with True RMS for accurate readings of non-sinusoidal waveforms.

Features

  • Functions include AC/DC current, AC/DC voltage, resistance, frequency, capacitance, diode test and continuity
  • Built-in Type K thermometer for contact surface temperature measurements
  • Built-in non-contact AC voltage detector with LED alert
  • Built-in LED flashlight for working in dimly-lit areas
  • True RMS for accurate AC measurements of non-sinusoidal waveforms
  • Inrush function captures transients during motor startups
  • Dual 40,000/4000 count backlit LCD display
  • Data Hold and Peak Hold
  • Min/Max captures highest and lowest readings
  • Relative Mode for capacitance zero and offset adjustment
  • 2.0" (52mm) jaw size for conductors up to 500MCM
  • Auto Power Off conserves battery life
  • CAT IV 600V safety rating
  • AC/DC Current Measurements
  • Resistance Measurements
  • Non-Contact AC Voltage Detection
  • AC/DC Voltage Measurements
  • Continuity Test
  • Diode Test

Extech MA1500 Specifications

AC/DC Current Range 400.00A, 1500.0A
AC Voltage Range 400.00mV, 4.000V, 40.00V, 750.0V
DC Voltage Range 400.00mV, 4.0000V, 40.000V, 1000.0V
Resistance Range 400.00Ω, 4.0000kΩ, 40.000kΩ, 400.00kΩ, 4.0000ΜΩ, 40.000MΩ
Capacitance Range 400.00nF, 4000nF, 40.00µF, 400.0µF, 4.000mF, 20.00mF, 40.00mF
Frequency Range 40Hz to 40MHz
Type K Temperature Range -148 to 1832°F ((-100 to 1000°C)
Dimensions 11.57 x 4.13 x 1.85" (294 x 105 x 47mm)
Weight 18.9oz (536g)
Click here for complete specifications on the Extech MA1500

What's included with the Extech MA1500

  • TRMS AC/DC Clamp Meter/Non-contact Voltage Detector
  • Test Leads
  • Type K Bead Wire Temperature Probe
  • Carrying Case
  • 1 x 9V Battery
datasheet for the Extech MA1500 True RMS AC/DC Clamp Meter with NCV and type K temperature, 1500 A manual for the Extech MA1500 True RMS AC/DC Clamp Meter with NCV and type K temperature, 1500 A

Ask a question about Extech MA1500 True RMS AC/DC Clamp Meter with NCV and type K temperature, 1500 A

Customer Reviews for the Extech MA1500

Extech MA1500 Offers

The MA1500 is a 1500A True RMS AC/DC Clamp Meter. 2.0 in. (52mm) jaw size for conductors up to 500MCM with True RMS for accurate readings of non-sinusoidal waveforms.

Features

  • Functions include AC/DC current, AC/DC voltage, resistance, frequency, capacitance, diode test and continuity
  • Built-in Type K thermometer for contact surface temperature measurements
  • Built-in non-contact AC voltage detector with LED alert
  • Built-in LED flashlight for working in dimly-lit areas
  • True RMS for accurate AC measurements of non-sinusoidal waveforms
  • Inrush function captures transients during motor startups
  • Dual 40,000/4000 count backlit LCD display
  • Data Hold and Peak Hold
  • Min/Max captures highest and lowest readings
  • Relative Mode for capacitance zero and offset adjustment
  • 2.0" (52mm) jaw size for conductors up to 500MCM
  • Auto Power Off conserves battery life
  • CAT IV 600V safety rating
  • AC/DC Current Measurements
  • Resistance Measurements
  • Non-Contact AC Voltage Detection
  • AC/DC Voltage Measurements
  • Continuity Test
  • Diode Test
Show More...

Extech MA1500 Specifications

AC/DC Current Range 400.00A, 1500.0A
AC Voltage Range 400.00mV, 4.000V, 40.00V, 750.0V
DC Voltage Range 400.00mV, 4.0000V, 40.000V, 1000.0V
Resistance Range 400.00Ω, 4.0000kΩ, 40.000kΩ, 400.00kΩ, 4.0000ΜΩ, 40.000MΩ
Capacitance Range 400.00nF, 4000nF, 40.00µF, 400.0µF, 4.000mF, 20.00mF, 40.00mF
Frequency Range 40Hz to 40MHz
Type K Temperature Range -148 to 1832°F ((-100 to 1000°C)
Dimensions 11.57 x 4.13 x 1.85" (294 x 105 x 47mm)
Weight 18.9oz (536g)
Click here for complete specifications on the Extech MA1500

What's included with the Extech MA1500

  • TRMS AC/DC Clamp Meter/Non-contact Voltage Detector
  • Test Leads
  • Type K Bead Wire Temperature Probe
  • Carrying Case
  • 1 x 9V Battery
datasheet for the Extech MA1500 True RMS AC/DC Clamp Meter with NCV and type K temperature, 1500 A manual for the Extech MA1500 True RMS AC/DC Clamp Meter with NCV and type K temperature, 1500 A

Ask a question about Extech MA1500 True RMS AC/DC Clamp Meter with NCV and type K temperature, 1500 A

Customer Reviews for the Extech MA1500
