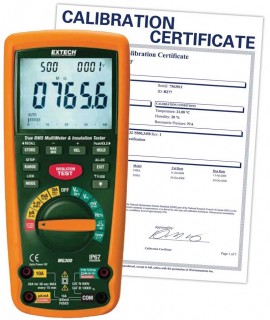

Extech MG300-NIST True RMS Wireless Multimeter/Insulation Tester, 4000M½, includes Traceable Calibration Certificate

Model: MG300-NIST | UPC: 793950380239

Extech MG300-NIST True RMS Wireless Multimeter/Insulation Tester, 4000M½, -

Downloads:

More Extech Products

Ask an Expert

Extech MG300-NIST True RMS Wireless Multimeter/Insulation Tester, 4000M½, includes Traceable Calibration Certificate

Model: MG300-NIST | UPC: 793950380239

13 Function Multimeter/1000V Insulation Tester with Wireless PC interface (915MHz). This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

13 Function Multimeter/1000V Insulation Tester with Wireless PC interface (915MHz). This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Extech MG320-NIST CAT IV Insulation Tester/TRMS Multimeter, 20 GΩ,-

Extech MG320-NIST CAT IV Insulation Tester/TRMS Multimeter, 20 GΩ, includes Traceable Calibration Certificate

Model: MG320-NIST

Test insulation and check the voltage with this instrument that combines a CAT IV Insulation Tester and a 20 GΩ True RMS Multimeter. Complete with PI/DAR modes, a programmable timer, and a comparator for custom test configurations, this multimeter is versatile and provides quick insulation test results.

Learn More

Extech MG300-NIST Offers

This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Features

  • True RMS measurements for accurate readings of noisy, distorted or non-sinusoidal waveforms
  • 13 multimeter functions AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature and diode/continuity
  • 125V, 250V, 500V, and 1000V test voltages
  • Insulation resistance measurements up to 4GΩ
  • Duty cycle measurements and milliamp readings for analog 4-20mA current loops
  • USB interface (915MHz) for the ability to monitor real-time readings on a laptop or computer from up to 30 feet away and wireless data recording for safer troubleshooting and maintenance
  • Auto discharge of capacitive voltage
  • Backlit super large triple display
  • Min/Max and Relative mode
  • Data Hold and auto power off
  • Waterproof (IP67) rugged double-molded design
  • Lock power on function for hands-free operation
  • CAT IV 600V safety rating

Extech MG300-NIST Specifications

Insulation Test Voltages 125V, 250V, 500V, 1000V
Insulation Resistance Range 4MΩ, 40MΩ, 400MΩ, 4000MΩ
AC/DC Voltage Range 1000V
AC/DC Current Range 10A
Resistance Range 40MΩ
Capacitance Range 40mF
Frequency Range 100MHz
Duty Cycle Range 0.1 to 99.9%
Temperature Range -58 to 2192°F (-50 to 1200°C)
Dimensions 7.8 x 3.6 x 1.9" (200 x 92 x 50mm)
Weight 20.5oz (582g)
Click here for complete specifications on the Extech MG300-NIST

What's included with the Extech MG300-NIST

  • Multimeter/Insulation Tester
  • NIST Certificate with full Data and Uncertainties (includes full Data & Uncertainties)
  • Heavy Duty Test Leads
  • Alligator Clip Test Lead
  • Type K Bead Wire Temperature Probe with Adapter
  • Remote Receiver with USB Cable
  • Windows® Compatible Software
  • Carrying Case
  • 6 x AA Batteries

Ask a question about Extech MG300-NIST True RMS Wireless Multimeter/Insulation Tester, 4000M½,

Customer Reviews for the Extech MG300-NIST

Extech MG300-NIST Offers

This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Features

  • True RMS measurements for accurate readings of noisy, distorted or non-sinusoidal waveforms
  • 13 multimeter functions AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature and diode/continuity
  • 125V, 250V, 500V, and 1000V test voltages
  • Insulation resistance measurements up to 4GΩ
  • Duty cycle measurements and milliamp readings for analog 4-20mA current loops
  • USB interface (915MHz) for the ability to monitor real-time readings on a laptop or computer from up to 30 feet away and wireless data recording for safer troubleshooting and maintenance
  • Auto discharge of capacitive voltage
  • Backlit super large triple display
  • Min/Max and Relative mode
  • Data Hold and auto power off
  • Waterproof (IP67) rugged double-molded design
  • Lock power on function for hands-free operation
  • CAT IV 600V safety rating
Show More...

Extech MG300-NIST Specifications

Insulation Test Voltages 125V, 250V, 500V, 1000V
Insulation Resistance Range 4MΩ, 40MΩ, 400MΩ, 4000MΩ
AC/DC Voltage Range 1000V
AC/DC Current Range 10A
Resistance Range 40MΩ
Capacitance Range 40mF
Frequency Range 100MHz
Duty Cycle Range 0.1 to 99.9%
Temperature Range -58 to 2192°F (-50 to 1200°C)
Dimensions 7.8 x 3.6 x 1.9" (200 x 92 x 50mm)
Weight 20.5oz (582g)
Click here for complete specifications on the Extech MG300-NIST

What's included with the Extech MG300-NIST

  • Multimeter/Insulation Tester
  • NIST Certificate with full Data and Uncertainties (includes full Data & Uncertainties)
  • Heavy Duty Test Leads
  • Alligator Clip Test Lead
  • Type K Bead Wire Temperature Probe with Adapter
  • Remote Receiver with USB Cable
  • Windows® Compatible Software
  • Carrying Case
  • 6 x AA Batteries

Ask a question about Extech MG300-NIST True RMS Wireless Multimeter/Insulation Tester, 4000M½,

Customer Reviews for the Extech MG300-NIST
