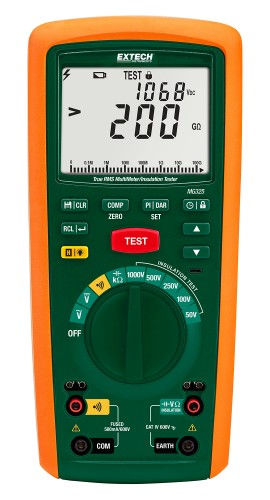

This high range insulation tester is combined with a full-featured true RMS multimeter, all in one compact unit. No need to carry around multiple tools to get the job done. Measures up to 5.5GΩ in insulation resistance.
This high range insulation tester is combined with a full-featured true RMS multimeter, all in one compact unit. No need to carry around multiple tools to get the job done. Measures up to 5.5GΩ in insulation resistance.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
Extech MG325 Offers
Features
Applications
| Range | Resolution | Basic Accuracy | |
| Insulation Resistance | 50MΩ, 100MΩ, 200MΩ,500MΩ, 2000MΩ 1GΩ, 10GΩ, 20GΩ, 50GΩ, 100GΩ, 200GΩ | 0.001MΩ | ±(3%+3d) |
| Insulation Test Voltages | 50V, 100V, 250V, 500V, 1000V | 0 to 20% | |
| AC/DC Voltage | 600V | 0.01V | AC: ±(1.5%+5d)/ DC: ±(2%+3d) |
| Leakage Current | 2000µA | 10µA | ±(10%+3d) |
| Resistance | 10MΩ | 0.01kΩ | ±(3%+3d) |
| Low Resistance | 100Ω | 0.01Ω | ±(1.5%+5d) |
| Capacitance | 500µF | 0.1nF | ±(5%+5d) |
| Frequency | 1kHZ | 0.1HZ | ±(0.1%+3d) |
| Continuity (audible) | Yes | ||
| Dimensions/ Weight | 8.9 x 4.1 x 2.3" (225 x 103 x 59mm)/ 1.5lbs (0.7kg) |
| Range | Resolution | Basic Accuracy | |
| Insulation Resistance | 50MΩ, 100MΩ, 200MΩ,500MΩ, 2000MΩ 1GΩ, 10GΩ, 20GΩ, 50GΩ, 100GΩ, 200GΩ | 0.001MΩ | ±(3%+3d) |
| Insulation Test Voltages | 50V, 100V, 250V, 500V, 1000V | 0 to 20% | |
| AC/DC Voltage | 600V | 0.01V | AC: ±(1.5%+5d)/ DC: ±(2%+3d) |
| Leakage Current | 2000µA | 10µA | ±(10%+3d) |
| Resistance | 10MΩ | 0.01kΩ | ±(3%+3d) |
| Low Resistance | 100Ω | 0.01Ω | ±(1.5%+5d) |
| Capacitance | 500µF | 0.1nF | ±(5%+5d) |
| Frequency | 1kHZ | 0.1HZ | ±(0.1%+3d) |
| Continuity (audible) | Yes | ||
| Dimensions/ Weight | 8.9 x 4.1 x 2.3" (225 x 103 x 59mm)/ 1.5lbs (0.7kg) |
