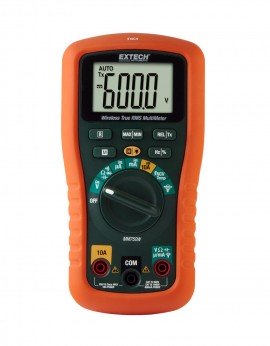

Extech MM750W-NIST Wireless Data Logging True RMS Multimeter, includes Traceable Calibration Certificate

Model: MM750W-NIST

Extech MM750W-NIST Wireless Data Logging True RMS Multimeter, -

Downloads:

More Extech Products

Ask an Expert

Extech MM750W-NIST Wireless Data Logging True RMS Multimeter, includes Traceable Calibration Certificate

Model: MM750W-NIST

Featuring a fully loaded rugged wireless data logging multimeter with 14 functions including non-contact AC voltage detection and Type K temperature measurement. Using the wireless feature, Bluetooth® Datalogging Module, and the ExView® W-Series App, you can transmit readings in real-time to your smart devices. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Featuring a fully loaded rugged wireless data logging multimeter with 14 functions including non-contact AC voltage detection and Type K temperature measurement. Using the wireless feature, Bluetooth® Datalogging Module, and the ExView® W-Series App, you can transmit readings in real-time to your smart devices. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Your Price $350.89 USD
Availability 2 to 3 Weeks
Quantity

Extech MM750W-NIST Offers

This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Features

  • Wireless DMM function with Bluetooth® Datalogging Module transmits readings to iOS® and Android™ devices for remote viewing using the free app
  • True RMS for accurate AC measurements
  • Type K Temperature function
  • 6000 count backlit LCD display
  • ±0.6% basic DCV accuracy
  • Built-in non-contact AC Voltage Detector (NCV)
  • AC μA function ideal for HVAC/R flame rod current measurement
  • External clamp adapter input (1 mV=1 A; 600 A AC/DC max)
  • MIN/MAX/DIF captures highest and lowest readings and the difference between them
  • Relative Mode for Capacitance Zero and offset adjustment
  • Data Hold freezes the reading on the display
  • Auto Power Off with disable and low battery indicator
  • CAT IV-600V, CAT III-1000V safety category

Wireless Datalogging Features

  • Bluetooth® Datalogging Module (DAT12) can record over 15k readings and transmit them to a smart device
  • Free ExView® W-Series App, provides Wireless Data Streaming with real-time remote viewing of readings
  • Adjustable sample rate and file size support most application needs
  • Programmable High/Low audible alarms
  • Color coded log reporting for easy identification of Alarm events
  • Record data directly to phone or tablet
  • Export data in Excel® format
  • Share data files and snapshots directly from application
  • Take snapshots of the measurement area with your connected smart phone or tablet camera to capture measurement-related images and to document date/time stamps and measurement data

Applications

  • Electrical

Download the App

Extech MM750W-NIST Specifications

Non-Contact Voltage (NCV) >100 VAC
AC Voltage Range: 0.1 mV to 1000 V
Max Resolution: 0.1 mV
Basic Accuracy: ±0.6% of rdg ±3 digits
DC Voltage Range: 0.1 mV to 1000 V
Max Resolution: 0.1 mV
Basic Accuracy: ±0.6% of rdg ±2 digits
AC Current Range: 0.1 μA to 10.00 A
Max Resolution: 0.1 μA
Basic Accuracy: ±0.15% of rdg ±5 digits
DC Current Range: 0.1 μA to 10.00 A
Max Resolution: 0.1 μA
Basic Accuracy: ±0.12% of rdg ±5 digits
AC μA Current Range: 0.1 to 6000 μA
Max Resolution: 0.1 μA
Basic Accuracy: ±0.15% of rdg ±5 digits
DC μA Current Range: 0.1 to 6000 μA
Max Resolution: 0.1 μA
Basic Accuracy: ±0.12% of rdg ±5 digits
Resistance Range: 0.1 Ω to 60.00 MΩ
Max Resolution: 0.1 Ω
Basic Accuracy: ±0.6% of rdg ±2 digits
Capacitance Range: 9.999 nF to 99.99 mF
Max Resolution: 0.001 nF
Basic Accuracy: ±5% of rdg ±5 digits
Frequency Range: 9.999 Hz to 55.00 MHz
Max Resolution: 0.001 MHz
Basic Accuracy: ±1.5% of rdg ±3 digits
Temperature (Type K) Range: -40 to 1832°F (-40 to 1000°C)
Max Resolution: 1°
Basic Accuracy: ±(2%+2°F) / ±(2%+2°C)
Duty Cycle Range: 0.1 to 99.9%
Max Resolution: 0.1%
Basic Accuracy: ±1.2% of rdg ±2 digits
Diode Test Range: 3.000 V
Max Resolution: 0.001 V
Basic Accuracy: ±10% of rdg ±5 digits
Continuity Audible
Data Logging 15,360 data points (with DAT12)
Dimensions 7.4 x 3.8 x 2.2" (188 x 96 x 56 mm)
Weight 14.6 oz (415 g) without battery
Click here for complete specifications on the Extech MM750W-NIST

What's included with the Extech MM750W-NIST

  • True RMS Multimeter
  • Traceable Calibration Certificate with full Data and Uncertainties
  • Test Leads
  • General Purpose Type K Bead Wire Temperature Probe
  • Wireless Data Logging Module
  • 9 V Battery
  • Soft Carrying Case
