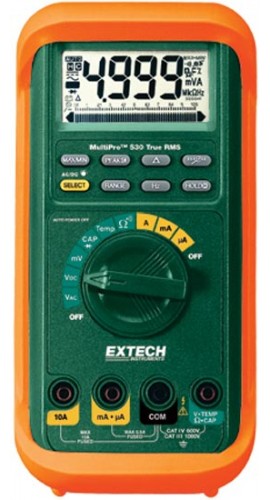

Extech MP530A MultiPro TRMS Multimeter with RS-232 Interface and Temperature Function

Model: MP530A | UPC: 793950385319

Extech MP530A MultiPro TRMS Multimeter with RS-232 Interface and Temperature Function-

Downloads:

More Extech Products

Ask an Expert

Extech MP530A MultiPro TRMS Multimeter with RS-232 Interface and Temperature Function

Model: MP530A | UPC: 793950385319

This high performance multimeter features a diode test, continuity check, resistance, temperature, capacitance and frequency measurements.

This high performance multimeter features a diode test, continuity check, resistance, temperature, capacitance and frequency measurements.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

FLIR DM93-2 True RMS Industrial Multimeter with VFD Mode & Bluetooth, 1000V-

FLIR DM93-2 True RMS Industrial Multimeter with VFD Mode & Bluetooth, 1000V

Model: DM93-2

The DM93-2 Digital Multimeter with advanced VFD filtering helps you accurately analyze non-sinusoidal waveforms and noisy signals. METERLiNK® allows you to wirelessly communicate with your Thermal Camera.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Recommended Accessories

Extech TL803 General Purpose Test Leads-

Extech TL803 General Purpose Test Leads

TL803

Extech TL809 Electronic Test Lead Kit-

Extech TL809 Electronic Test Lead Kit

TL809

Extech TL810 Electrical Test Lead Kit-

Extech TL810 Electrical Test Lead Kit

TL810

Extech TL831 Master Electrical Test Lead Kit-

Extech TL831 Master Electrical Test Lead Kit

TL831

Extech MP530A Offers

Features

  • High basic DC Voltage accuracy of 0.08%
  • Wide AC Voltage bandwidth of 40Hz to 20kHz
  • Rugged design with protective holster and water resistant housing
  • Backlit 5000 count LCD display for high resolution (0.01mV, 0.1µA, 0.01Ohm, 0.01nF, 0.001Hz)
  • Multimeter functions: True RMS AC/DC Voltage and Current, Resistance, Frequency, Capacitance, Diode and Continuity
  • Temperature function: -58 to 1832°F (-50 to 1000°C )
  • Smart auto power off, Hold and low resistance auto-lead zero
  • Optional Windows® compatible PC communication software and optically isolated cable
  • True RMS measurements for AC Voltage and Current
  • °F/°C Temperature function
  • Analog bargraph Zoom provides 5x resolution to detect small signals (updates 60/sec)
  • Wide AC Voltage bandwidth of 40Hz to 20kHz

Applications

  • Wide bandwidth for audio frequency and digital electronic production test and repair

Extech MP530A Specifications

DC/AC Voltage Range 50mV, 500mV, 5V, 50V, 500V, 1000V
DC/AC Voltage Max.Resolution 0.01mV
DC/AC Voltage Basic Accuracy (%rdg+digits) ±(0.08%+2d) DC, ±(0.8%+3d) AC
DC/AC Current Range 500μA, 5000μA, 50mA, 500mA, 5A, 10A
DC/AC Current Max. Resolution 0.1μA
DC/AC Current Basic Accuracy (%rdg+digits) ±(0.2%+4d) DC, ±(0.8%+4d) AC
Resistance Range 50, 500, 5k, 50k, 500k, 5M, 50MΩ
Resistance Max. Resolution 0.01nF
Capacitance Basic Accuracy (%rdg+digits) ±(0.8%+3d)
Frequency Range 5Hz to 125kHz
Frequency Max. Resolution 0.001Hz
Frequency Basic Accuracy ±(0.01%+2d)
Temperature Range -58 to 1832°F (-50 to 1000°C )
Dimensions 7.32 x 3.42 x 1.39" (186 x 87x 35.5mm)
Weight 0.75lb (340g)
Click here for complete specifications on the Extech MP530A

What's included with the Extech MP530A

  • Built-In Stand
  • CAT IV Test Leads
  • Protective Holster
  • 9V Battery
  • General Purpose Temperature Probe

Click on a category to view a selection of compatible accessories with the Extech MP530A MultiPro TRMS Multimeter with RS-232 Interface and Temperature Function.

Extech TP873 Bead Wire Type K Temperature Probe, -30 to 300° TP873
Type K temperature probe with mini connector and banana plug adaptor.



Extech TL803 General Purpose Test Leads TL803
The Extech TL803 Standard Test Leads have protective tip covers for safety during storage. Standard replacement test leads with shrouded banana connectors and molded strain reliefs. Compatible with most multimeters. The Extech TL803 Standard Test Leads have a 10A capacity and are rated at CAT III-1000V and are UL Listed.



Extech TL809 Electronic Test Lead Kit TL809
8-piece test lead kit ideal for the testing of digital circuitry.



Extech TL810 Electrical Test Lead Kit TL810
This 8-piece double insulated test lead kit is ideal for electrical applications.



Extech TL831 Master Electrical Test Lead Kit TL831
12-piece kit industrial grade test leads.



Extech TL841 Test Lead Kit TL841
16-piece kit with multiple test lead tip configuration.



Ask a question about Extech MP530A MultiPro TRMS Multimeter with RS-232 Interface and Temperature Function

Customer Reviews for the Extech MP530A
