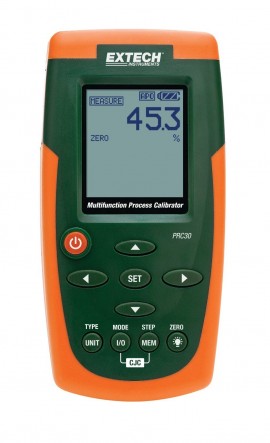

Extech PRC30 Multifunction Process Calibrator

Model: PRC30 | UPC: 793950710319

Calibrator provides precision sourcing and measurements for thermocouples (eight types), current (mA), and voltage (mV and V) devices.

Calibrator provides precision sourcing and measurements for thermocouples (eight types), current (mA), and voltage (mV and V) devices.

Your Price $679.00 USD
Availability 5 Days
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your PRC30 Multifunction Process Calibrator

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your PRC30 Multifunction Process Calibrator

Extech PRC30 Offers

Features

  • 0 to 24mA (-25 to 125%) readout
  • 24V DC power source for 2-wire current loop
  • 0 to 20V DC calibration source
  • Source and measure 8 thermocouple type devices (J, K, T, E, C, R, S and N)
  • CJC - Cold Junction Compensation function
  • Up to five user adjustable calibration presets
  • Palm-sized double molded housing and large dot-matrix backlit LCD
  • High accuracy calibration function simulates precision thermocouple outputs for use in calibrating thermometers, transmitters, controllers or recorders
  • Displays output in terms of millivolts or temperature based on thermocouple tables
  • Zero adjustment, auto zero when power on and change mode
  • Standard banana I/O ports and mini thermocouple connector
  • Large battery bank for extended work cycle
  • External power adapter for continuous work cycle

Applications

  • Lab Field Calibration
  • Engineering Research and Design
  • HVAC/R
  • Temperature Control Process Troubleshooting

Extech PRC30 Specifications

DC Source
Current 0 to 24mA, -25% to +125%
Max. Load 1000Ω @ 24mA
Voltage 0 to 2000mV, 0 to 20V
mV/Temp -5 to 55mV
Type J Range -58 to 1832°F (-50 to 1000°C)
Type K Range -58 to 2498°F (-50 to 1370°C)
Type T Range -184 to 752°F (-120 to 400°C)
Type E Range -58 to 1382°F (-50 to 750°C)
Type C, R, S Range 32 to 3182°F (0 to 1750°C)
Type N Range -58 to 2372°F (-50 to 1300°C)
Click here for complete specifications on the Extech PRC30

What's included with the Extech PRC30

  • Test Leads
  • Alligator Clips
  • Calibration Cables
  • 100V-240V AC Adaptor with 4 Plugs
  • Hard Carrying Case
  • 6 x AA Batteries
