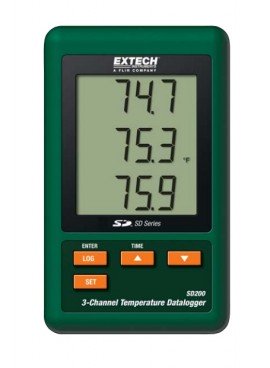

Extech SD200 3-Channel Temperature Data Logger

Model: SD200 | UPC: 793950432006

Extech SD200 3-Channel Temperature Data Logger-

Downloads:

More Extech Products

Ask an Expert

Extech SD200 3-Channel Temperature Data Logger

Model: SD200 | UPC: 793950432006

LCD simultaneously displays three Type-K thermocouple temperature channels and records data with date/time stamps to an expandable SD memory card.

LCD simultaneously displays three Type-K thermocouple temperature channels and records data with date/time stamps to an expandable SD memory card.

Your Price $334.00 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your SD200 3-Channel Temperature Data Logger

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your SD200 3-Channel Temperature Data Logger

Recommended Accessories

Extech 881616 Magnetized Type K Surface Probe, -40 to 250°C-

Extech 881616 Magnetized Type K Surface Probe, -40 to 250°C

881616

Extech 881605 General Purpose Type K Temperature Probe with mini connector, -328 to 1292°F-

Extech 881605 General Purpose Type K Temperature Probe with mini connector, -328 to 1292°F

881605

Extech TP882 Type K Penetration Probe, -46 to 538°C-

Extech TP882 Type K Penetration Probe, -46 to 538°C

TP882

Extech TP875 Bead Wire Type K Temperature Probe, -50 to 538°C-

Extech TP875 Bead Wire Type K Temperature Probe, -50 to 538°C

TP875

Extech TP870 Bead Wire Type K Temperature Probe, -40 to 250°C-

Extech TP870 Bead Wire Type K Temperature Probe, -40 to 250°C

TP870

Extech SD200 Offers

The SD200 is a 3-Channel Temperature Datalogger. Records data on an SD card in Excel format. Selectable data sampling rate of 5, 10, 30, 60, 120, 300, 600 seconds or Automatic.

Features

  • Triple LCD simultaneously displays 3 Type-K Temperature channels
  • Datalogger stores readings on an SD card in Excel® format for easy transfer to a PC
  • Selectable data sampling rate: 5, 10, 30, 60, 120, 300, 600 seconds or Auto

Applications

  • Shipment Monitoring
  • Agriculture
  • Laboratory
  • Manufacturing
  • Environmental

Extech SD200 Specifications

RangeResolutionAccuracy (%rdg+digits)
Temperature-58 to 2372°F -100 to 1300°C0.1°F/°C±(0.5% + 1°F) ±(0.5% + 0.5°C)
Memory2000K data using 2G SD memory card
Dimensions5.2 x 3.1 x 1.3" (132 x 80 x 32mm)
Weight9.9oz (282g)
Click here for complete specifications on the Extech SD200

What's included with the Extech SD200

  • 6x AAA Batteries
  • SD Memory Card
  • Universal AC Adaptor
  • 3x Type-K Bead Wire Temperature Probes
  • Mounting Bracket

Click on a category to view a selection of compatible accessories with the Extech SD200 3-Channel Temperature Data Logger.

Extech 881616 Magnetized Type K Surface Probe, -40 to 250°C 881616
Features a probe surface area 1" x 0.75" and an 6ft teflon cable with strain relief. Includes replacement temperature element.



Extech 881603 Type K Immersion Temperature Probe, -40 to 800°C 881603
Type K high temperature probe with mini connector.



Extech 871515 General Purpose Type K Temperature Probe, -40 to 700°C 871515
High temperature stainless steel probe with mini connector.



Extech 881605 General Purpose Type K Temperature Probe with mini connector, -328 to 1292°F 881605
Suitable for any meter with a type k connector, this general-purpose temperature probe features a temperature range of -328 to 1292°F (-200 to 700°C).



Extech 881602 Type K Surface Temperature Probe, -40 to 500°C 881602
Type K high temperature probe with mini connector. Compatible with most Multimeter that have Type K temperature function.



Extech TP882 Type K Penetration Probe, -46 to 538°C TP882
Type K high temperature probe with mini connector.



Extech TP875 Bead Wire Type K Temperature Probe, -50 to 538°C TP875
Type K high temperature probe with mini connector and banana plug adaptor.



Extech TP870 Bead Wire Type K Temperature Probe, -40 to 250°C TP870
Type K temperature probe with mini connector.



Extech TP200 Type K Pipe Clamp Temperature Probe, -4 to 200°F TP200
Takes hands-free superheat/subcooling temperature measurements. The spring-loaded jaw is for a secure grip on pipes from 0.25 inches (6.35mm) to 1.5 inches (38mm) in diameter.



Extech TP400 High Temperature Type K Pipe Clamp, -4 to 450°F TP400
Takes hands-free superheat/subcooling temperature measurements. The spring-loaded jaw is for a secure grip on pipes from 0.25 inches (6.35mm) to 1.5 inches (38mm) in diameter.



Ask a question about Extech SD200 3-Channel Temperature Data Logger

Customer Reviews for the Extech SD200

Extech SD200 Offers

The SD200 is a 3-Channel Temperature Datalogger. Records data on an SD card in Excel format. Selectable data sampling rate of 5, 10, 30, 60, 120, 300, 600 seconds or Automatic.

Features

  • Triple LCD simultaneously displays 3 Type-K Temperature channels
  • Datalogger stores readings on an SD card in Excel® format for easy transfer to a PC
  • Selectable data sampling rate: 5, 10, 30, 60, 120, 300, 600 seconds or Auto

Applications

  • Shipment Monitoring
  • Agriculture
  • Laboratory
  • Manufacturing
  • Environmental
Show More...

Extech SD200 Specifications

RangeResolutionAccuracy (%rdg+digits)
Temperature-58 to 2372°F -100 to 1300°C0.1°F/°C±(0.5% + 1°F) ±(0.5% + 0.5°C)
Memory2000K data using 2G SD memory card
Dimensions5.2 x 3.1 x 1.3" (132 x 80 x 32mm)
Weight9.9oz (282g)
Click here for complete specifications on the Extech SD200

What's included with the Extech SD200

  • 6x AAA Batteries
  • SD Memory Card
  • Universal AC Adaptor
  • 3x Type-K Bead Wire Temperature Probes
  • Mounting Bracket

Click on a category to view a selection of compatible accessories with the Extech SD200 3-Channel Temperature Data Logger.

Extech 881616 Magnetized Type K Surface Probe, -40 to 250°C 881616
Features a probe surface area 1" x 0.75" and an 6ft teflon cable with strain relief. Includes replacement temperature element.



Extech 881603 Type K Immersion Temperature Probe, -40 to 800°C 881603
Type K high temperature probe with mini connector.



Extech 871515 General Purpose Type K Temperature Probe, -40 to 700°C 871515
High temperature stainless steel probe with mini connector.



Extech 881605 General Purpose Type K Temperature Probe with mini connector, -328 to 1292°F 881605
Suitable for any meter with a type k connector, this general-purpose temperature probe features a temperature range of -328 to 1292°F (-200 to 700°C).



Extech 881602 Type K Surface Temperature Probe, -40 to 500°C 881602
Type K high temperature probe with mini connector. Compatible with most Multimeter that have Type K temperature function.



Extech TP882 Type K Penetration Probe, -46 to 538°C TP882
Type K high temperature probe with mini connector.



Extech TP875 Bead Wire Type K Temperature Probe, -50 to 538°C TP875
Type K high temperature probe with mini connector and banana plug adaptor.



Extech TP870 Bead Wire Type K Temperature Probe, -40 to 250°C TP870
Type K temperature probe with mini connector.



Extech TP200 Type K Pipe Clamp Temperature Probe, -4 to 200°F TP200
Takes hands-free superheat/subcooling temperature measurements. The spring-loaded jaw is for a secure grip on pipes from 0.25 inches (6.35mm) to 1.5 inches (38mm) in diameter.



Extech TP400 High Temperature Type K Pipe Clamp, -4 to 450°F TP400
Takes hands-free superheat/subcooling temperature measurements. The spring-loaded jaw is for a secure grip on pipes from 0.25 inches (6.35mm) to 1.5 inches (38mm) in diameter.



Ask a question about Extech SD200 3-Channel Temperature Data Logger

Customer Reviews for the Extech SD200
