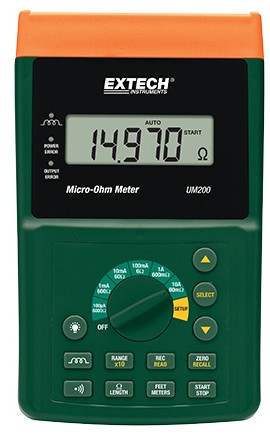

Extech UM200-NIST High Resolution Micro-Ohm Meter, includes Traceable Calibration Certificate

Model: UM200-NIST | UPC: 793950380208

Extech UM200-NIST High Resolution Micro-Ohm Meter, -

Downloads:

More Extech Products

Ask an Expert

Extech UM200-NIST High Resolution Micro-Ohm Meter, includes Traceable Calibration Certificate

Model: UM200-NIST | UPC: 793950380208

Precision meter provides resolution down to 1µΩ. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Precision meter provides resolution down to 1µΩ. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Your Price $2794.00 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your UM200-NIST High Resolution Micro-Ohm Meter

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your UM200-NIST High Resolution Micro-Ohm Meter

Extech UM200-NIST Offers

Features

  • 6 ranges with 3 sub-ranges in each current range
  • Measurement of resistive and inductive materials
  • 5-Digit backlit LCD, PC interface
  • Auto or Manual ranging, 10A maximum test current
  • Store/Recall up to 3000 measurements
  • Cable length measurement (feet or meters)

Applications

  • Plant Maintenance
  • Electricians
  • Manufacturing

Extech UM200-NIST Specifications

Specifications Range Resolution Current Accuracy (%rdg)
Resistance 60m 1µ 10A ±(0.25% + 25µΩ)
600m 10µ 1A ±(0.25% + 250µΩ)
6 100µ 100mA ±(0.25% + 2.5mΩ)
60 1m 10mA ±(0.25% + 25mΩ)
600 10m 1mA ±(0.25% + 250mΩ)
6k 100m 100µA ±(0.75% + 3Ω)
Power Rechargeable Li-Polymer Battery
Dimensions/Weight 10.1 x 6.1 x 2.2" (257 x 155 x 57mm)/ 2.6lb (1160g)
Click here for complete specifications on the Extech UM200-NIST

What's included with the Extech UM200-NIST

  • Micro-Ohm Meter
  • 4-Wire Cable with Kelvin Clip Connectors
  • NIST Traceable Certificate
  • AC Adapter/Charger
  • Software and USB Cable
  • Soft Carrying Case
  • Rechargeable Li-Polymer Battery

Ask a question about Extech UM200-NIST High Resolution Micro-Ohm Meter,

Customer Reviews for the Extech UM200-NIST

Extech UM200-NIST Offers

Features

  • 6 ranges with 3 sub-ranges in each current range
  • Measurement of resistive and inductive materials
  • 5-Digit backlit LCD, PC interface
  • Auto or Manual ranging, 10A maximum test current
  • Store/Recall up to 3000 measurements
  • Cable length measurement (feet or meters)

Applications

  • Plant Maintenance
  • Electricians
  • Manufacturing
Show More...

Extech UM200-NIST Specifications

Specifications Range Resolution Current Accuracy (%rdg)
Resistance 60m 1µ 10A ±(0.25% + 25µΩ)
600m 10µ 1A ±(0.25% + 250µΩ)
6 100µ 100mA ±(0.25% + 2.5mΩ)
60 1m 10mA ±(0.25% + 25mΩ)
600 10m 1mA ±(0.25% + 250mΩ)
6k 100m 100µA ±(0.75% + 3Ω)
Power Rechargeable Li-Polymer Battery
Dimensions/Weight 10.1 x 6.1 x 2.2" (257 x 155 x 57mm)/ 2.6lb (1160g)
Click here for complete specifications on the Extech UM200-NIST

What's included with the Extech UM200-NIST

  • Micro-Ohm Meter
  • 4-Wire Cable with Kelvin Clip Connectors
  • NIST Traceable Certificate
  • AC Adapter/Charger
  • Software and USB Cable
  • Soft Carrying Case
  • Rechargeable Li-Polymer Battery

Ask a question about Extech UM200-NIST High Resolution Micro-Ohm Meter,

Customer Reviews for the Extech UM200-NIST
