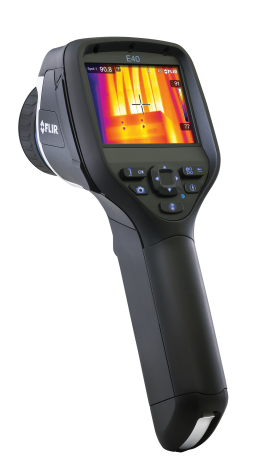

FLIR E40BX Thermal Imaging Camera, 19200 Pixels (160 x 120)

Model: E40BX | UPC: 845188005207

Downloads:

FLIR E40BX Thermal Imaging Camera, 19200 Pixels (160 x 120)

Model: E40BX | UPC: 845188005207

For building applications. Features a 160 x 120 60Hz infrared detector with a 0.045°C thermal sensitivity and a -20 to 120°C (-4 to 248°F) temperature range.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

FLIR E76 Advanced Thermal Imaging Camera with 42° lens, 320 x 240, -4 to 1202°F

Model: 78513-1101 | Order No: E76-42

Designed to cover near and distant targets, this 320 x 240-pixel camera features a 42° lens, a 4 to 1202°F (-20 to 650°C) temperature range, laser-assisted autofocus, and three area measurement boxes. Additionally, this camera comes with FLIR Ignite cloud connection for easy and secure image storage and sharing.

Learn More

Recommended Accessories

FLIR T300791ACC 2-Bay Battery Charger for the E, Exx, & K Series

T300791ACC

FLIR 1196960 Wide Angle Lens for FLIR Thermal Imaging Cameras, 45°

1196960

ITC Level II Certification Training

ITC Level II

FLIR ITC Level 1 Thermography Training

ITC Level I

FLIR E40BX Offers

The FLIR E40BX thermal imager offers one of the most effective ways to detect any form of water damage and to keep track of faulty or damaged insulation.

Features

Now with MSX Thermal Image Enhancement - See numbers, labels and other key visual details not normally apparent in a regular thermal image with an all-in-one thermal picture that instantly orients you to right where heat issues are
Its high infrared resolution images of 19, 200 pixels (160 X 120) offers clear and precise displays of wherever the problem may lie
Thermal sensitivity of <0.10°C helps to find the problems faster and easier, a key feature for equipment monitoring
An optimized temperature range of -4 to 248°F (-20 to 120°C)
Improved digital camera with a 3.1 megapixel resolution to provide the clearest visible light picture
Large 3.5" landscape touch screen
Wi-Fi Connectivity to send images and data to an iPhone®, iPad®, iPod touch® , or Android™ using FLIR Tools Mobile app
Scalable Picture-in-Picture and thermal fusion to overlay visible and thermal images
MeterLink allows to wirelessly transmit vital diagnostic data from clamp and moisture meters directly to the camera
Annotation allows you to add voice comments via bluetooth headset
InstantReport generates a professional PDF document directly from the camera

Applications

Detects water damage such as water leaks on ceilings, walls and roof tops
Inspect insulation for areas such as energy loss, home inspection and HVAC.

FLIR E40BX Specifications

IR RESOLUTION (ARRAY SIZE)	19,200 (160 x 120)
THERMAL SENSITIVITY	<0.045°C (45 mK)
FIELD OF VIEW	25°H x 19°V; Optional lenses available
TEMPERATURE RANGE	-20 to 120°C (-4 to 248°F)
ACCURACY	±2% rdg. or 2°C
MEASUREMENT MODES	5 modes: 3 spots, 3 area boxes (min/max), Isotherm (above/below), auto hot/cold, Δ T
FRAME REFRESH	60 Hz
THERMAL PALETTES	Arctic, Gray, Iron, Lava, Rainbow, Rainbow high contrast; plus all inverted
FOCUS	Manual
DISPLAY SCREEN	3.5" landscape touchscreen (widescreen)
VISUAL CAMERA	3.1 MP
DIGITAL ZOOM	2X continuous
PICTURE-IN-PICTURE	Yes
MEMORY STORAGE	2GB SD card, 1000 images
VIDEO OUTPUT	Streaming USB; Composite
INSULATION ALARM	Yes
DEWPOINT ALARM	Yes
COLOUR ALARM	Yes
LED ILLUMINATOR	Yes
LASER POINTER	Yes
VIDEO RECORDING	Yes
ANNOTATIONS	Text, Voice
WIRELESS METER CONNECT	Yes
WI-FI CONNECTIVITY	Yes

Click here for complete specifications on the FLIR E40BX

What's included with the FLIR E40BX

Memory Card with Adapter
Li-Ion Rechargeable Battery
Power Supply
USB Cable
Video Cable
Hand Strap
Camera Lens Cap
Hard Carrying Case
FLIR Tools Software CD-ROM
