See moisture damage, heat loss, electrical, mechanical, and other thermal issues clearly with this infrared camera that features optics always in focus and a large, sharp, 640 x 480 touchscreen. In addition, it recognizes the location of problems thanks to MSX® technology, which embosses key visual details onto thermal images.
See moisture damage, heat loss, electrical, mechanical, and other thermal issues clearly with this infrared camera that features optics always in focus and a large, sharp, 640 x 480 touchscreen. In addition, it recognizes the location of problems thanks to MSX® technology, which embosses key visual details onto thermal images.

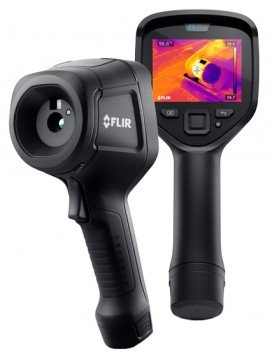

The FLIR E5 Pro is a rugged point-and-shoot thermal camera that can help you work more efficiently than ever before in building surveys, HVAC, automotive, and general electrical and mechanical inspections. Locate and diagnose problems quickly with 160 × 120 thermal resolution (19,200 pixels) and vibrant thermal imagery supported by FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement. Featuring a 3.5" (8.89 cm), 640 × 480 touchscreen, the E5 Pro simplifies your workflow. You can edit and organize photos, add detailed notes, and upload files directly from the camera to the FLIR Ignite cloud for convenient access from any device. Share images with clients and create quick reports directly in FLIR Ignite or create advanced reports in FLIR Thermal Studio.
All new FLIR Ex Pro-Series purchases include an extended FLIR Protect warranty, 12-month FLIR Ignite Pro subscription, and FLIR Ex Pro-Series & IR Fundamentals training from FLIR Academy, making it the best value thermal imaging camera of its class and an essential tool for your daily work.
Features
MSX Image Enhancement
All Ex Pro-Series thermal cameras feature Flir's unique Multi Spectral Dynamic Imaging (MSX®), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately in the camera's LCD.
Over-the-Air Updates Keep Your Camera Current
With Over-the-air (OTA) updates, your Flir camera will always have the latest firmware, bug fixes, and features. When you connect your camera to the internet, it will automatically search for firmware updates.
Professional Reports that Help Your Customer and Your Business
The right image analysis and reporting software can greatly improve your business by making it easier for your customers to understand the problem and feel confident that you fixed it.
The Flir Ignite cloud service allows you to back up images directly to the cloud, organize and edit files, and create simple reports. And for advanced editing and reporting, there's Flir Thermal Studio Suite: a desktop software offering batch processing, feature-rich measurement tools, and customized reports.
Save Time With 1-Touch Level/Span
1-Touch Level/Span allows you to choose a small area of focus in a thermal image - with one touch of the screen - and the camera will auto-adjust the level and span based on the thermal contrast at that spot in the image. The result: time saved on manual adjustments.
Become a Thermal Studio Expert
Learn to edit images, analyze them, and produce custom reports using FLIR Thermal Studio Suite software with online training from the Infrared Training Center. This virtual class covers everything you need to know, including:
Applications
| IR Resolution | 160 x 120 (19,200 pixels) |
| Thermal Sensitivity/NETD | <0.11°F (0.06°C)/<60 mK at 86°F (30°C) |
| Spatial Resolution (IFOV) | 3.7 mrad |
| Field of View (FOV) | 33 x 25° |
| Focus | Focus free |
| Image Frequency | 9 Hz |
| Color Palettes | Iron, White Hot, Black Hot, Rainbow, Arctic, Lava, Rainbow HC |
| Digital Camera | 5 MP |
| Picture-in-Picture | IR area on visual image |
| Detector Type | Uncooled microbolometer |
| Image Modes | Thermal MSX, thermal, picture-in-picture, digital camera |
| Minimum Focus Distance | 1.18' (0.36 m) |
| Spectral Range | 7.5 to 13 µm |
| Measurement and Analysis | Object temperature range: -4 to 752°F (-20 to 400°C) in two ranges Accuracy: ±3.6°F (±2°C) or ±2% of reading, for ambient temperature 50 to 95°F (10 to 35°C) and object temperature above 32°F (0°C) Measurements correction: Emissivity; matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation Set-up commands: Local adaptation of units, language, date and time formats Spot meter: Center spot; box with minimum/maximum Isotherm: Above alarm, below alarm Delta T: Yes, NFPA 70B compliant |
| Inspection Efficiency | Multi-Spectral Dynamic Imaging (MSX): IR image enhanced with visible camera detail FLIR Ignite: Instant upload to cloud storage over Wi-Fi FLIR Thermal Studio Suite: Compatible with a full range of analysis and reporting software Capacitive touchscreen: Access to onscreen menus, features, and keyboard Text: Text annotation on image using onscreen keyboard Gallery: Thumbnails and custom folder structure 1-touch level/span: Yes; automatic contrast enhancement |
| User Interface | Display: 3.5" (88.9 mm), 640 x 480 color LCD Flashlight: Bright LED |
| Storage Media | Internal memory and onboard FLIR Ignite cloud connectivity with Wi-Fi |
| Wi-Fi | Standard: 802.11 a/b/g/n (2.4 and 5 GHz) |
| Environmental Conditions | Operating temperature range: 5 to 122°F (-15 to 50°C) Storage temperature range: -40 to 158°F (-40 to 70°C) Operating/storage humidity: IEC 60068-2-30/24 h, 95% relative humidity Encapsulation: IP54 (IEC 60529) Drop test: 6.6' (2 m) Shock: 25 g (IEC 60068-2-27) Vibration: 2 g (IEC 60068-2-6) |
| Certifications | UL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC |
| EMC | EN 301 489-1, EN 301 489-17, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B |
| Power | Battery type: Rechargeable Lithium-ion battery Battery operating time: 4 hours Charging system: Battery is charged inside the camera or in specific charger Charging time: 2 hours Power management: Automatic shut-down |
| Dimensions | 9.6 x 3.7 x 5.5" (244 x 95 x 140 mm) |
| Weight | 1.3 lbs (0.59 kg), including battery |
