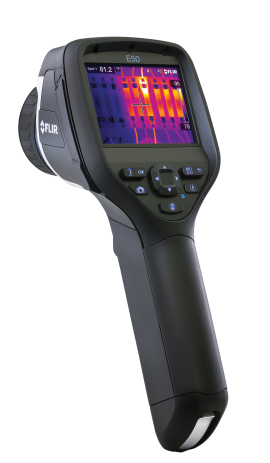

FLIR E50 Thermal Imaging Camera, 43200 Pixels (240 x 180)

Model: E50 | UPC: 845188005177

Downloads:

FLIR E50 Thermal Imaging Camera, 43200 Pixels (240 x 180)

Model: E50 | UPC: 845188005177

For electrical and mechanical applications. Features a 240 x 180 60Hz infrared detector with a 0.05°C thermal sensitivity and a -20 to 650°C (-4 to 1202°F) temperature range.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

FLIR E76 Advanced Thermal Imaging Camera with 42° lens, 320 x 240, -4 to 1202°F

Model: 78513-1101 | Order No: E76-42

Designed to cover near and distant targets, this 320 x 240-pixel camera features a 42° lens, a 4 to 1202°F (-20 to 650°C) temperature range, laser-assisted autofocus, and three area measurement boxes. Additionally, this camera comes with FLIR Ignite cloud connection for easy and secure image storage and sharing.

Learn More

Recommended Accessories

FLIR T300791ACC 2-Bay Battery Charger for the E, Exx, & K Series

T300791ACC

FLIR 1196960 Wide Angle Lens for FLIR Thermal Imaging Cameras, 45°

1196960

FLIR T198509 Cigarette Lighter Adapter Kit for the EXX, T, & K Series

T198509

FLIR ITC Level 1 Thermography Training

ITC Level I

FLIR E50 Offers

The FLIR E50 thermal imager offers one of the most effective ways to keep your facility operating at peak performance, avoid expensive equipment failures, and prevent loss of production capacity.

Features:

Its high infrared resolution images of 43, 200 pixels (240 X 180) offers clear and precise displays of wherever the problem may lie
Thermal sensitivity of <0.05°C helps to find the problems faster and easier, a key feature for equipment monitoring
An optimized temperature range of -4 to 1202°F (-20 to 650°C)
Improved digital camera with a 3.1 megapixel resolution to provide the clearest visible light picture
Large 3.5" landscape touch serene
Wi-Fi Connectivity to send images and data to an iPhone®, iPad®, iPod touch® , or Android™ using FLIR Told Mobile app
Scalable Picture-in-Picture and thermal fustian to overlay visible and thermal images
MeterLink allows to wireless transmit vital diagnostic data from clamp and moisture meters directly to the camera
Annotation allows you to add voice comments via bluetooth headset
InstantReport generates a professional PDF document directly from the camera

Applications:

Electrical: Find hidden problems quickly, make timely repairs, prevent unscheduled shutdowns, and improve plant safety.
Mechanical: Discover overheated bearings, linkages, and other components before they can interrupt your operations or create safety hazards.
Utility: Scan large areas and hundreds of connections quickly and efficiently to prevent unexpected service outages and lost revenues.

FLIR E50 Specifications

IR RESOLUTION (ARRAY SIZE)	43,200 (240 x 180)
THERMAL SENSITIVITY	<0.05°C (50mK)
FIELD OF VIEW	25°H x 19°V; Optional lenses available
TEMPERATURE RANGE	-20 to 650°C (-4 to 1202°F)
ACCURACY	±2% rdg. or 2°C
MEASUREMENT MODES	5 modes: 3 spots, 3 area boxes (min/max), Isotherm (above/below), auto hot/cold, Delta T
FRAME REFRESH	60 Hz
THERMAL PALETTES	Arctic, Gray, Iron, Lava, Rainbow, Rainbow high contrast; plus all inverted
FOCUS	Manual
DISPLAY SCREEN	3.5" landscape touchscreen (widescreen)
VISUAL CAMERA	3.1 MP
DIGITAL ZOOM	2x, 4X continuous
IMAGE FUSION	Yes
PICTURE-IN-PICTURE	Scalable
MEMORY STORAGE	2GB SD card, 1000 images
VIDEO OUTPUT	Streaming USB; Composite
COLOUR ALARM	Yes
IR/VISUAL ALARM	Yes
LED ILLUMINATOR	Yes
LASER POINTER	Yes
VIDEO RECORDING	Yes
ANNOTATIONS	Text
WIRELESS METER CONNECT.	Yes
WI-FI CONNECTIVITY	Yes

Click here for complete specifications on the FLIR E50

What's included with the FLIR E50

Memory Card with Adapter
Li-Ion Rechargeable Battery
Power Supply
USB Cable
Video Cable
Hand Strap
Camera Lens Cap
Hard Carrying Sase
FLIR Tools Software CD-ROM

Webinar: Condition Monitoring with Thermal and Acoustic Imaging with FLIR

It’s no secret that keeping track of condition monitoring is crucial as it can lead to an unsafe work environment, unplanned downtime, costly repairs and replacements, and a potential decrease in quality. With that in mind, it is important to keep track of measuring specific equipment parameters such as temperature, vibration, and sound and making note of any significant changes that could indicate impending failure. Given the significance of this topic, we will provide you with crucial information on the benefits of Thermal and Acoustic Imaging and how these tools can be applied to everyday challenges specific to Condition Monitoring in this webinar. By performing proactive or predictive maintenance, you can significantly reduce costs as opposed to other traditional methods. During our 1-hour webinar, we covered: How can thermal and acoustic imaging help you be proactive?<ul><li>Improving safety and sustainability in the workplace</li><li>Improving productivity and quality in the workplace</li><li>Lowering capital and operational costs</li><li>Making equipment last longer</li><li>Avoiding company breakdowns related to unplanned downtime</li></ul>

Webinar: Screening for Elevated Skin Temperature

We're all facing uncertain times and with that comes the importance to make difficult decisions to ensure we stay safe. We want to do our part to facilitate this as much as possible for you. As such, Global Test Supply has teamed up with FLIR to offer you this informative 1-hour webinar on Screening for Elevated Skin Temperatures (EST). Since 2003 FLIR has been the leading provider of EST solutions, trusted by health agencies, governments, and some of the best-known companies worldwide.

Configuring the Screening Mode on the FLIR Exx-Series

Follow the steps in this informative video to configure the screening mode settings. Use the FLIR thermal cameras in public spaces such as airports, train terminals, businesses, factories, and concerts, as an effective and reliable tool to measure skin surface temperature and identify individuals with Elevated Body Temperature (EBT).

FLIR Exx Series of Thermal Imaging Cameras: The Full Line

The FLIR Exx-Series advanced thermal cameras continue to revolutionize thermal inspection efficiency with more onboard tools for faster imaging, analysis and sharing with its the new additions to the line: the E96, E86, E76 and E54. These models offer enhanced thermal resolution for more vibrant, easy-to-read images and on-camera routing capability to improve field survey efficiency. Designed to help professionals detect the early signs of building issues, identify hot spots, troubleshoot electrical and mechanical systems, and prevent problems before they cause damage that leads to expensive repairs.

Introducing the FLIR Screen-EST Skin Temperature Screening Software

When connected to a FLIR thermal camera, the FLIR Screen-EST inspects individuals who enter the camera’s field of view and quickly locates a hot spot and measures the skin surface temperature. Find out how the software notifies the operator of elevated skin temperature and how to effortlessly set it up.

Click on a category to view a selection of compatible accessories with the FLIR E50 Thermal Imaging Camera, 43200 Pixels (240 x 180).

Power Supplies

FLIR T300791ACC 2-Bay Battery Charger for the E, Exx, & K Series T300791ACC

Stand-alone 2-bay battery charger, including power supply with multi plugs.

FLIR T910814 Power Supply with Multi Plugs for the T4XX, T6XX, and EXX T910814

Power supply for FLIR EXX Series, T4XX Series & T6XX Series. Includes international plugs.

FLIR T198509 Cigarette Lighter Adapter Kit for the EXX, T, & K Series T198509

Cigarette lighter adapter kit 12V DC 1.2 meters.

Lenses

FLIR 1196961 Telephoto Lens for FLIR Thermal Imaging Cameras, 15° 1196961

15° Lens with Case for E-Series Thermal Imagers

FLIR 1196960 Wide Angle Lens for FLIR Thermal Imaging Cameras, 45° 1196960

45° Lens with Case for FLIR Thermal Imagers.

Additional Accessories

FLIR T198486 Tripod Adapter for Exx Series T198486

FLIR 1910582ACC Video Cable 1910582ACC

Used to transfer video signals from the infrared camera to an external monitor, or to a computer featuring an internal video card. Compatable with the FLIR T4XX and EXX Series Thermal Imagers.

FLIR T198485 Exx Series Thermal Imaging Camera Thermal Imager Visor Sunshield T198485

Sunshield for the FLIR Exx series, to increase visibility of the LCD.

IR Windows

FLIR IRW-2C IR Window with PIRma-Lock, 2", aluminum IRW-2C

Eliminate the need to remove panel covers or open electrical cabinets with this 2" (50.8 mm) aluminum IR window that comes with a PIRma-Lock designed to lock the window tight inside the panel. In addition, this window allows for fast and efficient inspections of electrical gear and protects you from arc flashes.

FLIR IRW-3C IR Window with PIRma-Lock, 3", aluminum IRW-3C

Eliminate the need to remove panel covers or open electrical cabinets with this 3" (76.2 mm) aluminum IR window that comes with a PIRma-Lock designed to lock the window tight inside the panel. In addition, this window allows for fast and efficient inspections of electrical gear and protects you from arc flashes.

FLIR IRW-4C IR Window with PIRma-Lock, 4", aluminum IRW-4C

Eliminate the need to remove panel covers or open electrical cabinets with this 4" (101.6 mm) aluminum IR window that comes with a PIRma-Lock designed to lock the window tight inside the panel. In addition, this window allows for fast and efficient inspections of electrical gear and protects you from arc flashes.

Carrying Cases

FLIR T911689ACC Pouch Case for Exx Series (Was T198484) T911689ACC

Simple carrying pouch for use with FLIR Ex and Exx series thermal cameras. Comes with shoulder strap plus a clip to attach to a belt.

Training

ITC Level III Certification Training ITC Level III

For those who want begin and manage IR thermographic programs. Covers advanced techniques, temperature measurement, device selection, IR program management, calculating program ROI, & developing written IR testing and inspection procedures. Our thermography experts will contact you with course dates and locations for you to choose from.

ITC Level II Certification Training ITC Level II

Designed for the practicing Level I thermographer who seeks more advanced infrared training. Level II focuses on strengthening and improving your predictive maintenance thermography expertise with more in-depth concepts and intensive labs.

FLIR ITC Level 1 Thermography Training ITC Level I

Geared to the new infrared camera user, attendees will receive a Level I Infrared Thermography Certification.
