Designed to cover near and distant targets, this 320 x 240 pixel camera features a 24° lens and includes an optional temperature range to 1832°F (1000°C), laser-assisted autofocus, and three area measurement boxes. Additionally, it is quick to set up and comes with FLIR's Thermal Studio Starter.
Our rentals come fully calibrated to traceable standards. Have your own instrument? We also offer calibration services for this model (CERTIIR4).
Designed to cover near and distant targets, this 320 x 240 pixel camera features a 24° lens and includes an optional temperature range to 1832°F (1000°C), laser-assisted autofocus, and three area measurement boxes. Additionally, it is quick to set up and comes with FLIR's Thermal Studio Starter.
Our rentals come fully calibrated to traceable standards. Have your own instrument? We also offer calibration services for this model (CERTIIR4).
Provides complete coverage of near and far targets through a range of interchangeable AutoCal™ lenses, with fields of view for everything from wide-angle roof inspections to electrical inspections, all performed from a safe distance. It comes equipped with an optional temperature range to 1832°F (1000°C), laser-assisted autofocus, and three area measurement boxes, along with a 320 x 240 thermal resolution to produce crisp, vibrant imagery that can be enhanced with MSX® technology for added detail and perspective. The onboard Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations.
Interchangeable,

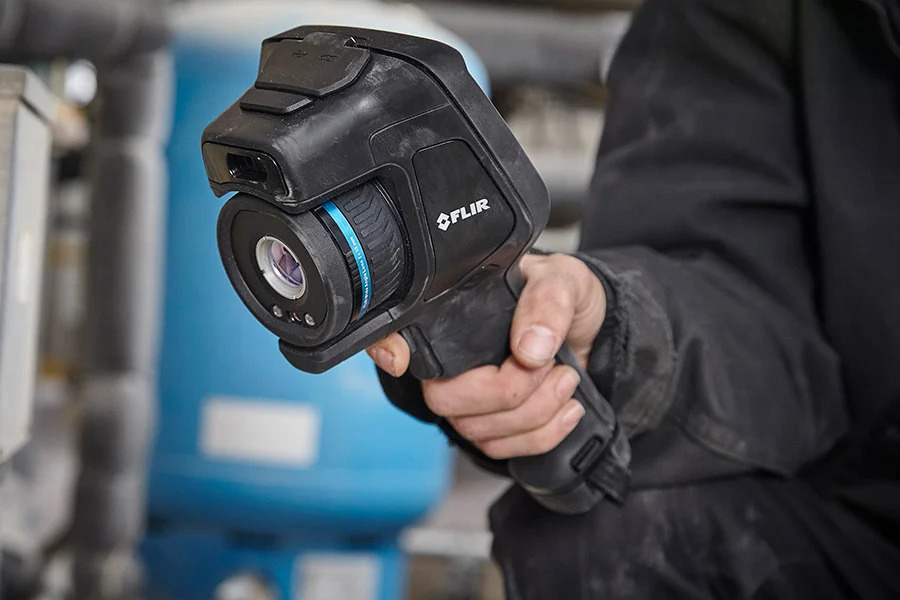

Telephoto, standard, and wide angle autoCal lenses help users survey large targets quickly, check machines for signs of failure, or inspect electrical
Improved contrast for
Use 1-touch level/span to instantly improve image contrast and highlight potential electrical or
Streamlined reporting
Onboard integration with routing software, a built-in mic for voice annotation, and report generation features all help the camera streamline
Condition monitoring
Improve plant reliability and avoid unexpected downtime through routine inspection with a rugged, handheld camera. Vibrant thermal images help manufacturing and facilities inspectors spot overheating equipment so they can immediately diagnose the issue, begin repairs, and prevent

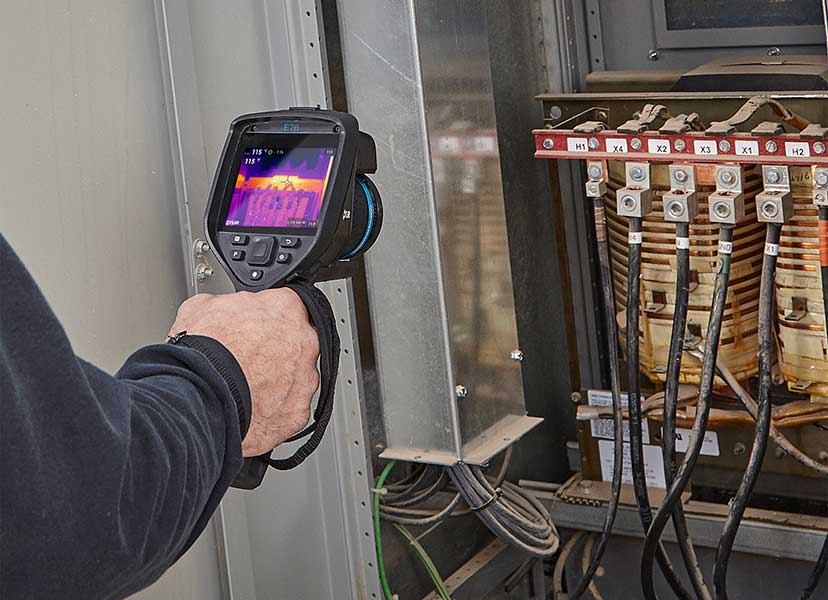

Pre-planned routes can improve survey efficiencies, helping users inspect dozens of electrical and mechanical targets in a logical manner and maintain organized inspection data and reports. The camera makes this possible through the built-in Inspection
Inspection Route runs a pre-defined list of targets that are organized for maximum efficiency. This list is first created in Thermal Studio Pro (sold separately) using the FLIR Route Creator plugin and then downloaded
By ensuring that nothing is missed and that all inspection results are organized from the start, this suite of inspection software speeds up surveys, improves organization, and
| ENTRY | GOOD | BETTER | BEST |
 |
 |
 |
 |
| FLIR E54 | FLIR E76 | FLIR E86 | FLIR E96 |
| 320 × 240 Fixed-Lens Thermal Camera | 320 × 240 Thermal Camera with AutoCal™ Lenses | 464 × 348 Thermal Camera with AutoCal™ Lenses | 640 × 480 Thermal Camera with AutoCal™ Lenses |
| - Learn More - | - Learn More - | - Learn More - | - Learn More - |
| IR Resolution | 320 x 240 pixels |
| Resolution with UltraMax Enhancement | 307,200 pixels |
| MSX Image Enhancement | Yes: details from visual camera add depth and perspective |
| Built-in Visual Camera | 5 MP, fixed focus, with built-in LED light |
| Thermal Sensitivity | <30 mK at 86°F (30°C) |
| Temperature Range | -4 to 248°F (-20 to 120°C) 32 to 1202°F (0 to 650°C) |
| Accuracy | ±3.6°F (±2°C) or ±2% of the reading |
| Focus Modes | Continuous laser distance meter (LDM), one-shot LDM, one-shot contrast, manual |
| Digital Zoom | 1 to 4x continuous |
| Measurement Tools | Tools: 3 spot meters in live mode, 3 area meters in live mode Presets: None, center spot, hot spot, cold spot, user presets 1 and 2 |
| Lens | 24°, macro (2x) Identification: Automatic (FLIR AutoCal) |
| 1-Touch Level/Span | Yes: Automatic contrast enhancement |
| Laser | Pointer: Yes Distance meter: Yes |
| On-Camera | Routing software: FLIR Inspection Route enabled Report building: Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images from touchscreen |
| FLIR Software Integration | FLIR Thermal Studio Suite, FLIR Research Studio |
| Radiometric JPEG | Yes |
| IR, Radiometric, Visual Video | Recording: Yes Streaming: Yes, over UVC (radiometric, non-radiometric, visual) and Wi-Fi (non-radiometric, visual) |
| Communication Modes | USB 2.0, Bluetooth, Wi-Fi, DisplayPort |
| Cloud Services | FLIR Ignite™ for direct, secure image uploading, organizing, and sharing via Wi-Fi (firmware update required for models purchased prior to 2022) |
| METERLiNK® | Yes via Bluetooth |
| Display | 640 x 480 pixels (VGA) Dragontrail® touchscreen |
| Drop Testing | 6.6' (2 m) |
| Battery Operation Time | >2.5 hours, typical use |
| Dimensions | 11 x 4.6 x 4.4" (279.4 x 116.84 x 111.76 mm) |
| Weight | 2.2 lbs (0.99 kg) |
| IR Resolution | 320 x 240 pixels |
| Resolution with UltraMax Enhancement | 307,200 pixels |
| MSX Image Enhancement | Yes: details from visual camera add depth and perspective |
| Built-in Visual Camera | 5 MP, fixed focus, with built-in LED light |
| Thermal Sensitivity | <30 mK at 86°F (30°C) |
| Temperature Range | -4 to 248°F (-20 to 120°C) 32 to 1202°F (0 to 650°C) |
| Accuracy | ±3.6°F (±2°C) or ±2% of the reading |
| Focus Modes | Continuous laser distance meter (LDM), one-shot LDM, one-shot contrast, manual |
| Digital Zoom | 1 to 4x continuous |
| Measurement Tools | Tools: 3 spot meters in live mode, 3 area meters in live mode Presets: None, center spot, hot spot, cold spot, user presets 1 and 2 |
| Lens | 24°, macro (2x) Identification: Automatic (FLIR AutoCal) |
| 1-Touch Level/Span | Yes: Automatic contrast enhancement |
| Laser | Pointer: Yes Distance meter: Yes |
| On-Camera | Routing software: FLIR Inspection Route enabled Report building: Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images from touchscreen |
| FLIR Software Integration | FLIR Thermal Studio Suite, FLIR Research Studio |
| Radiometric JPEG | Yes |
| IR, Radiometric, Visual Video | Recording: Yes Streaming: Yes, over UVC (radiometric, non-radiometric, visual) and Wi-Fi (non-radiometric, visual) |
| Communication Modes | USB 2.0, Bluetooth, Wi-Fi, DisplayPort |
| Cloud Services | FLIR Ignite™ for direct, secure image uploading, organizing, and sharing via Wi-Fi (firmware update required for models purchased prior to 2022) |
| METERLiNK® | Yes via Bluetooth |
| Display | 640 x 480 pixels (VGA) Dragontrail® touchscreen |
| Drop Testing | 6.6' (2 m) |
| Battery Operation Time | >2.5 hours, typical use |
| Dimensions | 11 x 4.6 x 4.4" (279.4 x 116.84 x 111.76 mm) |
| Weight | 2.2 lbs (0.99 kg) |
