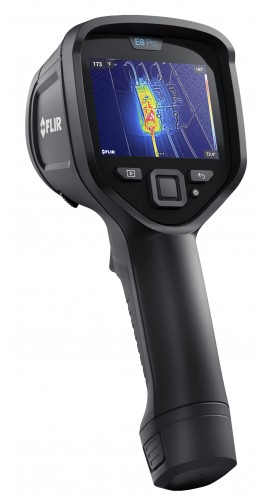

See impending failures sooner with this 320 x 240 resolution lightweight infrared camera that features Ignite Cloud, MSX image enhancement for extraordinary thermal imaging details, and an LED lamp for improved decision support. In addition, this rugged camera comes with a power grip for one-handed, point-and-shoot image capture.
Our rentals come fully calibrated to traceable standards. Have your own instrument? We also offer calibration services for this model (CERTIIR3).
See impending failures sooner with this 320 x 240 resolution lightweight infrared camera that features Ignite Cloud, MSX image enhancement for extraordinary thermal imaging details, and an LED lamp for improved decision support. In addition, this rugged camera comes with a power grip for one-handed, point-and-shoot image capture.
Our rentals come fully calibrated to traceable standards. Have your own instrument? We also offer calibration services for this model (CERTIIR3).
| IR Resolution | 320 x 240 (76,800 pixels) |
| Thermal Sensitivity/NETD | <0.09°F (<0.05°C)/<50 mK |
| Focus | Fixed focus Minimum focus distance: 1.18' (0.36 m) |
| Image Frequency | 9 Hz |
| Color Palettes | Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC |
| Digital Camera | 5 MP |
| Picture-in-Picture | IR area on visual image |
| Detector Type | Uncooled microbolometer |
| Field of View (FOV) | 33° |
| F-Number | 1.4 |
| Image Modes | Thermal MSX, thermal, picture-in-picture, thermal blending, digital camera |
| Spatial Resolution (IFOV) | 1.8 mrad |
| Spectral Range | 7.5 to 13 µm |
| Inspection Efficiency | MSX (Multi-Spectral Dynamic Imaging): IR image enhanced with visible camera detail Ignite: Instant upload to cloud storage over Wi-Fi Thermal Studio Suite: Compatible with a full range of analysis and reporting software Capacitive touchscreen: Access to onscreen menus, features, and keyboards Text: Text annotation on an image using onscreen keyboard Gallery: Thumbnails and custom folder structure |
| Measurement and Analysis | Object temperature range: -4 to 1022°F (-20 to 550°C) in two ranges Accuracy: ±3.6°F (±2°C) or ±2% of reading, for ambient temperature 50 to 95°F (10 to 35°C) and object temperature above 32°F (0°C) Measurement correction: Emissivity; matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation Set-up commands: Local adaptation of units, language, date and time formats Spot meter: Center spot; box with minimm/maximum |
| User Interface | Display: 3.5" (88.9 mm), 640 x 480 color LCD Flashlight: Bright LED |
| Storage Media | Internal memory and onboard FLIR Ignite™ cloud connectivity (with Wi-Fi) |
| Environmental | Operating temperature: 5 to 122°F (-15 to 40°C) Storage temperature: -40 to 158°F (-40 to 70°C) Humidity (operating and storage): IEC 60068-2-30/24 h 95% relative humidity Wi-Fi: Standard: 802.11 a/b/g/n (2.4 and 5 GHz) Shock: 25 g (IEC 60068-2-27) Vibration: 2 g (IEC 60068-2-6) |
| Certifications | UL, CSA, CE, PSE, and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC |
| EMC | EN 301 489-1 EN 301 489-17 EN 61000-6-3 EN 61000-6-2 FCC 47 CFR Part 15 Class B |
| Power | Battery type: Rechargeable Lithium-ion battery Battery operating time: 4 hours Charging system: The battery is charged inside the camera or in a specific charger Charging time: 2 hours Power management: Automatic shutdown |
| Dimensions | 9.6 x 3.7 x 5.5" (244 x 95 x 140 mm) |
| Weight | 1.3 lbs (0.59 kg) with battery |
