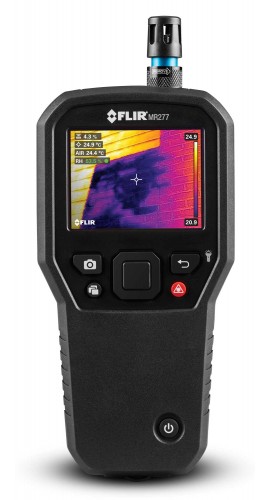

Clearly see areas of concern with a high-performance 160 x 120 thermal imaging sensor, and easily identify both the context and the issue with MSX, which embosses visual details on full thermal images. Quickly scan for moisture with the integrated non-invasive pinless sensor and target the exact source of problems with an integrated laser pointer.
Clearly see areas of concern with a high-performance 160 x 120 thermal imaging sensor, and easily identify both the context and the issue with MSX, which embosses visual details on full thermal images. Quickly scan for moisture with the integrated non-invasive pinless sensor and target the exact source of problems with an integrated laser pointer.

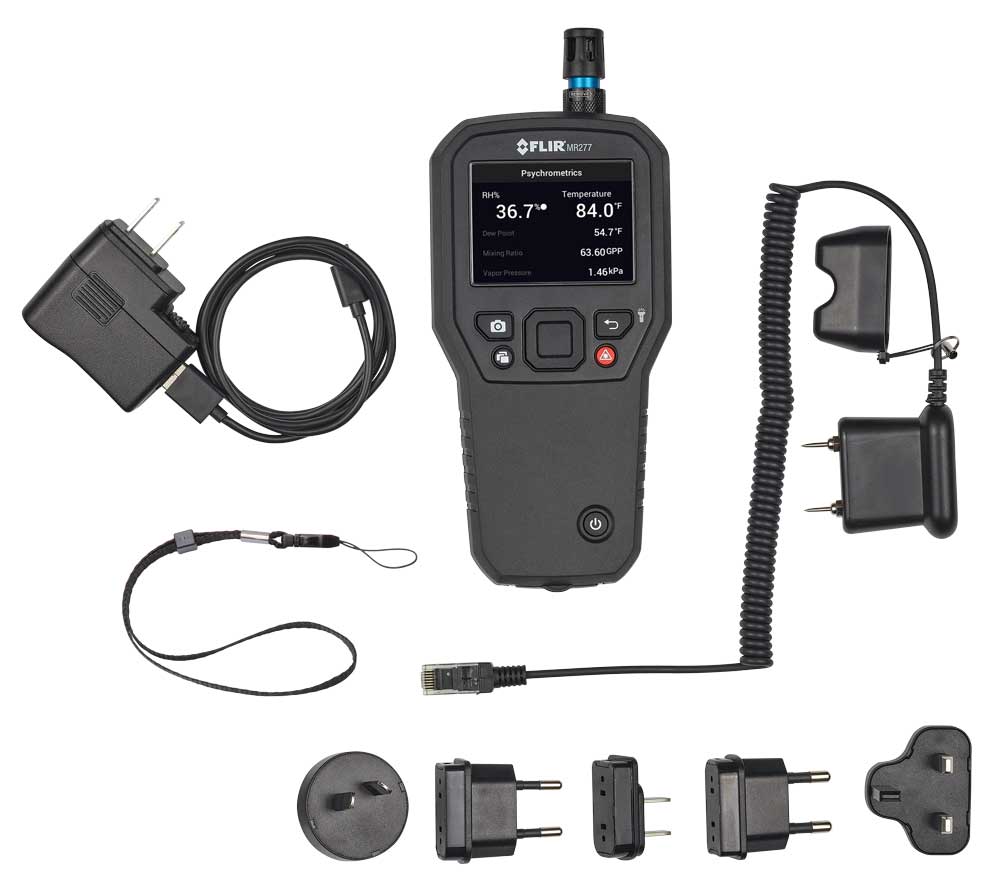

Accurate and easy-to-use, this all-in-one tool quickly locates moisture and building envelope issues and combines the advantages of Infrared Guided Measurement (IGM™) with Multi-Spectral Dynamic Imaging (MSX®). Additionally, the built-in hygrometer and the field-replaceable temperature/relative-humidity sensor expedite troubleshooting, and METERLiNK® allows you to connect to mobile devices and upload data to the FLIR Tools® app.
Locate building problems faster
Easily investigate the source of moisture build-up and building envelope issues.
Diagnose efficiently and accurately
Take comprehensive measurements and analyze moisture readings.
Do more in less time
One tool helps you get the job done.
| Thermal Imaging | |
| Resolution | 160 x 120 (19,200 pixels) |
| Spectral Response | 8 to 14 μm |
| Field of View | 55 x 43° |
| Sensitivity | <70 mK |
| Object Temperature Range | 32 to 212°F (0 to 100°C) |
| Image Update Speed Frequency | 9 Hz |
| Image Modes and Displays | |
| Thermal Image Palettes | Iron, Rainbow, Arctic, White-hot, Black-hot |
| MSX® | Adds visual details to full resolution thermal image |
| Image Modes | Thermal, visual, MSX® |
| Internal Memory | 8 GB |
| Image Gallery | Yes |
| Display Type | QVGA (320 x 240 pixels) 2.8" color TFT graphical display |
| Moisture Measurements | |
| Pin Moisture | Range: 7 to 100% Accuracy: ±1.5%, 7 to 30%; Reference only: 30 to 100% Groups: 11 material groups |
| Pinless Moisture | Range and accuracy: 0 to 100; relative Depth: Maximum of 0.75" (19 mm) |
| Measurement Resolution | 0.1 |
| Response Time | Pinless mode: 100 ms Pin mode: 750 ms |
| Environmental Measurements | |
| Relative Humidity | Range: 0 to 100% RH Basic accuracy: ±2.5% Detailed accuracy: ±4.7% (0 to 10% RH), ±2.5% (10 to 90% RH), ±4.7% (90 to 100% RH) |
| Air Temperature | Range: 32 to 122°F (0 to 50°C) Accuracy: ±1.1°F (±0.6°C) |
| Dew Point | Range: -22 to 122°F (-30 to 50°C) Basic accuracy: ±1.8°F (±1.0°C) |
| Vapor Pressure | Range: 0 to 12.0 kPa Basic accuracy: ±0.05 kPa |
| Mixing Ratio | Range: 0 to 80.0 g/kg (0 to 560 GPP) Basic accuracy: 0.25 g/kg (±2 GPP) |
| General Specifications | |
| Saved Image File Format | Radiometric jpeg |
| Stored Image Capacity | 15,000 Images |
| Digital Camera | 2 MP Field of view: 83° (70.5 HFOV x 56° VFOV) |
| Language Options | 22 |
| Laser Type | Visible class 2, single laser pointer to center of thermal image |
| Continuous Run Time | 16 hours maximum |
| Typical Usage | 4 work weeks |
| Auto Power Off | Programmable: off, 1, 5, or 20 minutes |
| Battery | Rechargeable 4.2 V, 5400 mAh LiPo |
| Certification Standards | EN 61326 (EMC), EN 60825-1 Class 2 (laser), IEC61010-1 |
| Agency Approvals | CE, FCC Class B, RCM |
| Temperature | Operating: -4 to 140°F (-20 to 60°C) Storage: -4 to 113°F (-20 to 45°C) |
| Humidity | Operating: 5 to 95% Storage: 90% relative humidity (no condensation) |
| Drop Test | 6.6' (2 m) |
| Dimensions | 6.2 x 3.3 x 1.7" (16 x 8.5 x 4.4 cm) |
| Weight | 14.3 oz (406 g) |
