FLIR Si2-PD Industrial Acoustic Imaging Camera for partial discharge detection, 2 to 130 kHz, 1280 × 720

Model: Si2-PD | Order No: T912305 | UPC: 845188029739

FLIR Si2-PD Industrial Acoustic Imaging Camera for partial discharge detection, 2 to 130 kHz, 1280 × 720

Model: Si2-PD | Order No: T912305 | UPC: 845188029739

Ideal for partial discharge detection, this industrial acoustic imaging camera detects, locates, and measures compressed air and gas leaks. In addition, identify PD that are 30 times smaller than ever with this camera, allowing for one-handed operations with automatic tuning, 8x zoom, a 12 MP digital camera, and an IP54 rating.

Ideal for partial discharge detection, this industrial acoustic imaging camera detects, locates, and measures compressed air and gas leaks. In addition, identify PD that are 30 times smaller than ever with this camera, allowing for one-handed operations with automatic tuning, 8x zoom, a 12 MP digital camera, and an IP54 rating.

Sale Price $17950.00 USD
Regular Price $19949.00 USD
Availability 2 to 3 Weeks
Quantity

Recommended Accessories


FLIR Si2-PD Offers

Work with best-in-class decision support with this camera that features on-camera and software-based severity assessment of PD issues and PD type. In addition, this camera is ideal for enterprise scaling through fleet management functionality, helping managers ensure the tools are properly used and maintained.

Features

  • Detect, locate, classify, and assess partial discharge (PD) faults from up to 656' (200 m) away
  • Identify PD 30x smaller than ever before
  • On-camera and software-based severity assessment of PD issues, and PD type classification provides best-in-class decision support
  • One-handed operation with automatic tuning, 8x zoom, a 12 MP digital camera, and IP54 rating
  • Made for enterprise scaling through the use of fleet management functionality so that managers can ensure the tools are being used and maintained properly
  • Intuitive, light weight, one handed operation requiring minimal training
  • On-device partial discharge type and severity analysis with recommended actions
  • The highest performance acoustic imager available
  • Provides a greater return on investment for ultrasound inspection because the ease of use does not require experienced, trained technicians to get meaningful results
  • Market demand to expand inspections beyond finding compressed air leaks and high voltage, overhead component partial discharge
  • MECH mode camera operation allows quick detection and measurement of bearing and other mechanical issues that can lead to costly production disruption or safety hazards (three metrics provided for mechanical fault measurement)
  • Industrial gas quantification provides leak detection, leak rate and cost quantification for compressed air, methane, natural gas, ammonia, hydrogen, helium, and argon to find and prioritize repairs, and maximize return on investment
  • Lights can make a big difference: This camera features dual LED lamps to illuminate nearby dark areas

On-camera PD severity assessment speeds up decisions

  • PD severity assessment and PD indentification can be viewed both on-camera and in-software
  • Severity assessment allows the user to see the importance of a PD issue without weeks of specialized training and months of experience

Applications

  • Monitor transmission and distribution conductors and components at long distances easily and reduce need for emergency repairs
  • Inspect substation transformers to detect PD issues early, before they result in a dangerous and costly explosion
  • Find PD issues in any piece of high-voltage equipment to reduce public complaints of radio interference and audible noise
  • Power utilities
  • Manufacturing
  • Mining
  • Aerospace
  • Oil and gas
  • Facility maintenance
  • Research and development
  • Reliability consultants
  • Specialty service providers: Compressed air, refrigeration
  • Electrical generation and transmission

How to Update Your Si2 Camera

The Si2 camera can be updated using the Over The Air (OTA) update feature (Cloud based). To update your camera, please follow the instructions in the drop down menu below. Make sure that you read all the steps before attempting the update.

Requirements:

  • Ensure that the battery is fully charged. You will not receive any warning or message before starting the update.
  • Connect the camera to a stable Wi-Fi network that is unrestricted, or to a network where you know that your device can communicate with the Acoustic Viewer (cloud)
  • Make sure that the camera is paired with Acoustic Viewer (cloud)

Download Instructions:

  • 1. Tap the settings menu button to access device info and find the camera's initial firmware version at the bottom of the screen
  • 2. Please keep your camera on for 10 to 20 minutes. The download process will start automatically once the acoustic viewer recognizes your camera
  • 3. Wait for the download to complete (this will vary depending on your network speed). You can track the progress of the download in the camera's Device info label at the bottom of the screen. The percentage of the process will be displayed

*NOTE: Please be aware that the download percentage displayed on the screen does not update automatically. To see the latest progress, tap on the back arrow to switch to the live view. Then, go back to the device info screen. The download will continue running in the background even if you switch screens or perform other actions.

  • 4. When the download is completed, the device info will display ...100%. Now you can restart the camera. To restart the camera, first turn it off by long-pressing the power button until it turns red. Wait until it the Red LED light stops glowing, then turn it back on by short-pressing the button until it turns green.

Installation:

  • 1. When turning on the camera, the device screen displays that the update is being installed
  • 2. Wait until the installation is completed, this process takes around 10 minutes
  • 3. The camera will display the FLIR logo, and then switch to the main screen (live view). The update has been now been installed successfully

*Note: If the mode selection at start up is enabled, the camera will display the mode selection screen first. Select a mode and then accept to be directed to the live view

Verification:

  • 1. To confirm that your camera software is up-to-date, look at the text box at the bottom of the screen after pressing the settings menu. The device info displays the latest version of the software v3.0.469
  • 2. The camera is ready for normal operation

FLIR Si2-PD Specifications

Detection Threshold 20 kHz: -7 dB SPL
35 kHz: 4 dB SPL
50 kHz: 10 dB SPL
80 kHz: 36 dB SPL
100 kHz: 51 dB SPL
Bandwidth 2 to 130 kHz
Directional Resolution From 1° up to 0.125°
Operating Distance From 1' (0.3 m) up to 656' (200 m)
Severity Assessment Automatic AI-based severity assessment including recommended actions onboard camera
Digital Camera 12 MP color
Camera Field of View 75° diagonal
Video Frame Rate Camera: 60 fps
Acoustic image: 30 fps
Screen: 70 fps
Zoom 8x digital zoom
Video Image Resolution 1280 × 720
Display Size: 5" (127 mm), 1280 x 720
Resistive touch screen, TFT LCD, MIPI DSI
Integrated Flashlight LEDs, three modes off, normal and bright
Analysis and Reporting Online: FLIR Acoustic Camera Viewer (cloud service)
Offline: FLIR Thermal Studio (desktop software)
Communication and Data Storage Data transfer: Wi-Fi 2.4 and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN USB memory stick
Camera software update: Automatic Over The Air (OTA) wireless update or via USB connection
Still image format: .nlz and .jpg
Video recording and format: Up to 5 minutes (.nlz format)
Storage, internal: 128 GB (SD card)
Storage, external: USB 8 GB, Cloud storage capacity is unlimited
Image annotations: GPS, image tags and comments connection
Power Supply Camera power input:
Nominal input voltage: 12 V DC
Maximum input: 17 V DC, 3.3 A (limited)

Battery:
Li-Ion rechargeable battery pack (RRC 2054): 14.4 V DC, 3.45 Ah, 49.68 Wh
Usage: Up to 2.5 hours (depends on ambient conditions and usage, needs to be retested and confirmed with final product)
Charge time: Approximately 2 hours
Maximum output: 16.8 V DC, 5 A

Battery charger:
Input: 19 to 26 V DC, 2.8 A
Maximum output: 17.4 V DC, 4.8 A
Environmental Data Operating temperature range: 14 to 122°F (-10 to 50°C)
Storage temperature range: -4 to 122°F (-20 to 50°C) maximum 4 to 77°F (-20 to 25°C) recommended (determined by the battery)
Relative humidity: 0 to 90% recommended
EMC: CFR47 FCC part 15 subpart B
Radio: CFR47 FCC part 15 subpart C/E, ETSI EN 301 489-1/-17/-19, ETSI EN 300 328, ETSI EN 301 893
Protection class: IP54
Safety: IEC 62368-1
Dimensions Camera: 11 x 7 x 6" (288 x 182 x 159 mm)
Battery: 3.3 x 3.03" (85 x 77 mm), RRC2504
Packaging: 19.3 × 14.4 × 7.5" (490 x 365 x 190 mm)
Weight Camera: 2.64 lbs (1.2 kg)
Battery: 0.55 lbs (0.25 kg)
Camera + battery: 3.2 lbs (1.45 kg)
Packaging: 13 lbs (6 kg)
Click here for complete specifications on the FLIR Si2-PD

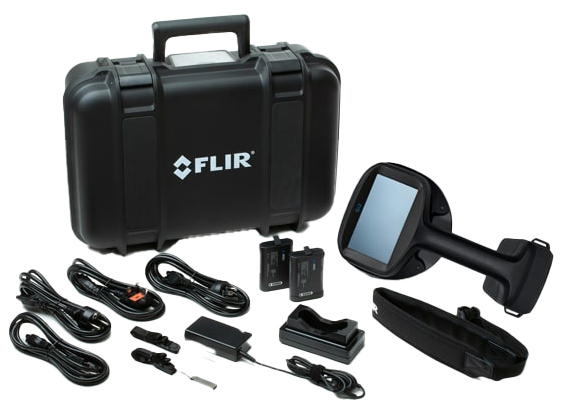

What's included with the FLIR Si2-PD

  • Industrial Acoustic Imaging Camera
  • Neck Strap
  • USB Memory Stick
  • Hard Carrying Case
  • 2 x Batteries
  • Battery Charger
  • 4 x Power Cables
  • License Card: FLIR Si-series Plugin for FLIR Thermal Studio, Perpetual License
  • Printed Documentation
  • Two to 10-Year Warranty

Click on a category to view a selection of compatible accessories with the FLIR Si2-PD Industrial Acoustic Imaging Camera for partial discharge detection, 2 to 130 kHz, 1280 × 720.

FLIR T912306 Battery RRC2054 for the Si1 and Si2 series T912306
Compatible with the Si1 and Si2 series acoustic imagers, this battery provides 2 hours of operation time.




Ask a question about FLIR Si2-PD Industrial Acoustic Imaging Camera for partial discharge detection, 2 to 130 kHz, 1280 × 720

Customer Reviews for the FLIR Si2-PD

FLIR Si2-PD Offers

Work with best-in-class decision support with this camera that features on-camera and software-based severity assessment of PD issues and PD type. In addition, this camera is ideal for enterprise scaling through fleet management functionality, helping managers ensure the tools are properly used and maintained.

Features

  • Detect, locate, classify, and assess partial discharge (PD) faults from up to 656' (200 m) away
  • Identify PD 30x smaller than ever before
  • On-camera and software-based severity assessment of PD issues, and PD type classification provides best-in-class decision support
  • One-handed operation with automatic tuning, 8x zoom, a 12 MP digital camera, and IP54 rating
  • Made for enterprise scaling through the use of fleet management functionality so that managers can ensure the tools are being used and maintained properly
  • Intuitive, light weight, one handed operation requiring minimal training
  • On-device partial discharge type and severity analysis with recommended actions
  • The highest performance acoustic imager available
  • Provides a greater return on investment for ultrasound inspection because the ease of use does not require experienced, trained technicians to get meaningful results
  • Market demand to expand inspections beyond finding compressed air leaks and high voltage, overhead component partial discharge
  • MECH mode camera operation allows quick detection and measurement of bearing and other mechanical issues that can lead to costly production disruption or safety hazards (three metrics provided for mechanical fault measurement)
  • Industrial gas quantification provides leak detection, leak rate and cost quantification for compressed air, methane, natural gas, ammonia, hydrogen, helium, and argon to find and prioritize repairs, and maximize return on investment
  • Lights can make a big difference: This camera features dual LED lamps to illuminate nearby dark areas

On-camera PD severity assessment speeds up decisions

  • PD severity assessment and PD indentification can be viewed both on-camera and in-software
  • Severity assessment allows the user to see the importance of a PD issue without weeks of specialized training and months of experience

Applications

  • Monitor transmission and distribution conductors and components at long distances easily and reduce need for emergency repairs
  • Inspect substation transformers to detect PD issues early, before they result in a dangerous and costly explosion
  • Find PD issues in any piece of high-voltage equipment to reduce public complaints of radio interference and audible noise
  • Power utilities
  • Manufacturing
  • Mining
  • Aerospace
  • Oil and gas
  • Facility maintenance
  • Research and development
  • Reliability consultants
  • Specialty service providers: Compressed air, refrigeration
  • Electrical generation and transmission

How to Update Your Si2 Camera

The Si2 camera can be updated using the Over The Air (OTA) update feature (Cloud based). To update your camera, please follow the instructions in the drop down menu below. Make sure that you read all the steps before attempting the update.

Requirements:

  • Ensure that the battery is fully charged. You will not receive any warning or message before starting the update.
  • Connect the camera to a stable Wi-Fi network that is unrestricted, or to a network where you know that your device can communicate with the Acoustic Viewer (cloud)
  • Make sure that the camera is paired with Acoustic Viewer (cloud)

Download Instructions:

  • 1. Tap the settings menu button to access device info and find the camera's initial firmware version at the bottom of the screen
  • 2. Please keep your camera on for 10 to 20 minutes. The download process will start automatically once the acoustic viewer recognizes your camera
  • 3. Wait for the download to complete (this will vary depending on your network speed). You can track the progress of the download in the camera's Device info label at the bottom of the screen. The percentage of the process will be displayed

*NOTE: Please be aware that the download percentage displayed on the screen does not update automatically. To see the latest progress, tap on the back arrow to switch to the live view. Then, go back to the device info screen. The download will continue running in the background even if you switch screens or perform other actions.

  • 4. When the download is completed, the device info will display ...100%. Now you can restart the camera. To restart the camera, first turn it off by long-pressing the power button until it turns red. Wait until it the Red LED light stops glowing, then turn it back on by short-pressing the button until it turns green.

Installation:

  • 1. When turning on the camera, the device screen displays that the update is being installed
  • 2. Wait until the installation is completed, this process takes around 10 minutes
  • 3. The camera will display the FLIR logo, and then switch to the main screen (live view). The update has been now been installed successfully

*Note: If the mode selection at start up is enabled, the camera will display the mode selection screen first. Select a mode and then accept to be directed to the live view

Verification:

  • 1. To confirm that your camera software is up-to-date, look at the text box at the bottom of the screen after pressing the settings menu. The device info displays the latest version of the software v3.0.469
  • 2. The camera is ready for normal operation

FLIR Si2-PD Specifications

Detection Threshold 20 kHz: -7 dB SPL
35 kHz: 4 dB SPL
50 kHz: 10 dB SPL
80 kHz: 36 dB SPL
100 kHz: 51 dB SPL
Bandwidth 2 to 130 kHz
Directional Resolution From 1° up to 0.125°
Operating Distance From 1' (0.3 m) up to 656' (200 m)
Severity Assessment Automatic AI-based severity assessment including recommended actions onboard camera
Digital Camera 12 MP color
Camera Field of View 75° diagonal
Video Frame Rate Camera: 60 fps
Acoustic image: 30 fps
Screen: 70 fps
Zoom 8x digital zoom
Video Image Resolution 1280 × 720
Display Size: 5" (127 mm), 1280 x 720
Resistive touch screen, TFT LCD, MIPI DSI
Integrated Flashlight LEDs, three modes off, normal and bright
Analysis and Reporting Online: FLIR Acoustic Camera Viewer (cloud service)
Offline: FLIR Thermal Studio (desktop software)
Communication and Data Storage Data transfer: Wi-Fi 2.4 and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN USB memory stick
Camera software update: Automatic Over The Air (OTA) wireless update or via USB connection
Still image format: .nlz and .jpg
Video recording and format: Up to 5 minutes (.nlz format)
Storage, internal: 128 GB (SD card)
Storage, external: USB 8 GB, Cloud storage capacity is unlimited
Image annotations: GPS, image tags and comments connection
Power Supply Camera power input:
Nominal input voltage: 12 V DC
Maximum input: 17 V DC, 3.3 A (limited)

Battery:
Li-Ion rechargeable battery pack (RRC 2054): 14.4 V DC, 3.45 Ah, 49.68 Wh
Usage: Up to 2.5 hours (depends on ambient conditions and usage, needs to be retested and confirmed with final product)
Charge time: Approximately 2 hours
Maximum output: 16.8 V DC, 5 A

Battery charger:
Input: 19 to 26 V DC, 2.8 A
Maximum output: 17.4 V DC, 4.8 A
Environmental Data Operating temperature range: 14 to 122°F (-10 to 50°C)
Storage temperature range: -4 to 122°F (-20 to 50°C) maximum 4 to 77°F (-20 to 25°C) recommended (determined by the battery)
Relative humidity: 0 to 90% recommended
EMC: CFR47 FCC part 15 subpart B
Radio: CFR47 FCC part 15 subpart C/E, ETSI EN 301 489-1/-17/-19, ETSI EN 300 328, ETSI EN 301 893
Protection class: IP54
Safety: IEC 62368-1
Dimensions Camera: 11 x 7 x 6" (288 x 182 x 159 mm)
Battery: 3.3 x 3.03" (85 x 77 mm), RRC2504
Packaging: 19.3 × 14.4 × 7.5" (490 x 365 x 190 mm)
Weight Camera: 2.64 lbs (1.2 kg)
Battery: 0.55 lbs (0.25 kg)
Camera + battery: 3.2 lbs (1.45 kg)
Packaging: 13 lbs (6 kg)
Click here for complete specifications on the FLIR Si2-PD

What's included with the FLIR Si2-PD

  • Industrial Acoustic Imaging Camera
  • Neck Strap
  • USB Memory Stick
  • Hard Carrying Case
  • 2 x Batteries
  • Battery Charger
  • 4 x Power Cables
  • License Card: FLIR Si-series Plugin for FLIR Thermal Studio, Perpetual License
  • Printed Documentation
  • Two to 10-Year Warranty

Click on a category to view a selection of compatible accessories with the FLIR Si2-PD Industrial Acoustic Imaging Camera for partial discharge detection, 2 to 130 kHz, 1280 × 720.

FLIR T912306 Battery RRC2054 for the Si1 and Si2 series T912306
Compatible with the Si1 and Si2 series acoustic imagers, this battery provides 2 hours of operation time.
