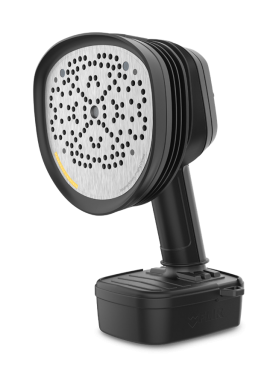

FLIR Si2x-LD HazLoc Acoustic Imaging Camera for Pressurized Leak Detection

Model: Si2x-LD | Order No: T912589

The Si2x Series acoustic imaging cameras offer an effective, user-friendly, and scalable ultrasound inspection tool designed to minimize energy costs and productivity losses in environments with combustible vapor and dust. These cameras are ATEX and IECEx-certified for use in hazardous locations, enabling the quantification of pressurized gas leaks, the identification of mechanical faults, and the detection of partial discharges in explosive atmospheres.

The Si2x Series acoustic imaging cameras offer an effective, user-friendly, and scalable ultrasound inspection tool designed to minimize energy costs and productivity losses in environments with combustible vapor and dust. These cameras are ATEX and IECEx-certified for use in hazardous locations, enabling the quantification of pressurized gas leaks, the identification of mechanical faults, and the detection of partial discharges in explosive atmospheres.

Your Price $23000.00 USD
Availability Currently Not Available
Quantity

FLIR Si2x-LD Offers

Why Choose The Flir Si2x Series Acoustic Camera?

  • Reduces costs and improves energy efficiency
  • Pinpoints even the tiniest leaks and shows leak size and cost estimatesin real time
  • Detects leaks faster and more accurately than traditional methods
  • Quantifies industrial gas leaks and detects mechanical faults
  • Measures common industrial gases, including compressed air, ammonia, hydrogen, carbon dioxide, methane, helium, and argon
  • Detects and measures potentially faulty bearings in Mech Mode
  • Offers the best acoustic camera performance
  • Features the most sensitive acoustic imaging on the market
  • Includes fleet management and data integration capabilities for enterprise-level companies
  • Speeds up audits and requires minimal training
  • Scans large areas quickly without interrupting operations
  • Gets new users up and running quickly with minimal training needed

Features

  • ATEX certified for Zone 2 (gas), and Zone 22 (dust)
  • Pinpoints even the tiniest leaks and shows leak size and cost estimates in real time
  • Detects, locates, and measures compressed air leaks, gas leaks, and bearing faults from up to 656' (200 m) away
  • Offers automatic leak recognition, including estimated leak size and annual cost for industrial gases, including ammonia, hydrogen, carbon dioxide, methane, helium, and argon
  • Features mechanical fault mode, automatic selection, and optimization of filters for finding critical mechanical issues, such as bearing faults, which can save on costly repairs, reduce downtime, and enhance maintenance efficiency
  • 124 low-noise MEMS microphones for real-time sound visualization
  • Features a 12 MP digital camera with 8x digital zoom, 1280 × 720 display resolution, and a 5" (12.70 cm) color screen
  • Illuminate dimly lit areas with built-in LED lights
  • Wireless data transfer

Applications

  • Detecting and quantifying leaks in manufacturing, production, and assembly applications, in all applications using compressed air
  • Early leak detection for enhancing safety and compliance while minimizing costly repairs
  • Rapid, accurate leak detection, boosting efficiency and client satisfaction in compressed air and gas system maintenance
  • Mechanical fault mode to detect faulty bearings to help plan repairs and avoid downtime
  • Power utilities
  • Manufacturing
  • Mining
  • Aerospace
  • Oil and gas
  • Facility maintenance
  • Research and development
  • Reliability consultants
  • Specialty service providers: Compressed air, refrigeration

FLIR Si2x-LD Specifications

Imaging Camera
Acoustic Measurement 124 low-noise MEMS microphones, real-time sound visualization
Distance From 1 up to 656' (0.3 to 200 m)
Leak Rate 0.0032 l/min from 8.2' (2.5 m)
0.0044 l/min from 19.6' (6 m)
Wireless Data Transfer Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN
Camera software update Automatic Over The Air (OTA) wireless update or via USB connection
Field of view (FOV) 75° diagonal
Video Frame Rate Camera: 60 fps
Acoustic image: 30 fps
Screen: 70 fps
Video Image Resolution 1280 × 720
Zoom 8x Digital zoom
Measurement and Analysis
Acoustic Measurement 124 low-noise MEMS microphones, real-time sound visualization
Bandwidth 2 to 130 kHz
Detection Threshold 20 kHz: -8 dB SPL
35 kHz: 4 dB SPL
50 kHz: 13 dB SPL
80 kHz: 42 dB SPL
100 kHz: 58 dB SPL
Detects Following Gases Compressed air, nitrogen, ammonia, hydrogen, carbon dioxide, methane, helium, and argon
Mechanical Analysis Mechanical Sound Indicator (MSI) Confirmation, Sound Pressure Level (dB), Crest factor, Kurtosis factor
User Interface
Display Size: 5" (12.7 cm)
Resistive touch screen, TFT LCD, MIPI DSI
Power
Battery Battery
Li-Ion rechargeable battery pack (RRC 2054): 14.4 V DC, 3.45 Ah, 49.68 Wh
Maximum output: 16.8 V DC, 5 A

Battery charger
Input: 19 to 26 V DC, 2.8 A
Maximum output: 17.4 V DC, 4.8 A

Weight: 0.55 lbs (0.25 kg), approximately
Nominal Input Voltage Nominal input voltage: 12 V DC
Maximum input: 17 V DC, 3.3 A (limited)
Environmental and Certifications
Explosive (hazardous) Environment Ex II 3 G Ex ic IIIC T4 Gc
Ex II 3 D Ex ic IIIC T135°C Dc
Tamb 14 to 104°F (-10 to 40°C)
Protection Class IP54
Environmental Conditions Operating and storage humidity: 0 to 90% recommended
Operating temperature range: 14 to 122°F (–10 to 50°C)
Storage temperature range: -4 to 158°F (-20 to 70°C)
Click here for complete specifications on the FLIR Si2x-LD

What's included with the FLIR Si2x-LD

  • Si2x-LD Acoustic Imaging Camera
  • 2 x Battery
  • Battery charger
  • 4 x Power cable
  • USB memory stick
  • Hard transport case
  • FLIR Si-series Plugin for FLIR Thermal Studio, Perpetual license
