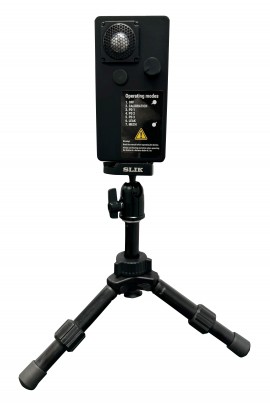

Aim for accuracy with this acoustic camera tester that generates sound signals to evaluate and verify dB-level readings and conditions of compatible acoustic imaging cameras. Moreover, this camera tester has five sound sample modes that can simulate partial discharges, gas leaks, and mechanical faults for demonstrations.
Aim for accuracy with this acoustic camera tester that generates sound signals to evaluate and verify dB-level readings and conditions of compatible acoustic imaging cameras. Moreover, this camera tester has five sound sample modes that can simulate partial discharges, gas leaks, and mechanical faults for demonstrations.
Use the acoustic camera tester to check the accuracy of the FLIR Si124, Si124-LD, Si124-PD, Si124-LD Plus, Si2-PRO, Si2-LD, and Si2-PD acoustic imaging cameras (sold separately). The tester generates a sound signal that is recognized and evaluated by the camera. The dB-level of the signal can be used to ensure a correct level of readings and also the condition of the microphone array. Furthermore, it is recommended to check the Si-series acoustic cameras (sold separately) every six months with the acoustic tester, especially if you have dropped it, it has suffered a blow, or if it has gathered a significant amount of dust.
Features
Applications
| Frequency Range | 2 to 90 kHz |
| Modes of Operation | Calibration: Test signal for checking the accuracy of the acoustic cameras PD1: Corona discharge sound PD2: Floating discharge sound PD3: Surface discharge sound Leak: Compressed gas leak sound Mech: Mechanical fault sound |
| Physical Data | Power input Input voltage: 12 to 18 V DC Nominal input: 14.6 V DC, 2 A maximum Tripod mounting: Quick release mount |
| Environmental Conditions | Operating temperature: 14 to 104°F (-10 to 40°C) Humidity: Recommended 0 to 90% (non-condensing) |
| IP Rating | IP40 |
| Power | Input voltage range: 90 to 264 V AC Input current: 1.3 A maximum at 100 to 240 V AC AC inlet: IEC 320 C8 Output voltage: 8 to 14.6 V DC Output current: 4 A maximum Output power: 58.4 W maximum Operating temperature: -4 to 113°F (-20 to 45°C) Humidity: 10 to 90% RH |
| Dimensions | 6.3 x 3.1 x 2.8" (160 x 80 x 70 mm) Packaging: 15.4 x 11.4 x 11.8" (390 x 290 x 300 mm) Power supply: 3.77 x 1.81 x 1.29" (96 x 45 x 33 mm) |
| Weight | 0.6 lbs (273 g) Packaging: 3.75 lbs (1.70 kg) Power supply: 0.55 lbs (250 g) without input cable |
| Frequency Range | 2 to 90 kHz |
| Modes of Operation | Calibration: Test signal for checking the accuracy of the acoustic cameras PD1: Corona discharge sound PD2: Floating discharge sound PD3: Surface discharge sound Leak: Compressed gas leak sound Mech: Mechanical fault sound |
| Physical Data | Power input Input voltage: 12 to 18 V DC Nominal input: 14.6 V DC, 2 A maximum Tripod mounting: Quick release mount |
| Environmental Conditions | Operating temperature: 14 to 104°F (-10 to 40°C) Humidity: Recommended 0 to 90% (non-condensing) |
| IP Rating | IP40 |
| Power | Input voltage range: 90 to 264 V AC Input current: 1.3 A maximum at 100 to 240 V AC AC inlet: IEC 320 C8 Output voltage: 8 to 14.6 V DC Output current: 4 A maximum Output power: 58.4 W maximum Operating temperature: -4 to 113°F (-20 to 45°C) Humidity: 10 to 90% RH |
| Dimensions | 6.3 x 3.1 x 2.8" (160 x 80 x 70 mm) Packaging: 15.4 x 11.4 x 11.8" (390 x 290 x 300 mm) Power supply: 3.77 x 1.81 x 1.29" (96 x 45 x 33 mm) |
| Weight | 0.6 lbs (273 g) Packaging: 3.75 lbs (1.70 kg) Power supply: 0.55 lbs (250 g) without input cable |
