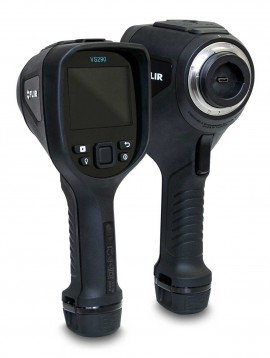

Designed to help professionals safely find hidden dangers in hard-to-reach areas, specifically underground electrical distribution vaults. The videoscope features a 160 x 120 thermal imager and a CAT IV 600 V safety rating, ideal for the most demanding environments in utility, manufacturing, and building maintenance applications.
Designed to help professionals safely find hidden dangers in hard-to-reach areas, specifically underground electrical distribution vaults. The videoscope features a 160 x 120 thermal imager and a CAT IV 600 V safety rating, ideal for the most demanding environments in utility, manufacturing, and building maintenance applications.
Inspect inaccessible areas safely
Quickly find hidden faults without entering difficult-to-access locations and other hard-to-reach spaces.
Identify, document, and share
Improve workflow and communicate potential issues before they become major problems.
Versatile, rugged, and reliable
Use the videoscope in the most demanding environments.
Applications
| Imaging and Optical Data | |
| IR Resolution | 160 x 120 pixels |
| Digital Image Enhancement | Yes, MSX |
| Thermal Sensitivity/NETD | <100 mK |
| IR Field of View (FOV) | 57 x 44° |
| Minimum Focus Distance | 0.15 m |
| Image Frequency | 8.7 Hz |
| Focus | Fixed |
| Focal Plane Array/Spectral Range | Uncooled microbolometers/7.5 to 14 μm |
| Detector Pitch | 12 μm |
| Image Presentation | |
| Display Resolution | 320 x 240 pixels |
| Screen Size | 3.5" |
| Color Palettes | Iron, rainbow, grey, below alarm, above alarm |
| Image Modes | IR only, visual only, MSX |
| Measurement and Analysis | |
| Object Temperature Range | 14 to 752°F (-10 to 400°C) |
| Measurement Accuracy | At ambient temperature 59 to 95°F (15 to 35°C) and object temperature above 32°F (0°C) 32 to 212°F (0 to 100°C): ±3°C (±5.5°F) 212 to 752°F (100 to 400°C): ±3% |
| Spotmeter | 1 in live mode |
| Measurement Presets | No measurement, center spot, hot spot, cold spot |
| Emissivity Correction | 3 pre-set and 1 custom emissivity setting |
| General Specifications | |
| Battery | Type: Rechargeable 3.7 V Li-ion Operating time: >5 hours (full LCD brightness and work light on) |
| Dimensions | 10.4 x 4.3 x 4.3" (26.4 x 11 x 11 cm) |
| Weight (Including Battery) | 1.41 lbs (640 g) |
Click on a category to view a selection of compatible accessories with the FLIR VS290-00 Videoscope Display, 160 x 120.
| Imaging and Optical Data | |
| IR Resolution | 160 x 120 pixels |
| Digital Image Enhancement | Yes, MSX |
| Thermal Sensitivity/NETD | <100 mK |
| IR Field of View (FOV) | 57 x 44° |
| Minimum Focus Distance | 0.15 m |
| Image Frequency | 8.7 Hz |
| Focus | Fixed |
| Focal Plane Array/Spectral Range | Uncooled microbolometers/7.5 to 14 μm |
| Detector Pitch | 12 μm |
| Image Presentation | |
| Display Resolution | 320 x 240 pixels |
| Screen Size | 3.5" |
| Color Palettes | Iron, rainbow, grey, below alarm, above alarm |
| Image Modes | IR only, visual only, MSX |
| Measurement and Analysis | |
| Object Temperature Range | 14 to 752°F (-10 to 400°C) |
| Measurement Accuracy | At ambient temperature 59 to 95°F (15 to 35°C) and object temperature above 32°F (0°C) 32 to 212°F (0 to 100°C): ±3°C (±5.5°F) 212 to 752°F (100 to 400°C): ±3% |
| Spotmeter | 1 in live mode |
| Measurement Presets | No measurement, center spot, hot spot, cold spot |
| Emissivity Correction | 3 pre-set and 1 custom emissivity setting |
| General Specifications | |
| Battery | Type: Rechargeable 3.7 V Li-ion Operating time: >5 hours (full LCD brightness and work light on) |
| Dimensions | 10.4 x 4.3 x 4.3" (26.4 x 11 x 11 cm) |
| Weight (Including Battery) | 1.41 lbs (640 g) |
Click on a category to view a selection of compatible accessories with the FLIR VS290-00 Videoscope Display, 160 x 120.
