Features an integral push-button display module configuration for continuous measurement of level up to 32.8' (10 m) using a 4 to 20 mA signal output. Intended for applications such as water or chemical storage in any below-grade tanks or above grade metal or reinforced concrete tanks.
Features an integral push-button display module configuration for continuous measurement of level up to 32.8' (10 m) using a 4 to 20 mA signal output. Intended for applications such as water or chemical storage in any below-grade tanks or above grade metal or reinforced concrete tanks.

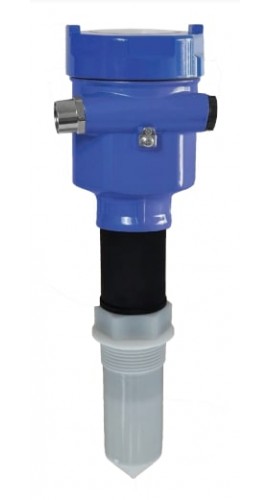

Non-contact liquid level sensor designed for easy applications typically for chemical bulk storage and tanker trucks. Encapaulated with PFA material, the transmitter is safe for use in tanks with corrosive media.
Features
Applications
| Range | 12" to 32.8' (30 to 10 m) |
| Frequency | 26 GHz |
| Accuracy | ±5 mm |
| Dead Band | 12" (30 cm) |
| Beam Angle | 22° |
| Configuration | Push button |
| Memory | Non-volatile |
| Display Type | LCD, dot matrix |
| Supply Voltage | 16-26 VDC |
| Process Mount | 1½ NPT |
| Range | 12" to 32.8' (30 to 10 m) |
| Frequency | 26 GHz |
| Accuracy | ±5 mm |
| Dead Band | 12" (30 cm) |
| Beam Angle | 22° |
| Configuration | Push button |
| Memory | Non-volatile |
| Display Type | LCD, dot matrix |
| Supply Voltage | 16-26 VDC |
| Process Mount | 1½ NPT |
