Ideal for preventative maintenance applications, this 5 kV insulation tester evaluates trends and eliminates doubts by improving worker safety and saving valuable time while conducting tests. In addition, this insulation tester features a CAT III 1000 V/CAT IV 600 V safety rating and a large digital/analog LCD for easy viewing.
Ideal for preventative maintenance applications, this 5 kV insulation tester evaluates trends and eliminates doubts by improving worker safety and saving valuable time while conducting tests. In addition, this insulation tester features a CAT III 1000 V/CAT IV 600 V safety rating and a large digital/analog LCD for easy viewing.
Conduct the entire range of test voltages specified in IEEE 43-2000 with a best-in-class CAT IV 600 V safety rating with this insulation resistance tester. With measurement storage, a PC interface, and the ability to store, share and analyze measurements through Fluke Connect (with the optional wireless connector), it is the perfect tool for preventative or predictive maintenance programs designed to identify potential equipment failures before they occur.
Features
Applications
| Electrical Specifications | The tester's accuracy is specified for one year after calibration at operating temperatures of 0 to 35°C For operating temperatures outside the range (-20 to 0°C and 35 to 50°C), add ±0.25% per °C, except on the 20% bands add ±1% per °C |
| Insulation Resistance Measurement | |
| 250 V | Range: <250 kΩ 250 kΩ to 5 GΩ 5 to 50 GΩ >50 GΩ Accuracy (± reading): Unspecified 5% 20% Unspecified |
| 500 V | Range: <500 kΩ 500 kΩ to 10 GΩ 10 to 100 GΩ >100 GΩ Accuracy (± reading): Unspecified 5% 20% Unspecified |
| 1000 V | Range: <1 MΩ 1 MΩ to 20 GΩ 20 to 200 GΩ >200 GΩ Accuracy (± reading): Unspecified 5% 20% Unspecified |
| 2500 V | Range: <2.5 MΩ 2.5 MΩ to 50 GΩ 50 to 500 GΩ >500 GΩ Accuracy (± reading): Unspecified 5% 20% Unspecified |
| 5000 V | Range: <5 MΩ 5 MΩ to 100 GΩ 100 GΩ to 1 TΩ >1 TΩ Accuracy (± reading): Unspecified 5% 20% Unspecified |
| Bar Graph Range | 0 to 1 TΩ |
| Insulation Test Voltage Accuracy | -0%, +10% at 1 mA load current |
| Induced AC Mains Current Rejection | 2 mA maximum |
| Capacitive Load | Charging rate: 5 seconds per µF Discharge rate: 1.5 seconds per µF |
| Leakage Current Measurement | Range: 1 nA to 2 mA Accuracy: ±(5% + 2 nA) |
| Capacitance Measurement | Range: 0.01 to 15 µF Accuracy: ±(15% rdg + 0.03 µF) |
| Timer | Range: 0 to 99 minutes Resolution setting: 1 minute Resolution indication: 1 second |
| Live Circuit Warning | Warning range: 30 to 660 V AC/DC, 50/60 Hz Voltage accuracy: ±(15% + 2 V) |
| General Specifications | |
| Software | FlukeView Forms™ basic software requires a PC running Windows XP, Vista, 7, or 8 |
| Display | 2.9 x 4" (75 x 105 mm) |
| Power | 12 V lead-acid rechargeable battery, Yuasa NP2.8-12 Charger input (AC): 85 to 250 V AC 50/60 Hz 20 VA |
| Environmental | Operating temperature: -4 to 122°F (-20 to 50°C) Storage temperature: -4 to 149°F (-20 to 65°C) Humidity: 80% to 31°C decreasing linearly to 50% at 50°C Altitude: 6561.68' (2000 m) Enclosure sealing: IP40 |
| Input Overload Protection | 1000 V AC |
| EMC | EN 61326 |
| Safety Compliance | IEC 61010-1: Overvoltage category II, Pollution Degree 2 IEC 61010-2-030: Measurement 600 V CAT IV/1000 V CAT III IEC 61557-1, IEC 61557-2 |
| Dimensions | 10.6 x 10.9 x 6.3" (269 x 277 x 160 mm) |
| Weight | 8.2 lbs (3.7 kg) |

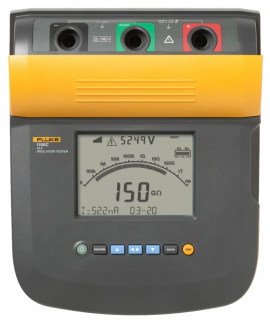

Click on a category to view a selection of compatible accessories with the Fluke 1550C Insulation Resistance Tester, 5 kV, 1 TΩ.
| Electrical Specifications | The tester's accuracy is specified for one year after calibration at operating temperatures of 0 to 35°C For operating temperatures outside the range (-20 to 0°C and 35 to 50°C), add ±0.25% per °C, except on the 20% bands add ±1% per °C |
| Insulation Resistance Measurement | |
| 250 V | Range: <250 kΩ 250 kΩ to 5 GΩ 5 to 50 GΩ >50 GΩ Accuracy (± reading): Unspecified 5% 20% Unspecified |
| 500 V | Range: <500 kΩ 500 kΩ to 10 GΩ 10 to 100 GΩ >100 GΩ Accuracy (± reading): Unspecified 5% 20% Unspecified |
| 1000 V | Range: <1 MΩ 1 MΩ to 20 GΩ 20 to 200 GΩ >200 GΩ Accuracy (± reading): Unspecified 5% 20% Unspecified |
| 2500 V | Range: <2.5 MΩ 2.5 MΩ to 50 GΩ 50 to 500 GΩ >500 GΩ Accuracy (± reading): Unspecified 5% 20% Unspecified |
| 5000 V | Range: <5 MΩ 5 MΩ to 100 GΩ 100 GΩ to 1 TΩ >1 TΩ Accuracy (± reading): Unspecified 5% 20% Unspecified |
| Bar Graph Range | 0 to 1 TΩ |
| Insulation Test Voltage Accuracy | -0%, +10% at 1 mA load current |
| Induced AC Mains Current Rejection | 2 mA maximum |
| Capacitive Load | Charging rate: 5 seconds per µF Discharge rate: 1.5 seconds per µF |
| Leakage Current Measurement | Range: 1 nA to 2 mA Accuracy: ±(5% + 2 nA) |
| Capacitance Measurement | Range: 0.01 to 15 µF Accuracy: ±(15% rdg + 0.03 µF) |
| Timer | Range: 0 to 99 minutes Resolution setting: 1 minute Resolution indication: 1 second |
| Live Circuit Warning | Warning range: 30 to 660 V AC/DC, 50/60 Hz Voltage accuracy: ±(15% + 2 V) |
| General Specifications | |
| Software | FlukeView Forms™ basic software requires a PC running Windows XP, Vista, 7, or 8 |
| Display | 2.9 x 4" (75 x 105 mm) |
| Power | 12 V lead-acid rechargeable battery, Yuasa NP2.8-12 Charger input (AC): 85 to 250 V AC 50/60 Hz 20 VA |
| Environmental | Operating temperature: -4 to 122°F (-20 to 50°C) Storage temperature: -4 to 149°F (-20 to 65°C) Humidity: 80% to 31°C decreasing linearly to 50% at 50°C Altitude: 6561.68' (2000 m) Enclosure sealing: IP40 |
| Input Overload Protection | 1000 V AC |
| EMC | EN 61326 |
| Safety Compliance | IEC 61010-1: Overvoltage category II, Pollution Degree 2 IEC 61010-2-030: Measurement 600 V CAT IV/1000 V CAT III IEC 61557-1, IEC 61557-2 |
| Dimensions | 10.6 x 10.9 x 6.3" (269 x 277 x 160 mm) |
| Weight | 8.2 lbs (3.7 kg) |
