Compact and user-friendly, this digital clamp meter is perfect for entry-level technicians across various applications to diagnose electrical problems such as overloading, short circuits, and faulty wiring. Additionally, this meter can measure AC up to 400 A, AC/DC voltage up to 600 V, as well as resistance and continuity.
Compact and user-friendly, this digital clamp meter is perfect for entry-level technicians across various applications to diagnose electrical problems such as overloading, short circuits, and faulty wiring. Additionally, this meter can measure AC up to 400 A, AC/DC voltage up to 600 V, as well as resistance and continuity.

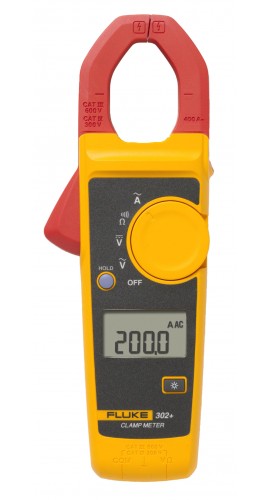

The Fluke 302+ is a high-quality average responding digital clamp meter made to fit the way you work. It is the perfect first pass troubleshooting tool: small enough to fit in a work bag, tough enough to withstand daily use, and extremely simple to use. All without compromising safety. Don't let its size fool you — for everyday applications, where True-RMS accuracy isn’t needed, the digital clamp meter delivers reliable measurements time after time. With its ability to measure AC current up to 400 amps, as well as AC/DC voltage and resistance, this digital clamp meter can handle a wide range of applications such as troubleshooting a breaker that keeps tripping, measuring circuit loads, identifying breakers, and diagnosing motor health.
Features
Applications
| Current | Range: 400 A Accuracy: 1.8% ±5 |
| Voltage | AC: Range: 600 V Accuracy: 1.5% ±5 DC: Range: 600 V Accuracy: 1% ±5 |
| Resistance | Range: 400/4000 Ω Accuracy: 1% ±5 Continuity: ≤70 Ω |
| Backlight Display | Yes |
| Data Hold | Yes |
| Screen Refresh Rate | >2 times/seconds |
| Test Leads | Yes (TL75) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Safety Rating | CAT III 600 V/CAT IV 300 V |
| Power | Battery: 2 x AAA batteries |
| Dimensions | 8.1 x 3 x 1.3" (207 x 75 x 34 mm) Jaw size: 1.2" (30 mm) |
