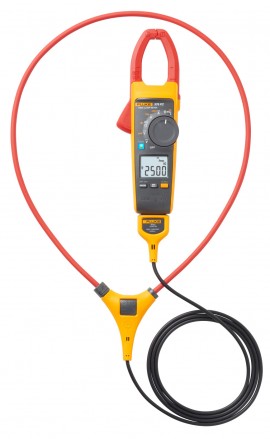

Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex

Model: 376 FC | Order No: 376FC | UPC: 095969798396

Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex-

Downloads:

More Fluke Products

Ask an Expert

Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex

Model: 376 FC | Order No: 376FC | UPC: 095969798396

Ideal for a wide range of current measurement situations, this True RMS clamp meter also comes equipped with the iFlex™ flexible current probe which increases flexibility and measures awkward sized conductors. Additionally, this tool can read up to 1000 V and 1000 A in both ac and dc modes.

Ideal for a wide range of current measurement situations, this True RMS clamp meter also comes equipped with the iFlex™ flexible current probe which increases flexibility and measures awkward sized conductors. Additionally, this tool can read up to 1000 V and 1000 A in both ac and dc modes.

Sale Price $559.99 USD
Regular Price $699.99 USD
Availability 34 in Stock
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 376 FC True RMS AC/DC Clamp Meter with iFlex

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 376 FC True RMS AC/DC Clamp Meter with iFlex

Recommended Accessories

Fluke AC220 SureGrip Alligator Clips-

Fluke AC220 SureGrip Alligator Clips

AC220

Fluke AC89 Heavy Duty Insulation Piercing Test Clip-

Fluke AC89 Heavy Duty Insulation Piercing Test Clip

AC89

Fluke C550 Premium Tool Bag-

Fluke C550 Premium Tool Bag

C550

Fluke TL75 Hard Point Test Lead Set-

Fluke TL75 Hard Point Test Lead Set

TL75

Fluke TP1 Slim Reach Test Probe Set-

Fluke TP1 Slim Reach Test Probe Set

TP1

Fluke 376 FC Specifications

AC Current via Jaw
Range 999.9 A
Resolution 0.1 A
Accuracy 2% ± 5 digits
AC Current via iFlex™
Range 2500 A
Resolution 0.1 A
Accuracy 3% ± 5 digits
DC Current
Range 999.9 A
Resolution 0.1 A
Accuracy 2% ± 5 digits
AC Voltage
Range 1000 V
Resolution 0.1 V
Accuracy 1.5% ± 5 digits
DC Voltage
Range 1000 V
Resolution 0.1 mV
Accuracy 1% ± 5 digits
Resistance
Range 60,000 Ω
Resolution 0.1 Ω
Accuracy 1% ± 5 digits
Frequency
Range 500 Hz
Resolution 0.1 Hz
Accuracy 0.5% ± 5 digits
Capacitance
Range 1000 µF
Resolution 1 µF
Accuracy 1% ± 4 digits
Mechanical Specifications
Wire Capacity 750 MCM or 2 to 500 MCM
Safety Rating CAT III 1000 V, CAT IV 600 V
Click here for complete specifications on the Fluke 376 FC

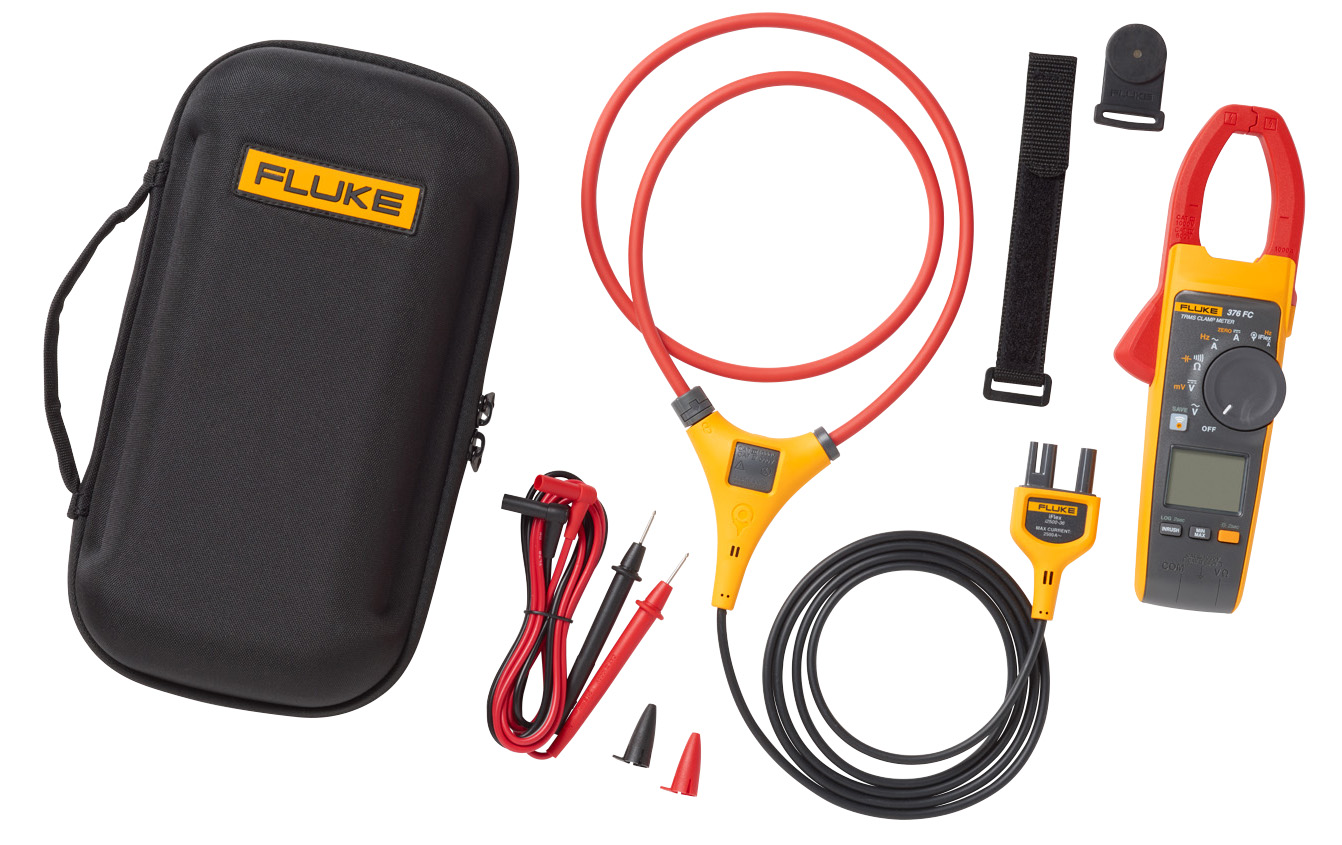

What's included with the Fluke 376 FC

  • Clamp Meter
  • 18" iFlex® Flexible Current Probe
  • TL75 Test Leads
  • TPAK Magnetic Hanging Strap
  • Carrying Case
  • 2 x AA Alkaline Batteries
  • Coated Instruction Card
  • Safety Information Sheet
  • Three-Year Warranty

Fluke 376 TRMS AC/DC Clamp Meter with iFlex Flexible Current Probe: Overview


This video will demonstrate how the iFlex flexible current probe can expand the capabilities of this TRMS AC/DC clamp meter. Additionally, users can measure this instrument is compatible with the Fluke Connect app as well.

How to Select a Fluke Clamp Meter


In this video, the user will receive tips on how to select the right clamp meter. Additionally, clamp meters help plant maintenance, process technicians, electricians and utility maintenance professionals alike to conduct troubleshooting and general maintenance in a wide variety of applications.

Getting to know the Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex


This video will serve as an overview of the Fluke 376 FC True RMS AC/DC Clamp Meter. The iFlex™ current probe can expand the capabilities of the clamp meter by getting into hard-to-reach places.
Brochure: Fluke clamp meter selection guide

Click on a category to view a selection of compatible accessories with the Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex.

Fluke TB25 Tool Bucket Organizer Bag, 5.2 gal TB25
Durable and rugged, this tool bucket organizer bag has a 5.2-gallon capacity that can be relied on to protect and safely carry a variety of test tools and accessories. With its waterproof hard bottom shell, this versatile organizer has a total of 28 pockets that can fit hand tools, DMMs, clamp meters, test probes, and more.



Fluke C550 Premium Tool Bag C550
Tool Bag with steel reinforced frame.



Fluke AC220 SureGrip Alligator Clips AC220
Designed to improve steadiness with rubber overmolded surfaces and finger-hugging curves. For use with TL222 and TL224 test leads.



Fluke AC87 Heavy Duty Bus Bar Clip Set AC87
Comes equipped with one pair (red, black) of flat, right angle design for connecting to bus bars, and CAT III 600 V, 5 A rating, CSA listed. Adjustable collar provides two ranges of jaw openings up to 1.81" (30 mm).



Fluke AC89 Heavy Duty Insulation Piercing Test Clip AC89
Single probe pierces 0.01 to 0.6" (0.25 to 1.5 mm) insulated wire with a small pin allows self-healing of the insulation, and 1000 V, 10 A maximum.



Fluke TL75 Hard Point Test Lead Set TL75
Offers the convenience of a test lead and probe-in-one unit with a variety of connections. One pair (red, black) comfort grip probe with PVC insulated right angel shrouded 0.16" (4 mm) banana plugs.



Fluke TP1 Slim Reach Test Probe Set TP1
Features hard stainless steel probe tips and one pair of slender probe bodies, which is ideal for probing closely spaced or recessed terminals. Additionally, it comes in a flat blade design to hold securely in blade type electrical wall sockets.



Ask a question about Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex

Customer Reviews for the Fluke 376 FC

Learn more about renting the Fluke 376 FC
Click Here

Fluke 376 FC Specifications

AC Current via Jaw
Range 999.9 A
Resolution 0.1 A
Accuracy 2% ± 5 digits
AC Current via iFlex™
Range 2500 A
Resolution 0.1 A
Accuracy 3% ± 5 digits
DC Current
Range 999.9 A
Resolution 0.1 A
Accuracy 2% ± 5 digits
AC Voltage
Range 1000 V
Resolution 0.1 V
Accuracy 1.5% ± 5 digits
DC Voltage
Range 1000 V
Resolution 0.1 mV
Accuracy 1% ± 5 digits
Resistance
Range 60,000 Ω
Resolution 0.1 Ω
Accuracy 1% ± 5 digits
Frequency
Range 500 Hz
Resolution 0.1 Hz
Accuracy 0.5% ± 5 digits
Capacitance
Range 1000 µF
Resolution 1 µF
Accuracy 1% ± 4 digits
Mechanical Specifications
Wire Capacity 750 MCM or 2 to 500 MCM
Safety Rating CAT III 1000 V, CAT IV 600 V
Click here for complete specifications on the Fluke 376 FC
Show More...

What's included with the Fluke 376 FC

  • Clamp Meter
  • 18" iFlex® Flexible Current Probe
  • TL75 Test Leads
  • TPAK Magnetic Hanging Strap
  • Carrying Case
  • 2 x AA Alkaline Batteries
  • Coated Instruction Card
  • Safety Information Sheet
  • Three-Year Warranty

Fluke 376 TRMS AC/DC Clamp Meter with iFlex Flexible Current Probe: Overview


This video will demonstrate how the iFlex flexible current probe can expand the capabilities of this TRMS AC/DC clamp meter. Additionally, users can measure this instrument is compatible with the Fluke Connect app as well.

How to Select a Fluke Clamp Meter


In this video, the user will receive tips on how to select the right clamp meter. Additionally, clamp meters help plant maintenance, process technicians, electricians and utility maintenance professionals alike to conduct troubleshooting and general maintenance in a wide variety of applications.

Getting to know the Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex


This video will serve as an overview of the Fluke 376 FC True RMS AC/DC Clamp Meter. The iFlex™ current probe can expand the capabilities of the clamp meter by getting into hard-to-reach places.
Brochure: Fluke clamp meter selection guide

Click on a category to view a selection of compatible accessories with the Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex.

Fluke TB25 Tool Bucket Organizer Bag, 5.2 gal TB25
Durable and rugged, this tool bucket organizer bag has a 5.2-gallon capacity that can be relied on to protect and safely carry a variety of test tools and accessories. With its waterproof hard bottom shell, this versatile organizer has a total of 28 pockets that can fit hand tools, DMMs, clamp meters, test probes, and more.



Fluke C550 Premium Tool Bag C550
Tool Bag with steel reinforced frame.



Fluke AC220 SureGrip Alligator Clips AC220
Designed to improve steadiness with rubber overmolded surfaces and finger-hugging curves. For use with TL222 and TL224 test leads.



Fluke AC87 Heavy Duty Bus Bar Clip Set AC87
Comes equipped with one pair (red, black) of flat, right angle design for connecting to bus bars, and CAT III 600 V, 5 A rating, CSA listed. Adjustable collar provides two ranges of jaw openings up to 1.81" (30 mm).



Fluke AC89 Heavy Duty Insulation Piercing Test Clip AC89
Single probe pierces 0.01 to 0.6" (0.25 to 1.5 mm) insulated wire with a small pin allows self-healing of the insulation, and 1000 V, 10 A maximum.



Fluke TL75 Hard Point Test Lead Set TL75
Offers the convenience of a test lead and probe-in-one unit with a variety of connections. One pair (red, black) comfort grip probe with PVC insulated right angel shrouded 0.16" (4 mm) banana plugs.



Fluke TP1 Slim Reach Test Probe Set TP1
Features hard stainless steel probe tips and one pair of slender probe bodies, which is ideal for probing closely spaced or recessed terminals. Additionally, it comes in a flat blade design to hold securely in blade type electrical wall sockets.



Ask a question about Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex

Customer Reviews for the Fluke 376 FC

More Fluke Products

Learn more about renting the Fluke 376 FC
Click Here


Fluke Connect is the best way to stay in contact with your team without leaving the field.
