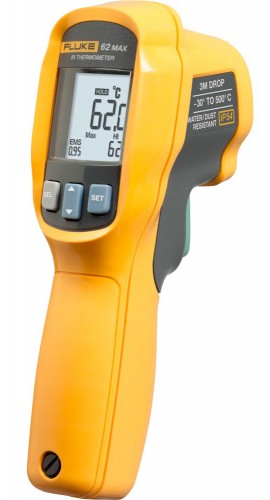

Perform non-contact temperature measurements on transformers, motors, pumps, panels, breakers, compressors, ducts, steam lines, valves, and vents with this infrared thermometer. It features a single laser with a distance to spot ratio of 10:1. Additionally, it's rugged design withstands a 9.8' (3 m) drop.
Perform non-contact temperature measurements on transformers, motors, pumps, panels, breakers, compressors, ducts, steam lines, valves, and vents with this infrared thermometer. It features a single laser with a distance to spot ratio of 10:1. Additionally, it's rugged design withstands a 9.8' (3 m) drop.
Features
Applications
| Temperature Range | -22 to 932°F (-30 to 500°C) |
| Accuracy | ±34.7°F (±1.5°C) or ±1.5% of reading, whichever is greater 14 to 32°F (-10 to 0°C): ±2.0 -22 to 14°F (-30 to -10°C): ±3.0 |
| Response Time (95%) | <500 ms (95% of reading) |
| Spectral Response | 8 to 14 microns |
| Emissivity | 0.10 to 1.00 |
| Optical Resolution | 10:1 (calculated at 90% energy) |
| Display Resolution | 0.2°F (0.1°C) |
| Repeatability of Readings | ±0.8% of reading or <±2°F (1.0°C), whichever is greater |
| Power | AA Battery |
| Battery Life | 10 hours with laser and backlight on |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C), without battery |
| Operating Humidity | 10% to 90% RH non-condensing at 86°F (30°C) |
| Operating Altitude | 6561.7' (2000 m) above mean sea level |
| Storage Altitude | 39,370.08' (12,000 m) above mean seal level |
| Drop Test | 9.8' (3 m) |
| Dimensions | 6.88 x 3.34 x 2.95" (175 x 85 x 75 mm) |
| Weight | 0.56 lbs (255 g) |
| IP Rating | IP 54 per IEC 60529 |
| Vibration and Shock | IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms |
| EMC | EN 61326-1:2006 EN 61326-2:2006 |
| Standards and Agency Approval | Compliance: EN/IEC 61010-1: 2001 Laser safety: FDA and EN 60825-1 Class II |
