Accurately test up to four units at the same time, all data is simultaneously logged. The portable unit is protected with a durable case and the integrated USB memory can record all the data from the monitors while reducing testing time and gas usage.
Accurately test up to four units at the same time, all data is simultaneously logged. The portable unit is protected with a durable case and the integrated USB memory can record all the data from the monitors while reducing testing time and gas usage.
Features

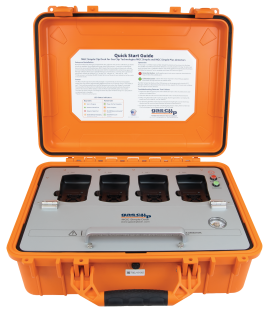

The MGC-S-DOCK is a portable docking station for bump testing and calibrating MGC Simple (MGC-S) and MGC Simple Plus (MGC-S-PLUS) detectors. Snap up to 4 detectors into the bays and push one button to test them all at once, with clear pass/fail indicators. Every bump test and calibration is logged for your safety records.
| Dimensions | 19.75 x 16 x 7.5" (50.2 x 40.6 x 19 cm) |
| Weight | 20 lb (9.07 kg) |
| Number of Bays | 4 |
| Compatibility | MGC Simple (MGC-S) and MGC Simple Plus (MGC-S-PLUS) detectors only |
| Tests Performed | Bump test and calibration |
| Information Stored | Bump test logs, calibration logs, individual detector event logs, firmware and detector configurations |
| Calibration Gas | Any 60 L or 120 L gas cylinder with a C-10 connector |
| Battery | Rechargeable lithium-ion, lasts about 4 months under typical use before needing a recharge |
| Charge Time | 4 to 6 hours |
| Certifications | EMC EN 61326-1:2013 FCC Part 15 ANSI C63.4:2009 |
| Warranty | 2 years |
