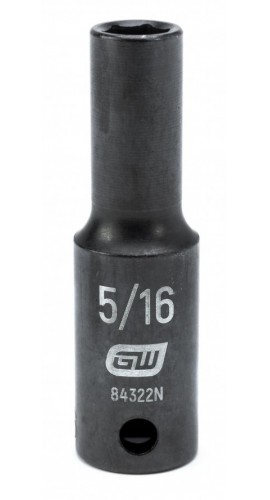

Provides high-visibility laser-etched markings, this 6-point deep impact SAE socket has a chrome molybdenum alloy material with a fastener size of 5/16".
Provides high-visibility laser-etched markings, this 6-point deep impact SAE socket has a chrome molybdenum alloy material with a fastener size of 5/16".
The 6-point deep impact ⅜" drive SAE socket 15/16" meets or exceeds ASME specifications.
Features
| Overall Length | 2.441" |
| SAE/Metric/Torx | SAE |
| ASME Specification | B107.2 |
| Fastener Size | 5/16" |
| Drive Type | 6 Point |
| Drive Tang Size | ⅜" |
| Length Format | Deep |
| Dim. A: Drive End | 0.701" |
| Dim. C: Overall Length | 2.441" |
| Dim. F: Length to Shoulder | 1.181" |
| Dim. D: Bolt Clearance | 0.276" |
| Dim. E: Wrench Depth | 0.472" |
| Dim. B: Wrench End | 0.504" |
| Finish | Black Oxide |
| Material | Chrome Molybdenum Alloy (Cr-Mo) |
| Weight | 0.13 lb |
