General Pipe Cleaners SLG-F-G Offers

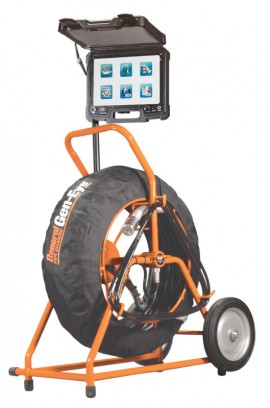

General Pipe Cleaners’ Gen-Eye Fusion™ video pipe inspection system combines a high-definition camera with advanced 1080p recording, touchscreen titling, built-in Wi-Fi streaming, and a Gen-Pack™ battery adapter for remote operation. The Fusion Command Module records to a USB flash drive or internal 64GB memory (up to ~32 hours of inspections) and supports pause-and-resume recording in a single file, plus snapshot capture during playback. A large 10.1" LCD touchscreen provides clear viewing and easy control in a durable compact case.

Built-in Wi-Fi streaming allows live video viewing on a phone or tablet using General’s free app, with options to record video or capture snapshots remotely. The touchscreen keyboard lets users add up to 12 lines of text (50 characters each) and includes templates for company name, project name, operator, pipe material, and pipe size. The Command Module is compatible with both General’s HD cameras and standard camera systems.

For easy locating, the optional Gen-Eye Hot-Spot™ pipe locator uses a total field antenna array and on-screen guidance to quickly pinpoint inspection cameras, sondes, power lines, and utility lines with high accuracy.

Features

• 10.1" LCD Screen – Large color monitor delivers crisp, clear high-definition images for easier inspections.
• High-Def Self-Leveling Color Camera – Keeps the image upright automatically. 1.625" diameter camera with 16 bright-white LEDs illuminates pipes up to 10".
• Advanced 1080p Video Recording – Records to USB flash drive, 64GB internal memory (~32 hrs), or internal hard drive up to 256GB (~125 hrs).
• Touchscreen Keyboard Titling – Add up to 12 text lines with 50 characters each. Includes templates for company, project, operator, pipe material, and pipe size.
• On-Screen Display – Shows date/time stamp, recording duration, distance counter (ft or m), storage media used, and remaining storage. Multi-language graphics.
• Built-in Voice Recording – Internal microphone and speaker allow voice commentary to be added to inspection videos.
• Wi-Fi Video Streaming – Stream live video to phone or tablet. Capture HD recordings and snapshots using General’s free mobile app.
• Gen-Pack™ Battery Adapter – Rear-mounted adapter allows operation in remote locations up to 12 hours. Fuse-protected. Compatible with Milwaukee M18 batteries (battery/charger not included).
• Gel-Rod Push Rod – Patented push rod with gel-filled cable to protect wiring from moisture. Dual-layer color design shows wear. Kevlar braid and fiberglass core provide strong push/pull power.
• Large Capacity Reel – Includes 200 ft Gel-Rod and self-leveling HD camera for inspecting 3"–10" drain lines. Optional 300 ft and 400 ft rods available. Durable steel frame operates vertically or horizontally.
• Removable Reel Cover – Heavy-duty poly canvas cover prevents dripping push rods on job sites. Velcro tabs allow quick removal for cleaning.
• Advanced Skid Designs – Keeps camera centered while reducing drag. Includes 2", 3", and 6" trap skids. Optional 3-in-1 skid (4", 6", 8") and roller skid for 6"–12" lines available.
