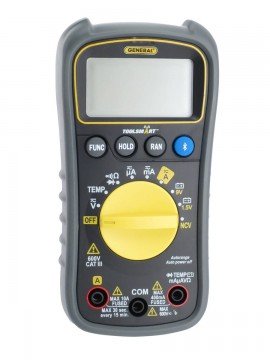

A versatile multimeter that measures voltage, current, resistance, temperature, and more with a simple turn of the dial. Bluetooth connectivity syncs readings to the free ToolSmart™ app, letting your smartphone act as a second screen.
A versatile multimeter that measures voltage, current, resistance, temperature, and more with a simple turn of the dial. Bluetooth connectivity syncs readings to the free ToolSmart™ app, letting your smartphone act as a second screen.
Features
| AC Voltage Measurement Ranges | 0 to 4V/40V/400V/600V |
| AC Voltage Measurement Accuracy/Resolution | ±(1% of reading + 10 digits)/1mV |
| DC Voltage Measurement Ranges | 0 to 400mV/4V/40V/400V/600V |
| DC Voltage Measurement Accuracy/Resolution | ±(0.8% of reading + 5 digits) in 600V range; ±(0.5% of reading + 2 digits) in other ranges/0.1mV |
| AC/DC Current Measurement Ranges | 0 to 400uA/4mA/40mA/400mA/10A |
| AC/DC Current Measurement Accuracy/Resolution | ±(2% of reading + 3 digits) in 10A range; ±(1.2% of reading + 6 digits) or better in other ranges/0.1μA |
| Resistance Measurement Ranges | 0 to 400Ω/4kΩ/40kΩ/400Ω/4MΩ/40MΩ |
| Resistance Measurement Accuracy/Resolution | ±(0.8% of reading + 3 digits), typical)/0.1Ω |
| Temperature Measurement Range | -4 to 1832°F (-20 to 1000°C) |
| Temperature Measurement Accuracy | ±(2.0% of reading + 2 digits) |
| Measurement Range of Included Thermocouple Probe | -4 to 500°F (-20 to 260°C) |
| Measurement Accuracy of Included Thermocouple Probe | ±(2% + 2 digits) |
| Continuity Threshold | <50Ω |
| Diode Integrity Range/Resolution | 0 to 2.7V/1mV |
| Battery Voltage Measurement Ranges | 0 to 9V, 0 to 1.5V |
| Battery Voltage Measurement Accuracy/Resolution | ±(0.8% of reading + 7 digits) in 9V position; ±(3% of reading + 5 digits) in 1.5V position/1mV |
| Safety Rating | CAT III 600V |
| NCV Detection Voltage and Distance | >110VACRMS at <1/4" (6 mm) |
| Bluetooth Range | 33' (10 m), max (unobstructed) |
| Maximum Input Voltage | 600VDC/ACRMS |
| Fuse Protection | 400mV/600V fuse for multi-function jack; 10A/600V fuse for 10A jack |
| Sampling Time | 3X/sec |
| Display | 3-3/4 digits, w/maximum count of 4000 |
| Low Battery Indication Threshold | <6.7VDC |
| Operating Temperature | 32 to 104°F (0 to 40°C) at <80%RH |
| Power Source | (1) “9V” battery (included) |
| Dimensions | 5.8 x 2.9 x 2.0 in. (148 x 74 x 50 mm) |
| Weight (including battery) | 8.2 oz. (232g) |
