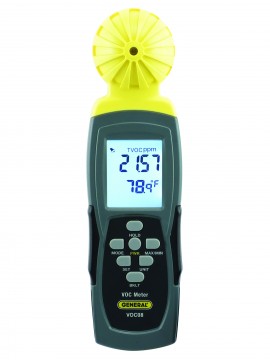

VOC08 Handheld VOC Meter with Datalogging makes approximate VOC (Volatile Organic Compound) measurements via a metal oxide semiconductor sensor versus the more expensive photo-ionization style meters. Unit detects ammonia, toluene, ethanol, hydrogen sulfide (H2S), and cigarette smoke. The VOC08 features the ability to store and recall up to 32,000 measurements, user-adjustable audible alarm, MIN/MAX recalls, a backlit dual line LCD, and more.
VOC08 Handheld VOC Meter with Datalogging makes approximate VOC (Volatile Organic Compound) measurements via a metal oxide semiconductor sensor versus the more expensive photo-ionization style meters. Unit detects ammonia, toluene, ethanol, hydrogen sulfide (H2S), and cigarette smoke. The VOC08 features the ability to store and recall up to 32,000 measurements, user-adjustable audible alarm, MIN/MAX recalls, a backlit dual line LCD, and more.
The VOC08 is ideal for making ballpark measurements of mixed-gas VOC levels as part of an indoor air quality (IAQ) maintenance and documentation program. The instrument is much less expensive than photo-ionization meters designed to make precise measurements of VOC levels from a single gas.
Features
Applications
| VOC Measurement | Range: 0 to 50 ppm Resolution: 0.01 ppm |
| VOC Warmup Time | 10 minutes first use, 2 minutes thereafter |
| VOC Sensor Type/Longevity | Metal-oxide semiconductor / 5 years (typical) |
| Temperature Measurement | Range: 14 to 122°F (-10 to 50°C) Accuracy: ±1.2°F (0.6°C) Resolution: 0.1° |
| RH Measurement | Range: 10 to 90%RH Accuracy: ±5% of reading at 77°F (25°C) ±7% of reading elsewhere in range Resolution: 0.1% RH |
| Measurement Range | Dew Point: -99.2 to 118°F (-73 to 47°C) Wet Bulb: 12.2 to 118.8°F (-11 to 48.2°C) |
| Data Logging Capacity | 32,004 points |
| Display Type/Size | Dual readout LCD / 2" (51mm) diagonal |
| Auto Power Off Trigger | 15 minutes of front-panel inactivity(can be disabled) |
| Operation Temperature | 32 to 122°F (0 to 50°C) at 0 to 95% RH, non-condensing |
| Dimensions | 8.3 x 2.4 x 1.0" (210 x 60 x 25 mm) |
| Weight | 7.2 oz. (204 g), including batteries |
| Power Source | (6) AAA batteries (not included) or included 110 V AC adapter |
| VOC Measurement | Range: 0 to 50 ppm Resolution: 0.01 ppm |
| VOC Warmup Time | 10 minutes first use, 2 minutes thereafter |
| VOC Sensor Type/Longevity | Metal-oxide semiconductor / 5 years (typical) |
| Temperature Measurement | Range: 14 to 122°F (-10 to 50°C) Accuracy: ±1.2°F (0.6°C) Resolution: 0.1° |
| RH Measurement | Range: 10 to 90%RH Accuracy: ±5% of reading at 77°F (25°C) ±7% of reading elsewhere in range Resolution: 0.1% RH |
| Measurement Range | Dew Point: -99.2 to 118°F (-73 to 47°C) Wet Bulb: 12.2 to 118.8°F (-11 to 48.2°C) |
| Data Logging Capacity | 32,004 points |
| Display Type/Size | Dual readout LCD / 2" (51mm) diagonal |
| Auto Power Off Trigger | 15 minutes of front-panel inactivity(can be disabled) |
| Operation Temperature | 32 to 122°F (0 to 50°C) at 0 to 95% RH, non-condensing |
| Dimensions | 8.3 x 2.4 x 1.0" (210 x 60 x 25 mm) |
| Weight | 7.2 oz. (204 g), including batteries |
| Power Source | (6) AAA batteries (not included) or included 110 V AC adapter |
