This small and easy to use meter is ideal for the measurement of insulation resistance of voltage-free devices and equipment with nominal voltages of up to 500V.
This small and easy to use meter is ideal for the measurement of insulation resistance of voltage-free devices and equipment with nominal voltages of up to 500V.

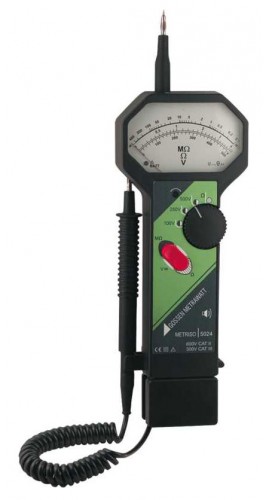

The Metriso 5024 is a battery operated analog insulation tester and voltmeter with low-resistance measuring capabilities. This compact, rugged and is well suited for use in harsh conditions or laboratory environment.
Features
| Insulation Resistance Measurement | |
|---|---|
| Measuring Voltages | 100/250/500V |
| Measuring Range | 0.1 to 400MΩ |
| Intrinsic Uncertainty | 2.5% |
| Overload | 600V AC |
| Measuring Current | > 1 mA |
| Short-Circuit Current | < 10 mA |
| Low-Resistance Measurement | |
| Measuring Voltage | 4.5V |
| Measuring Range | 0 to 4Ω |
| Intrinsic Uncertainty | 2.5% |
| Overload | 250V DC |
| Measuring Current | > 200 mA |
| Voltage Measurement | |
| DC/AC | 40 to 200 Hz |
| Measuring Range | 0 to 500V |
| Intrinsic Uncertainty | 2.5% |
| Overload | 600 V AC |
| Internal Resistance | 450Ω |
| Insulation Resistance Measurement | |
|---|---|
| Measuring Voltages | 100/250/500V |
| Measuring Range | 0.1 to 400MΩ |
| Intrinsic Uncertainty | 2.5% |
| Overload | 600V AC |
| Measuring Current | > 1 mA |
| Short-Circuit Current | < 10 mA |
| Low-Resistance Measurement | |
| Measuring Voltage | 4.5V |
| Measuring Range | 0 to 4Ω |
| Intrinsic Uncertainty | 2.5% |
| Overload | 250V DC |
| Measuring Current | > 200 mA |
| Voltage Measurement | |
| DC/AC | 40 to 200 Hz |
| Measuring Range | 0 to 500V |
| Intrinsic Uncertainty | 2.5% |
| Overload | 600 V AC |
| Internal Resistance | 450Ω |
