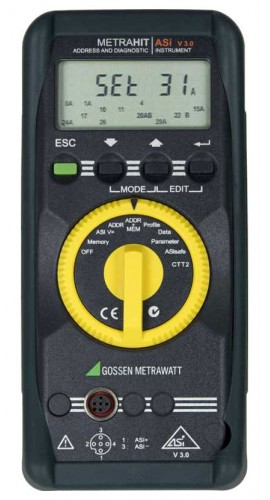

Gossen Metrawatt METRAHIT ASI 3.0 Offers

Set up and diagnosis ASi bus systems with ease with the Gossen Metrawatt METRAHIT ASI 3.0 ASi Bus Tester. Supporting ASi version 3.0, the addressing tool offers easy read-out and selection of slave addresses, measurement of slave voltage and operating current and input and output data testing. Slave profile storage offers easy operation.

Features

• Offers read-out and selection of slave addresses 0 to 31, 1A to 31A, or 1B to 31B for all AS interface slaves
• ASi addressing tool makes it easy to measure AS interface conductor voltage and ASi slave operating current
• Performs input and output data testing from digital and analog slaves per AS interface specification version 3.0 (including safety-relevant input slaves)
• Selectable slave parameters support testing and read-back of the parameter echo
• Read-outs include slave profile (IO, ID, ID2), ID1 code (with setting), data objects, identifiers and diagnostics for CTT2 slaves and safety code sequences for safety-relevant input slaves (ASIsafe)
• Reads and writes CTT2 slave cyclical input and output channels
• Stores full network configurations (slave profiles) for use as an addressing tool
