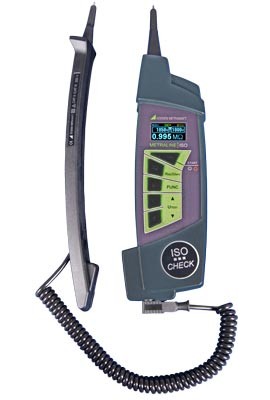

Gossen Metrawatt Metraline ISO-Check Insulation Tester, 50-1000 V

Model: METRALINE ISOCHECK | Order No: M507C

This tester allows you to measure insulation resistance with test voltages of 50 to 1000 V, and a measuring range of 100 kΩ through 1 GΩ.

This tester allows you to measure insulation resistance with test voltages of 50 to 1000 V, and a measuring range of 100 kΩ through 1 GΩ.

Sale Price $815.16 USD
Regular Price $849.13 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your M507C Gossen Metrawatt Metraline ISO-Check Insulation Tester

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your M507C Gossen Metrawatt Metraline ISO-Check Insulation Tester

Recommended Accessories

Gossen Metrawatt Z507A Battery Charger, 180 mA-

Gossen Metrawatt Z507A Battery Charger, 180 mA

Z507A

Gossen Metrawatt Z507B Rechargeable Batteries, Pack of 4-

Gossen Metrawatt Z507B Rechargeable Batteries, Pack of 4

Z507B

Gossen Metrawatt METRALINE ISOCHECK Offers

Features

  • Insulation resistance measurement with test voltages of 50 to 1000 V
  • Voltage measurement up to 600 V
  • Measurement of surge protection devices with test voltages of 50 to 1000 V
  • Table of common varistors can be displayed
  • Digital display, backlit color OLED display
  • Indication of dangerous touch voltage
  • LED for measurement point illumination
  • Patented means of securing test probes
  • Compact and rugged: For service calls under harsh conditions and laboratory use

Applications

  • Measurement of insulation resistance at voltage-free devices and systems, up to 1000 V depending upon variant
  • Measurement of surge protection devices, up to 1000 V depending upon variant
  • Checking of test objects for absence of voltage

Gossen Metrawatt METRALINE ISOCHECK Specifications

Operating Temperature 0 to 40°C
Relative Humidity max. 85%, no condensation allowed
Power Supply 4 ea. AAA (LR03), 1.5 V alkaline or 1.2V NIMH (with at least 750 mAh)
Display OLED, multicolored, graphic
Dimensions approx. 260 x 70 x 40 mm
Weight approx. 0.36 kg with batteries
Protection Housing: IP43
Click here for complete specifications on the Gossen Metrawatt METRALINE ISOCHECK

What's included with the Gossen Metrawatt METRALINE ISOCHECK

  • Tester
  • Factory Calibrated Certificate
  • Probes
  • 4 x Batteries
  • CD ROM
  • Operating Instructions

Click on a category to view a selection of compatible accessories with the Gossen Metrawatt Metraline ISO-Check Insulation Tester, 50-1000 V.

Gossen Metrawatt Z507A Battery Charger, 180 mA Z507A
Charger used for the rechargeable batteries of the Metraline Check Series.



Gossen Metrawatt Z507B Rechargeable Batteries, Pack of 4 Z507B
Optional batteries for the Metraline Check Testers.
