Cost effective stainless steel flowmeters for measuring the flow of water, fuels and other low viscosity liquids in pipes.
Cost effective stainless steel flowmeters for measuring the flow of water, fuels and other low viscosity liquids in pipes.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

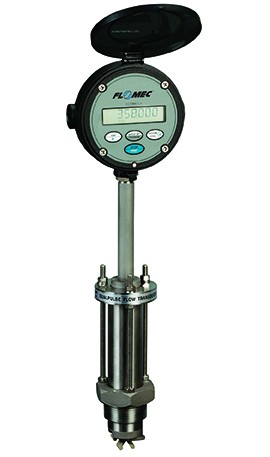

DP490 & DP525 are cost effective stainless steel flowmeters for measuring the flow of water, fuels & other low viscosity liquids in pipes sizes 1.5"~100" (40~2500mm). Insertion flowmeters are installed with the metering head 1/8th into the pipe resulting in very little pressure drop. They do not require external power when used with the FLOMEC® rate totalizers, however some options such as high temperature & non-magnetic models require external power.
Features
Applications
Ideal for the following applications: HVAC, Hot and Chilled Water, Fire Systems, Water Distribution Management and Treatment, Boiler Feed Water, Hydrant Testing.
| Size | 1-1/2in to 36in pipes (40-900mm) |
| Body Materials | Stainless Steel |
| Rotor and Bearing Materials | PVDF rotor with 316 stainless steel rotor shaft (standard) |
| O-Ring Materials | FKM (Viton™) standard, 5 to 400º F (-15 to +204º C) |
| Temperature Limits | 212º F (100º C) standard, ( 185º F [85º C] maximum for non magnetic output type 4 ) |
| Process Connections | BSPT male thread - 1 1/2" |
| Pick-Up Type | NPN open collector & Reed switch |
| Electrical Connections | Stem kit - 1" NPT (for G5, G6 & G7) |
| Included Option | Rate / Total Display w / 4-20mA out |
| Size | 1-1/2in to 36in pipes (40-900mm) |
| Body Materials | Stainless Steel |
| Rotor and Bearing Materials | PVDF rotor with 316 stainless steel rotor shaft (standard) |
| O-Ring Materials | FKM (Viton™) standard, 5 to 400º F (-15 to +204º C) |
| Temperature Limits | 212º F (100º C) standard, ( 185º F [85º C] maximum for non magnetic output type 4 ) |
| Process Connections | BSPT male thread - 1 1/2" |
| Pick-Up Type | NPN open collector & Reed switch |
| Electrical Connections | Stem kit - 1" NPT (for G5, G6 & G7) |
| Included Option | Rate / Total Display w / 4-20mA out |
