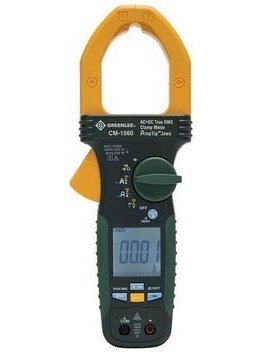

Greenlee CM-1560 AC/DC Current Multimeter with Clamp, 1,000 A

Model: CM-1560 | UPC: 783310021889

Greenlee CM-1560 AC/DC Current Multimeter with Clamp, 1,000 A-

Downloads:

More Greenlee Products

Ask an Expert

Greenlee CM-1560 AC/DC Current Multimeter with Clamp, 1,000 A

Model: CM-1560 | UPC: 783310021889

This multimeter measures both AC current and DC current. It's equipped with AmpTip™ for greater accuracy.

This multimeter measures both AC current and DC current. It's equipped with AmpTip™ for greater accuracy.

Sale Price $333.12 USD
Regular Price $411.26 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your CM-1560 AC/DC Current Multimeter with Clamp

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your CM-1560 AC/DC Current Multimeter with Clamp

Greenlee CM-1560 Offers

Use the Greenlee CM-1560 AC/DC Current Multimeter with Clamp to get fast, accurate readings. In addition to current, it also measures voltage, resistance, capacitance and frequency. Advanced features, such as an AmpTip™, a peak-RMS tester and a clamp flashlight, help make operation simple.

Features

  • Device measures AC current, DC current, DC voltage, resistance, capacitance and frequency
  • Takes voltage measurements with a digital low pass filter to increase accuracy on variable frequency drives
  • AmpTip™ provides reliable readings on small wires and low currents
  • Voltage detection modes: non-contact and single test lead
  • Tests continuity and diodes
  • Peak-RMS measures motor inrush current
  • Captures current or voltage peaks as short as 5 milliseconds
  • Equipped with clamp, clamp flashlight, data hold and backlight and relative modes
  • Records minimum, maximum and average readings

Greenlee CM-1560 Specifications

Amperage 60, 600, 1,000 A AC/DC
Voltage 600, 1,000 VAC/VDC
True Power AC/DC true RMS
Display LCD (6,000 count)
Jaw Opening 2" (51 mm)
Frequency Rating Voltage: 50/60 Hz; current: 40 to 400 Hz
Resistance 600, 6k, 60k Ω
Measurement Category CAT III 1,000 V; CAT IV 600 V
Standard CAT IV, C/US UL listed, CE
Manufacturer Warranty Lifetime
Click here for complete specifications on the Greenlee CM-1560

What's included with the Greenlee CM-1560

  • Multimeter
  • Test Leads
  • Carrying Case
  • 2 x 1.5 V AA Batteries
