This digital multimeter measures voltage, current, resistance and frequency. It tests continuity and diodes.
This digital multimeter measures voltage, current, resistance and frequency. It tests continuity and diodes.

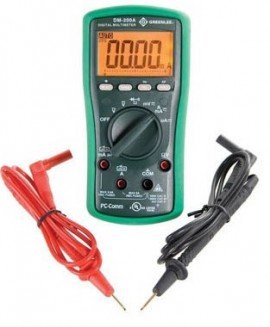

Equipped with a host of advanced features, this Greenlee DM-200A Digital Multimeter is able to accurately measure voltage, current, resistance and frequency. It features a backlit LCD, so it's easy to see the readings in low-light conditions, and it has Beep-Jack™ audible indicators.
Features
| Amperage Measurement | 600, 6,000 μA; 60, 600 mA; 6, 8 A |
| Capacitance | 60, 600 nF; 6, 60, 600, 3,000 μF |
| Frequency Measurement | 10 Hz to 50 kHz sine wave; 5 Hz to 999.9 kHz logic level square wave |
| Measurement Category | CAT IV, 300 V; CAT III, 600 V; CAT II 1,000 V |
| Resistance Measurement | 600 Ω; 6, 60, 600 kΩ; 6, 60 MΩ |
| Display | Backlit LCD (6,000 count) |
| Standard | CAT IV, CAT II, C/US UL listed, CAT III, CE listed |
| Temperature Rating | Type-K: -58 to 1,832°F (-50 to 1,000°C) |
| Voltage Measurement | 60, 600 mV; 6, 60, 600, 1,000 V |
| Manufacturer Warranty | Lifetime limited |
| Amperage Measurement | 600, 6,000 μA; 60, 600 mA; 6, 8 A |
| Capacitance | 60, 600 nF; 6, 60, 600, 3,000 μF |
| Frequency Measurement | 10 Hz to 50 kHz sine wave; 5 Hz to 999.9 kHz logic level square wave |
| Measurement Category | CAT IV, 300 V; CAT III, 600 V; CAT II 1,000 V |
| Resistance Measurement | 600 Ω; 6, 60, 600 kΩ; 6, 60 MΩ |
| Display | Backlit LCD (6,000 count) |
| Standard | CAT IV, CAT II, C/US UL listed, CAT III, CE listed |
| Temperature Rating | Type-K: -58 to 1,832°F (-50 to 1,000°C) |
| Voltage Measurement | 60, 600 mV; 6, 60, 600, 1,000 V |
| Manufacturer Warranty | Lifetime limited |
