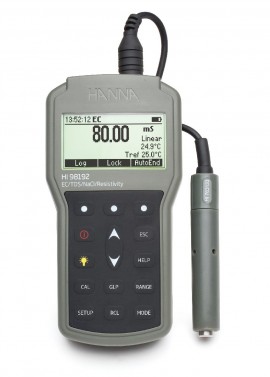

This heavy-duty conductivity meter is designed to provide laboratory results and accuracy under harsh industrial conditions. Offering three salinity modes: % NaCl, Practical salinity and Natural seawater scale. This meter is supplied with all accessories to perform the necessary measurememnts.
This heavy-duty conductivity meter is designed to provide laboratory results and accuracy under harsh industrial conditions. Offering three salinity modes: % NaCl, Practical salinity and Natural seawater scale. This meter is supplied with all accessories to perform the necessary measurememnts.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Electrodes category for similar products.
Or let's do a search and help you find what you need:
Features
Applications
| EC Range | 0.000 to 9.999 μS/cm*; 10.00 to 99.99 μS/cm; 100.0 to 999.9 μS/cm; 1.000 to 9.999 mS/cm; 10.00 to 99.99 mS/cm; 100.0 to 1000.0 mS/cm (actual conductivity; temperature compensated to 400 mS/cm) |
| EC Resolution | 0.001 μS/cm; 0.01 μS/cm; 0.1 μS/cm; 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm |
| EC Accuracy | ±1% of reading (±0.01 μS/cm or 1 digit, whichever is greater) |
| EC Calibration | automatic up to five points with seven memorized standards (0.00 μS/cm, 84.0 μS/cm, 1.413 mS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm) |
| TDS Range | 0.00 to 99.99 ppm; 100.0 to 999.9 ppm; 1.000 to 9.999 ppt (g/L); 10.00 to 99.99 ppt (g/L); 100.0 to 400.0 ppt (g/L) |
| TDS Resolution | 0.01 ppm; 0.1 ppm; 0.001 ppt (g/L); 0.01 ppt (g/L); 0.1 ppt (g/L) |
| TDS Accuracy | ±1% of reading (±0.05 mg/L (ppm) or 1 digit, whichever is greater) |
| Resistivity Range | 1.0 to 99.9 Ω•cm; 100 to 999 Ω•cm; 1.00 to 9.99 KΩ•cm; 10.0 to 99.9 KΩ•cm; 100 to 999 KΩ•cm; 1.00 to 9.99 MΩ•cm; 10.0 to 100.0 MΩ•cm |
| Resistivity Resolution | 0.1 Ω•cm; 1 Ω•cm; 0.01 KΩ•cm; 0.1 KΩ•cm; 1 KΩ•cm; 0.01 MΩ•cm; 0.1 MΩ•cm* |
| Resistivity Accuracy | ±1% of reading (±10 Ω or 1 digit, whichever is greater) |
| Salinity Range | % NaCl : 0.0 to 400.0%; practical salinity: 0.00 to 42.00 (PSU); natural seawater scale - UNESCO 1966: 0.00 to 80.00 (ppt) |
| Salinity Resolution | 0.1%; 0.01 |
| Salinity Accuracy | ±1% of reading |
| Salinity Calibration | max. one point only in % range (with HI7037 standard); use conductivity calibration for all other ranges |
| Temperature Range | -20.0 to 120.0°C (-4.0 to 248.0°F) |
| Temperature Resolution | 0.1°C (0.1°F) |
| Temperature Accuracy | ±0.2°C; ±0.4°F (excluding probe error) |
| Temperature Calibration | one or two points |
| Temperature Compensation | noTC, Linear (-20 to 120 °C; -4 to 248°F), Non Linear - ISO/DIN 7888 (-0 to 36 °C; 32 to 96.8°F) |
| Measurement Modes | autorange, autoend, lock and fixed range |
| Reference Temperature | 15°C, 20°C and 25°C |
| Temperature Coefficient | 0.00 to 10.00 %/°C |
| TDS Factor | 0.40 to 1.00 |
| Electrode/Probe | HI763133, four ring conductivity/TDS probe with internal temperature sensor and 4 m (13.2') cable (included) |
| Log-on-demand | 400 samples; lot logging: 5, 10, 30 sec, 1, 2, 5, 10, 15, 30, 60, 120, 180 min (max 1000 samples) |
| Memorized Profiles | up to 10 |
| PC Connectivity | opto-isolated USB with optional HI 92000 software and micro USB cable |
| Battery Type/Life | 1.5V AA batteries (4) / approximately 100 hours of continuous use (without backlight), 25 hours with backlight |
| Auto-off | user selectable: 5, 10, 30, 60 min or can be disabled |
| Environment | 0 to 50°C (32 to 122°F); RH 100% (IP67) |
| Dimensions | 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4") |
| Weight | 400 g (14.2 oz.) |
| Notes | *The 0.001 μS/cm EC range and 0.1 MΩ•cm not available with supplied probe |
| EC Range | 0.000 to 9.999 μS/cm*; 10.00 to 99.99 μS/cm; 100.0 to 999.9 μS/cm; 1.000 to 9.999 mS/cm; 10.00 to 99.99 mS/cm; 100.0 to 1000.0 mS/cm (actual conductivity; temperature compensated to 400 mS/cm) |
| EC Resolution | 0.001 μS/cm; 0.01 μS/cm; 0.1 μS/cm; 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm |
| EC Accuracy | ±1% of reading (±0.01 μS/cm or 1 digit, whichever is greater) |
| EC Calibration | automatic up to five points with seven memorized standards (0.00 μS/cm, 84.0 μS/cm, 1.413 mS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm) |
| TDS Range | 0.00 to 99.99 ppm; 100.0 to 999.9 ppm; 1.000 to 9.999 ppt (g/L); 10.00 to 99.99 ppt (g/L); 100.0 to 400.0 ppt (g/L) |
| TDS Resolution | 0.01 ppm; 0.1 ppm; 0.001 ppt (g/L); 0.01 ppt (g/L); 0.1 ppt (g/L) |
| TDS Accuracy | ±1% of reading (±0.05 mg/L (ppm) or 1 digit, whichever is greater) |
| Resistivity Range | 1.0 to 99.9 Ω•cm; 100 to 999 Ω•cm; 1.00 to 9.99 KΩ•cm; 10.0 to 99.9 KΩ•cm; 100 to 999 KΩ•cm; 1.00 to 9.99 MΩ•cm; 10.0 to 100.0 MΩ•cm |
| Resistivity Resolution | 0.1 Ω•cm; 1 Ω•cm; 0.01 KΩ•cm; 0.1 KΩ•cm; 1 KΩ•cm; 0.01 MΩ•cm; 0.1 MΩ•cm* |
| Resistivity Accuracy | ±1% of reading (±10 Ω or 1 digit, whichever is greater) |
| Salinity Range | % NaCl : 0.0 to 400.0%; practical salinity: 0.00 to 42.00 (PSU); natural seawater scale - UNESCO 1966: 0.00 to 80.00 (ppt) |
| Salinity Resolution | 0.1%; 0.01 |
| Salinity Accuracy | ±1% of reading |
| Salinity Calibration | max. one point only in % range (with HI7037 standard); use conductivity calibration for all other ranges |
| Temperature Range | -20.0 to 120.0°C (-4.0 to 248.0°F) |
| Temperature Resolution | 0.1°C (0.1°F) |
| Temperature Accuracy | ±0.2°C; ±0.4°F (excluding probe error) |
| Temperature Calibration | one or two points |
| Temperature Compensation | noTC, Linear (-20 to 120 °C; -4 to 248°F), Non Linear - ISO/DIN 7888 (-0 to 36 °C; 32 to 96.8°F) |
| Measurement Modes | autorange, autoend, lock and fixed range |
| Reference Temperature | 15°C, 20°C and 25°C |
| Temperature Coefficient | 0.00 to 10.00 %/°C |
| TDS Factor | 0.40 to 1.00 |
| Electrode/Probe | HI763133, four ring conductivity/TDS probe with internal temperature sensor and 4 m (13.2') cable (included) |
| Log-on-demand | 400 samples; lot logging: 5, 10, 30 sec, 1, 2, 5, 10, 15, 30, 60, 120, 180 min (max 1000 samples) |
| Memorized Profiles | up to 10 |
| PC Connectivity | opto-isolated USB with optional HI 92000 software and micro USB cable |
| Battery Type/Life | 1.5V AA batteries (4) / approximately 100 hours of continuous use (without backlight), 25 hours with backlight |
| Auto-off | user selectable: 5, 10, 30, 60 min or can be disabled |
| Environment | 0 to 50°C (32 to 122°F); RH 100% (IP67) |
| Dimensions | 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4") |
| Weight | 400 g (14.2 oz.) |
| Notes | *The 0.001 μS/cm EC range and 0.1 MΩ•cm not available with supplied probe |
