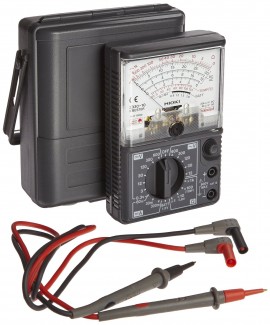

The Hioki 3030-10 is an analog multimeter that measures voltage, current and resistance, with robust construction that withstands a 1 meter drop onto a concrete floor.
The Hioki 3030-10 is an analog multimeter that measures voltage, current and resistance, with robust construction that withstands a 1 meter drop onto a concrete floor.
Features
| DC Voltage Range | 0.3 V (16.7 k-ohm/V), 3/12/30/120/300/600 V (20 k-ohm/V) Accuracy: ±2.5 % f.s. |
| AC Voltage Range | 12 V (9 k-ohm/V) Accuracy: ±4 % f.s. 30/120/300/600 V (9 k-ohm/V) Accuracy: ±2.5 % f.s. Average rectifier effective value |
| Resistance Range | 0 to 3 k-ohm (center scale 30 ohm), R x 1, R x 10, R x 100, R x 1 k ±3 % of scale length |
| DC Current Range | 60 µA/30 m/300 mA (150 mV internal voltage drop) Accuracy: ±3 % f.s. |
| Battery Check | 0.9 to 1.8 V, load resistance 10 ohm |
| Temperature | -50 to 150 °C (9021-01 Thermister Temperature Probe is necessary, sold separately) |
| Safety Considerations | Complies with EN61010-1: 1992+A2: 1995, EN61010-2-031: 1994, Installation Category III (anticipated transient overvoltage 6000 V), Pollution Degree 2 |
| Power Supply | 2 x R6P (AA) batteries |
| Dimensions | 3.74 x 5.55 x 1.54" (95 x 141 x 39 mm) |
| Weight | 9.9 oz (280 g) |
