Use this cable testing kit to make sure your wires are in working order. The kit comes with a handheld cable tester.
Use this cable testing kit to make sure your wires are in working order. The kit comes with a handheld cable tester.

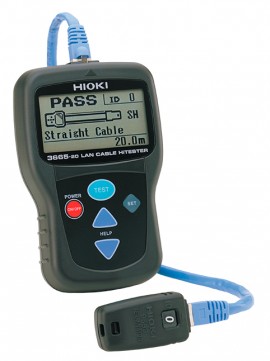

Help identify the location of a wire break with the Hioki 3665-20-01 LAN Cable Tester Kit. This Hioki cable kit comes with a handheld cable tester to determine length, connections and more. It features an easy-to-read display, and the LAN cable kit includes 4 extra terminators for direction checks.
Features
Applications
| Measurable Cable | Twisted-pair cable, characteristic impedance: 100 Ω, shielded and unshielded, CAT 3, 4, 5, 5e and 6 |
| Compatible Connectors | RJ-45 Plugs |
| Wire Map Test | Detectable Errors: Open, Short, Reversed, Transposed, Split Pairs and Other Incorrect Wiring Wiring Condition and Shielding Can be Confirmed Using the Terminator 9690 |
| Cable Length Measurement | Measurable Lengths: 2 to 300 m (6.6 to 984 ft) Measurement Accuracy: ± 4% rdg. ± 1 m (3.3 ft) Display Resolution: 0.1 m (0.3 ft) |
| Direction Measurement | Up to 21 cables can be identified using the supplied Terminator 9690 and optional Models 9690-01 to 9690-04 |
| Power Supply | 2 x LR6 AA Alkaline Battery, 1.4 VA max Continuous Use: 50 Hours at measurement Interval of 1 Minute |
| Dimensions | 85 x 130 x 33 mm (3.35 x 5.12 x 1.30") |
| Mass | 160 g (5.6 oz) |
| Measurable Cable | Twisted-pair cable, characteristic impedance: 100 Ω, shielded and unshielded, CAT 3, 4, 5, 5e and 6 |
| Compatible Connectors | RJ-45 Plugs |
| Wire Map Test | Detectable Errors: Open, Short, Reversed, Transposed, Split Pairs and Other Incorrect Wiring Wiring Condition and Shielding Can be Confirmed Using the Terminator 9690 |
| Cable Length Measurement | Measurable Lengths: 2 to 300 m (6.6 to 984 ft) Measurement Accuracy: ± 4% rdg. ± 1 m (3.3 ft) Display Resolution: 0.1 m (0.3 ft) |
| Direction Measurement | Up to 21 cables can be identified using the supplied Terminator 9690 and optional Models 9690-01 to 9690-04 |
| Power Supply | 2 x LR6 AA Alkaline Battery, 1.4 VA max Continuous Use: 50 Hours at measurement Interval of 1 Minute |
| Dimensions | 85 x 130 x 33 mm (3.35 x 5.12 x 1.30") |
| Mass | 160 g (5.6 oz) |
