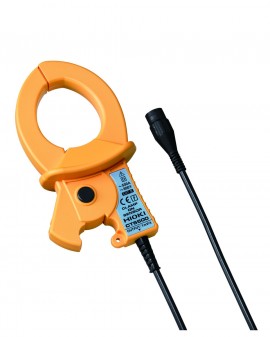

Compatible with LR5051-20 and LR8513 clamp loggers, this current clamp measures alternating current on a live power line without cutting the wire. In addition, easy operation and connection make it ideal for measuring alternating current and power in various fields.
Compatible with LR5051-20 and LR8513 clamp loggers, this current clamp measures alternating current on a live power line without cutting the wire. In addition, easy operation and connection make it ideal for measuring alternating current and power in various fields.
| Rated Primary Current | 500 A AC |
| Output Voltage | 1 mV AC/A |
| Amplitude | Accuracy: ±1.5% rdg. ±0.03% full scale (full scale: 500 A, 50 to 60 Hz, at the center of the jaw) Frequency characteristics: Within ±5% at 40 Hz to 1 kHz (deviation from amplitude accuracy) |
| Effect of Conductor Position | Within ±3% (deviation from center) |
| Maximum Input Current | 600 A continuous (at 45 to 66 Hz, ambient temperature 50°C) |
| Temperature Coefficient | 0.05% rdg/°C |
| Dielectric Strength | 7060 Vrms AC (sensitive current 1 mA), 50/60 Hz, 1 minute, between the jaws and the BNC connector |
| Maximum Rated Voltage to Earth | 600 Vrms or lower, measurement Category III (anticipated transient overvoltage: 6000 V) |
| Environmental Conditions | Operating temperature and humidity: 32 to 122°F (0 to 50°C), 80% RH or lower (non-condensing) Storage temperature and humidity: 14 to 140°F (-10 to 60°C), 80% RH or lower (non-condensing) Operating environment: Altitude up to 6562' (2000 m), Pollution Degree 2, indoors |
| Applicable Standards Safety | EN61010 EMC EN61326 (Class A) |
| Measurable Conductor Diameter | Ø1.81" (46 mm) or less |
| Cable Length | Approximately 118.11" (3 m) |
| Dimensions | Approximately 3.07 x 5.98 x 1.65" (78 x 152 x 42 mm) |
| Weight | Approximately 12.7 oz (360 g) |
