With a clamp-on design and 500 A rated current, this current probe lets you take highly precise measurements. The probe is great for testing power efficiency.
With a clamp-on design and 500 A rated current, this current probe lets you take highly precise measurements. The probe is great for testing power efficiency.

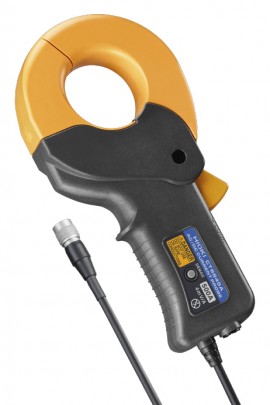

Great for power meters, high-performance oscilloscopes and memory recorders, this Hioki CT6845 Clamp-On AC/DC Current Probe offers precise measurements of 500 A currents. The clamp-on design provides simple attachment, and the probe is perfect for checking the functionality of devices that operate in extreme temperature ranges.
Features
| Rated Current | 500 A AC/DC |
| Maximum Allowable Input | 1,000 A DC (required derating) |
| Frequency | DC to 100 kHz |
| Phase | DC to 100 kHz |
| Amplitude | DC ±0.3% reading, ±0.02% of full scale |
| Output Voltage | 4 mV/A |
| Core Diameter | φ1.97" (50 mm) |
| Operating Temperature | -40 to 185°F (-40 to 85°C) |
| Power Supply | ±11 to ±15 VDC (power supplied via the sensor unit) |
| CE Compliant | Yes |
| Compatibility | Hioki PW6001, PW3390, 3390, 3193, 8971 and 8940 models |
| Product Length | 1.38" (35 mm) main unit, 9.84' (3 m) cable |
| Product Width | 9.37" (238 mm) |
| Product Height | 4.57" (116 mm) |
| Product Weight | 30.3 oz (860 g) |
