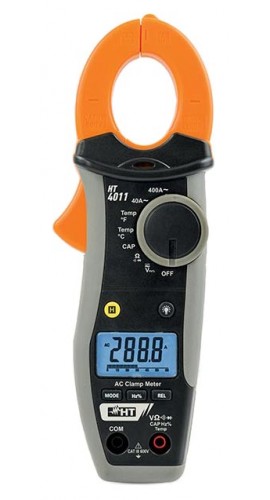

HT Instruments HT4011 AC Clamp Meter, CAT III 600 V

Model: HT4011

This meter complies with IEC/EN61010-1 under CAT III 600 V and is suitable for measurements both in civil and industrial sites.

This meter complies with IEC/EN61010-1 under CAT III 600 V and is suitable for measurements both in civil and industrial sites.

Your Price $99.00 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your HT4011 AC Clamp Meter

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your HT4011 AC Clamp Meter

HT Instruments HT4011 Offers

Features

  • AC Current up to 400 A
  • DC/AC voltage up to 600 V
  • "Voltsense" feature for AC voltage detection
  • Resistance
  • Continuity test with buzzer
  • Frequency with test leads
  • Capacitance
  • Diode test
  • Duty cycle
  • Temperature with type K probe
  • Autorange
  • Data hold
  • Relative measurement
  • Auto power off

Applications

  • Plant maintenance
  • Electrical troubleshooting
  • Automotive

HT Instruments HT4011 Specifications

DC Voltage
Range 400 mV, 4.000, 40.00, 400.0, 600.0 V
Resolution 400 mV: 0.1 mV
4.000 V: 0.001 V
40.00 V: 0.01 V
400.0, 600.0 V: 0.1 V
Accuracy 400 mV: ±(0.8%rdg + 2dgt)
4.000, 40.00, 400.0 V: ±(1.5%rdg + 2dgt)
600.0 V: ±(2.0%rdg + 2dgt)
Input Impedance 10 MΩ
Overload Protection 600 V DC/ACrms
AC Voltage
Range 4.000, 40.00, 400.0, 600 V
Resolution 4.000 V: 0.001 V
40.00 V: 0.01 V
400.0 V: 0.1 V
600 V: 1 V
Accuracy 4.000, 40.00, 400.0 V: ±(1.8%rdg + 8dgt)
600 V: ±(2.5%rdg + 8dgt)
Input Impedance 10 MΩ
Bandwidth 50 ÷ 400 Hz
Overload Protection 600 V DC/ACrms
Click here for complete specifications on the HT Instruments HT4011

What's included with the HT Instruments HT4011

  • AC Clamp Meter
  • Pair of 2 mm Test Leads
  • Adapter
  • K-Type Wire Probe
  • Carrying Bag
  • Batteries
  • User Manual
