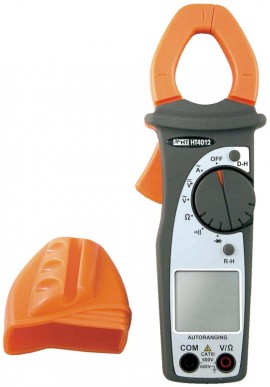

Hold test leads while measuring and have one hand free to work thanks to the practical rubber cap mounted on the jaw. Measure AC current, AC/DC voltage, resistance and continuity.
Hold test leads while measuring and have one hand free to work thanks to the practical rubber cap mounted on the jaw. Measure AC current, AC/DC voltage, resistance and continuity.
Features
Applications
| DC Voltage | |
| Range | 2, 20, 200, 600 V |
| Resolution | 2 V: 1 mV 20 V: 10 mV 200 V: 100 mV 600 V: 1 V |
| Accuracy | 2, 20, 200 V: ±(0.8%rdg + 2gt) 600 V: ±(1.0%rdg + 2gt) |
| Overload Protection | 600 V DC/AC RMS |
| AC Voltage | |
| Range | 2, 20, 200, 600 V |
| Resolution | 2 V: 1 mV 20 V: 10 mV 200 V: 100 mV 600 V: 1 V |
| Accuracy | 2, 20, 200 V: ±(1.0%rdg + 3gt) 600 V: ±(1.2%rdg + 3gt) |
| Overload Protection | 600 V DC/AC RMS |
| General Specifications | |
| Operating Temperature | 41 to 104°F (5 to 40°C) R.H.: 0 to 80% |
| Storage Temperature | 14 to 140°F (-10 to 60°C) R.H.: 0 to 70% |
| DC Voltage | |
| Range | 2, 20, 200, 600 V |
| Resolution | 2 V: 1 mV 20 V: 10 mV 200 V: 100 mV 600 V: 1 V |
| Accuracy | 2, 20, 200 V: ±(0.8%rdg + 2gt) 600 V: ±(1.0%rdg + 2gt) |
| Overload Protection | 600 V DC/AC RMS |
| AC Voltage | |
| Range | 2, 20, 200, 600 V |
| Resolution | 2 V: 1 mV 20 V: 10 mV 200 V: 100 mV 600 V: 1 V |
| Accuracy | 2, 20, 200 V: ±(1.0%rdg + 3gt) 600 V: ±(1.2%rdg + 3gt) |
| Overload Protection | 600 V DC/AC RMS |
| General Specifications | |
| Operating Temperature | 41 to 104°F (5 to 40°C) R.H.: 0 to 80% |
| Storage Temperature | 14 to 140°F (-10 to 60°C) R.H.: 0 to 70% |
