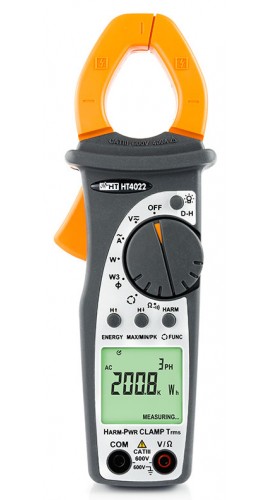

HT Instruments HT4022 AC TRMS Clamp Meter with Power/Harmonic Measurements

Model: HT4022

Measure single and three phase systems and with this meter that takes AC Current, AC/DC Voltage, frequency, resistance and continuity measurements. Perform measures of active, reactive, apparent power and power factor.

Measure single and three phase systems and with this meter that takes AC Current, AC/DC Voltage, frequency, resistance and continuity measurements. Perform measures of active, reactive, apparent power and power factor.

Your Price $495.00 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your HT4022 AC TRMS Clamp Meter with Power/Harmonic Measurements

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your HT4022 AC TRMS Clamp Meter with Power/Harmonic Measurements

HT Instruments HT4022 Offers

Features

  • AC TRMS current up to 400 A
  • DC/AC TRMS voltage up to 600 V
  • Resistance and continuity test
  • Frequency with test leads
  • Frequency with jaws
  • Phase rotation Coincidence and with 1 wire
  • Active, reactive, apparent power on single-phase and balanced three phase systems
  • Power factor measure on single-phase and balanced three phase systems
  • Active, reactive, apparent energy on single-phase and balanced three phase systems
  • Harmonic voltage/current up to 25th with THD%
  • Autorange
  • Backlight
  • Auto power off
  • Data hold
  • Low battery indication

Applications

  • Plant maintenance
  • Industrial troubleshooting
  • Non-Linear loads
  • Frequency driven motors
  • PCs

HT Instruments HT4022 Specifications

DC Voltage
Range 1.6 to 599.9 V
Resolution 0.1 V
Accuracy ±(1.0%rdg + 3gt)
Overload Protection 600 V RMS
AC Voltage (TRMS)
Range 1.6 to 599.9 V
Resolution 0.1 V
Accuracy 40 to 200 Hz: ±(1.0%rdg + 3gt)
200 to 400 Hz: ±(5.0%rdg + 3gt)
Overload Protection 600 V RMS
AC Current (TRMS)
Range 0.0 to 399.9 A
Resolution 0.1 A
Accuracy 40 to 200 Hz: ±(1.0%rdg + 3gt)
200 to 400 Hz: ±(5.0%rdg + 3gt)
Overload Protection 600 A RMS
Click here for complete specifications on the HT Instruments HT4022

What's included with the HT Instruments HT4022

  • AC TRMS Clamp Meter
  • Calibration Certificate
  • Couple of Test Leads
  • Couple of Alligator Clips
  • Rubber Cup for Test Lead Holder
  • 2 x 1.5 V Batteries
  • Carrying Bag
  • Manual
