The 61-347 Digital Multimeter includes measurement capabilities like AC/DC voltage, AC/DC current, resistance, temperature, capacitance, and frequency. This particular multimeter is also a True RMS multimeter, providing accurate readings even in noisy environments.
The 61-347 Digital Multimeter includes measurement capabilities like AC/DC voltage, AC/DC current, resistance, temperature, capacitance, and frequency. This particular multimeter is also a True RMS multimeter, providing accurate readings even in noisy environments.

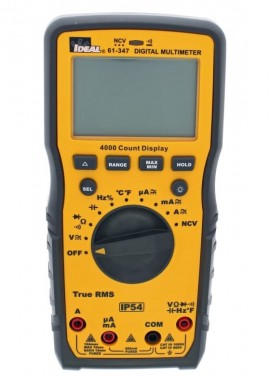

The IDEAL 61-347 Digital Multi Meter is a CAT IV 600 CAT III 1000V rated auto ranging true root mean square (TRMS) digital multi meter that measures up to 10 Amps AC and DC current via the test leads in series with the load. It measures up to 1000V AC and DC, LoZ (low impedance) AC V, frequency, resistance, continuity, capacitance, and diodes via test-leads (included) and measures temperature (⁰F/⁰C) via a K-Type thermocouple (included). It's capable of detecting the presence of voltage between 40V to 600V via a non-contact sensor in the top center of the meter. It's display can be backlit. The unit uses an illuminated red LED in the center of the meter and emits audible tones to notify when voltage is above 30 volts, when continuity is detected and when the NCV senses voltage within its set range. The rubber boot has two probe storage points, has built-in probe tip holders to allow measurements while holding the meter in one hand and the second lead in the other hand. The meter has a hanging strap mount (compatible with all other IDEAL meters with this feature) that allows for a hanging strap (sold separately) to be attached to the meter so it can be hung from a nail, screw or magnetic surface. An industrial grade over molding enhances grip and drop protection. This meter features HOLD, MIN/MAX, Relative, Range, and selectable Auto Power Off functions. The meter comes with 3 1.5V AAA Batteries and an easy open, fully accessible storage pouch with a belt loop that allows for meter, probes and thermocouple storage.
Features
| CAT Rating (Safety) | CAT IV 600V | CAT III 1000V |
| Listing | cULus, CE, RCM |
| Drop Protection | 6.6 ft. (2m) |
| Ingress Protection | IP52 |
| AC Voltage (Volts) | 1000V |
| DC Voltage (Volts) | 1000V |
| AC Current (Amps) | 10A |
| DC Current (Amps) | 10A |
| Ohms (Resistance) | 60MΩ |
| AC Millivolts | 6000 |
| DC Millivolts | 6000 |
| DC Milliamps | 6000 |
| AC Microamps | 6000 |
| DC Microamps | 6000 |
Click on a category to view a selection of compatible accessories with the IDEAL Industries 61-347 Test-Pro Handheld Digital Multimeter.
| CAT Rating (Safety) | CAT IV 600V | CAT III 1000V |
| Listing | cULus, CE, RCM |
| Drop Protection | 6.6 ft. (2m) |
| Ingress Protection | IP52 |
| AC Voltage (Volts) | 1000V |
| DC Voltage (Volts) | 1000V |
| AC Current (Amps) | 10A |
| DC Current (Amps) | 10A |
| Ohms (Resistance) | 60MΩ |
| AC Millivolts | 6000 |
| DC Millivolts | 6000 |
| DC Milliamps | 6000 |
| AC Microamps | 6000 |
| DC Microamps | 6000 |
Click on a category to view a selection of compatible accessories with the IDEAL Industries 61-347 Test-Pro Handheld Digital Multimeter.
