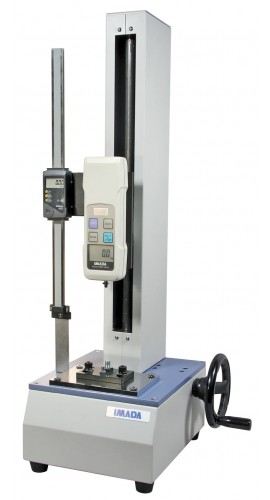

IMADA HV-220 Hand Wheel Test Stand, 220 lbf

Model: HV-220

Vertical wheel operated force measurement test stands feature a compact design with several ranges. One stand for both compression (push) and tension (pull) tests.

Vertical wheel operated force measurement test stands feature a compact design with several ranges. One stand for both compression (push) and tension (pull) tests.

Your Price $2118.00 USD
Availability 2 to 3 Weeks
Quantity

IMADA HV-220 Offers

Features

  • Hand wheel offers precise movement that is ideal for force measurement that requires relatively consistent speed and maximum gauge control
  • Rack and pinion design allows the force gauge to remain stationary when the wheel is released
  • Each rotation of the wheel will move the carriage of the test stand ~2mm
  • Optional digital distance meter is available on all models (add -S to the model number)
  • Force gauge must be ordered separately

IMADA HV-220 Specifications

Capacity220 lbf
Stroke11.3" (288mm)
Clearance9" (229mm)
Travel2mm

What's included with the IMADA HV-220

  • IMADA HV-220 Hand Wheel Test Stand, 220 lbf

Ask a question about IMADA HV-220 Hand Wheel Test Stand, 220 lbf

Customer Reviews for the IMADA HV-220

IMADA HV-220 Offers

Features

  • Hand wheel offers precise movement that is ideal for force measurement that requires relatively consistent speed and maximum gauge control
  • Rack and pinion design allows the force gauge to remain stationary when the wheel is released
  • Each rotation of the wheel will move the carriage of the test stand ~2mm
  • Optional digital distance meter is available on all models (add -S to the model number)
  • Force gauge must be ordered separately
Show More...

IMADA HV-220 Specifications

Capacity220 lbf
Stroke11.3" (288mm)
Clearance9" (229mm)
Travel2mm

What's included with the IMADA HV-220

  • IMADA HV-220 Hand Wheel Test Stand, 220 lbf
